MAGNETO

RM-Z450 2005 (K5) USA (E03) RMZ450 RM Z450

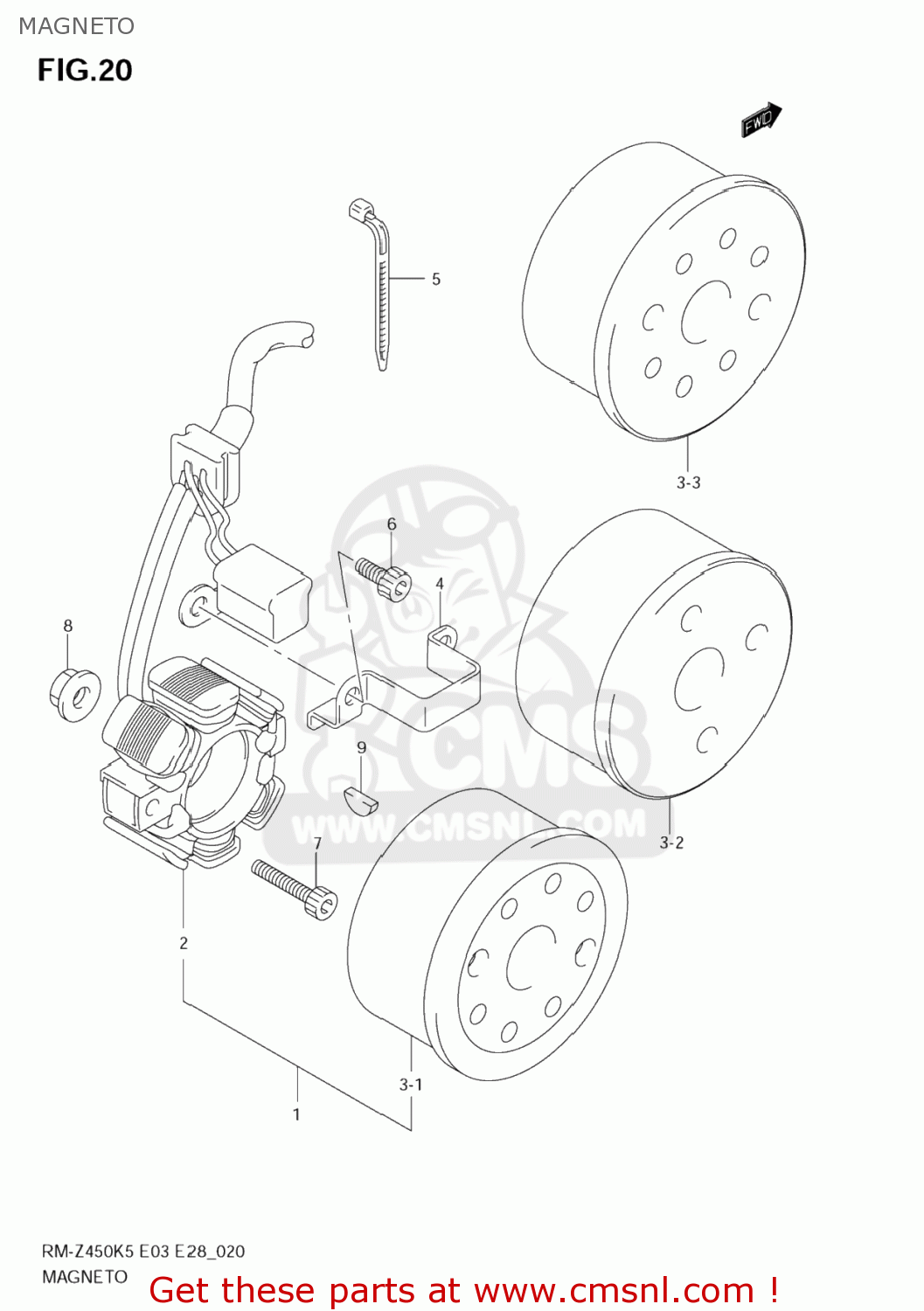

Magneto diagram RM-Z450 2005 (K5) USA (E03) RMZ450 RM Z450

prices are in EUR

ref

part #

description

quantity

1-1

3210035G00
ref: 1-1

MAGNETO ASSY

€ 435.50

1-2

3210035G10
ref: 1-2

MAGNETO ASSY

€ 391.50

1-3

3210035G20
ref: 1-3

MAGNETO ASSY

€ 291.00

3210135G00
ref: 2

STARTER ASSY

€ 492.00

3-1

3210235G00
ref: 3-1

ROTOR ASSY

€ 203.00

3-2

3210235G10
ref: 3-2

ROTOR ASSY

€ 228.50

3-3

3210235G20
ref: 3-3

ROTOR ASSY

€ 172.00

3237135G00
ref: 4

CLAMP,MAGNETO LEAD

€ 5.00

0940714403
ref: 5

CLAMP(L:125)

€ 2.50

0713005123
ref: 6
07130-0512B

BOLT

€ 2.50

0910605029
ref: 7

BOLT(5X25)

€ 4.00

0831610123
ref: 8
08316-1012A

NUT

€ 2.50

0834131039
ref: 9

KEY

€ 2.00
