FUEL COCK

RM-Z450 2005 (K5) USA (E03) RMZ450 RM Z450

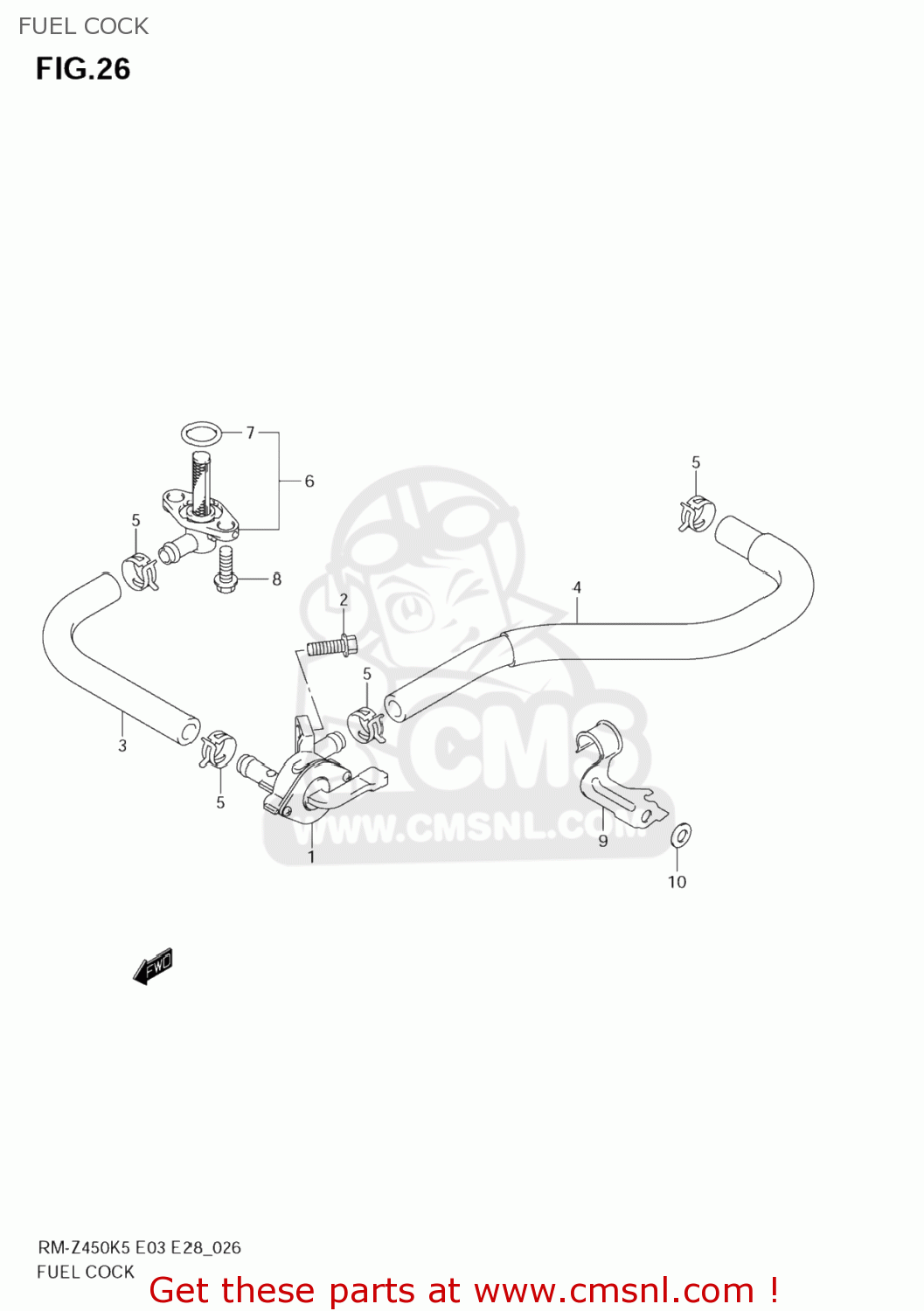

Fuel cock diagram RM-Z450 2005 (K5) USA (E03) RMZ450 RM Z450

prices are in EUR

ref

part #

description

quantity

4430035G00
ref: 1

COCK ASSY,FUEL

€ 69.50

0910306234
ref: 2

BOLT(6X16)

€ 2.50

3-1

4442135G00
ref: 3-1
44421-35G11

HOSE,FUEL NO.1

€ 7.00

3-2

4442135G10
ref: 3-2
44421-35G11

HOSE,FUEL NO.1

€ 7.00

3-3

4442135G11
ref: 3-3

HOSE,FUEL NO.1

€ 7.00

4-1

4442235G00
ref: 4-1
44422-35G11

HOSE COMP,FUEL

€ 14.00

4-2

4442235G10
ref: 4-2
44422-35G11

HOSE,FUEL NO.2

€ 14.00

4-3

4442235G11
ref: 4-3

HOSE,FUEL NO.2

€ 14.00

0940111415
ref: 5

CLIP

€ 2.50

4440035G00
ref: 6

JOINT ASSY,FUEL HOSE

€ 41.00

4441335G00
ref: 7

O RING,FUEL HOSE JOINT

€ 3.50

0910306234
ref: 8

BOLT(6X16)

€ 2.50

4446235G00
ref: 9

CLAMP,FUEL HOSE

€ 7.00

0916410008
ref: 10

WASHER

€ 1.50
