CRANKCASE COVER

AX100 1996 (T) GENERAL EXPORT (E01) / P9

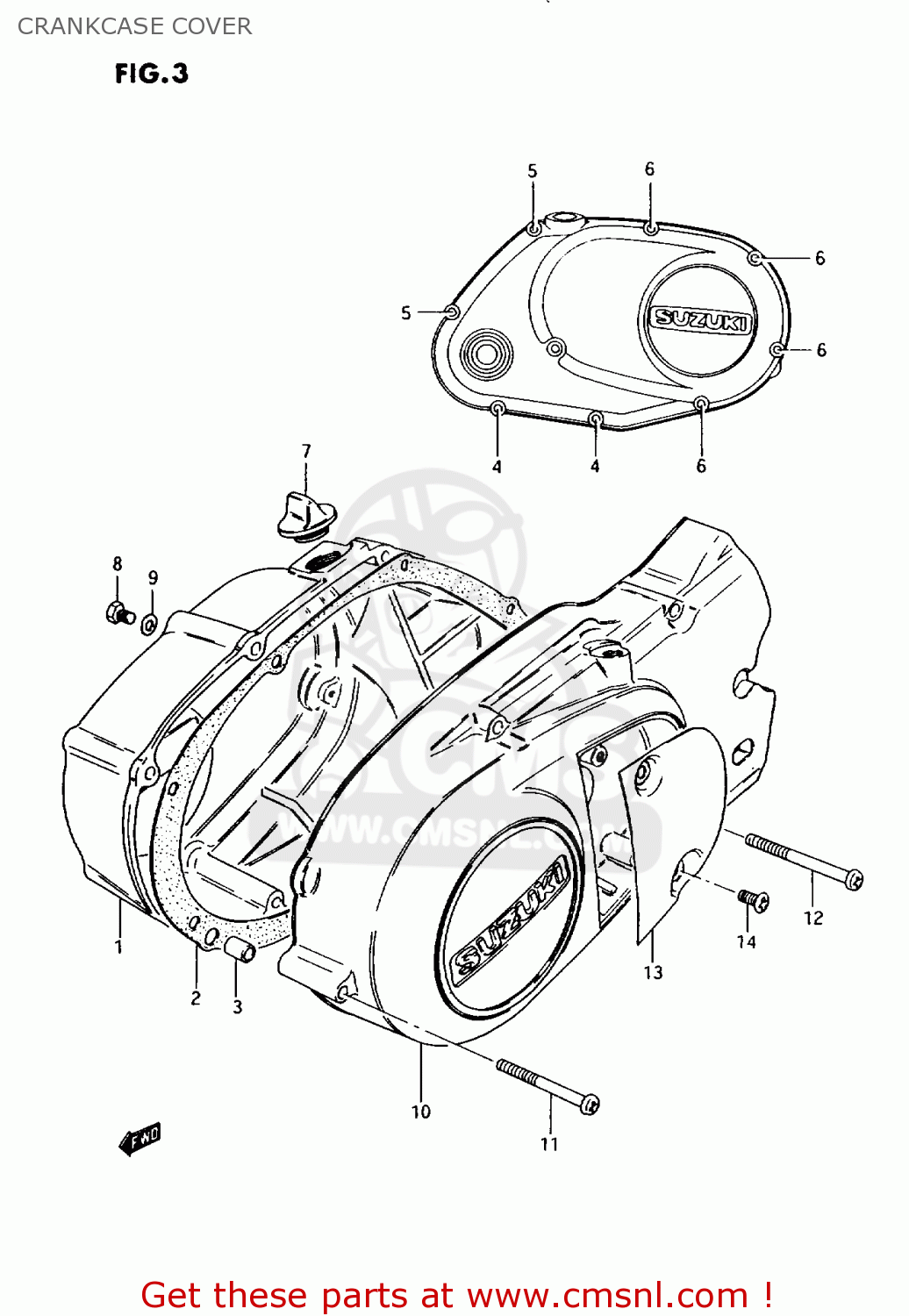

Crankcase cover diagram AX100 1996 (T) GENERAL EXPORT (E01) / P9

prices are in EUR

ref

part #

description

quantity

1134123402
ref: 1

COVER,CLUTCH

€ 0.00

1148223410
ref: 2

GASKET,CLUTCH COVER (NAS)

€ 15.50

0421109129
ref: 3

PIN

€ 2.00

0211206307
ref: 4

SCREW

€ 2.50

0211206357
ref: 5

SCREW

€ 2.50

0211206807
ref: 6

SCREW

€ 3.00

0920020810
ref: 7

PLUG SET

€ 8.00

0912806004
ref: 8

SCREW(6X10)

€ 1.50

9-1

0916806001
ref: 9-1
~E.NO. 1008238

GASKET(6.2X11X1) (NAS)

€ 1.50

9-2

0916806004
ref: 9-2
E.NO. 1008239~

GASKET(6.2X11X1).2 (NAS)

€ 1.50

1135123403
ref: 10

COVER,MAGNETO

€ 0.00

0211205457
ref: 11

SCREW

€ 1.50

0211205558
ref: 12

SCREW

€ 2.50

1138723403
ref: 13

CAP,CLUTCH RELEASE ADJUST

€ 0.00

0212205123
ref: 14

SCREW

€ 2.00
