CRANKCASE

AX100 1996 (T) GENERAL EXPORT (E01) / P9

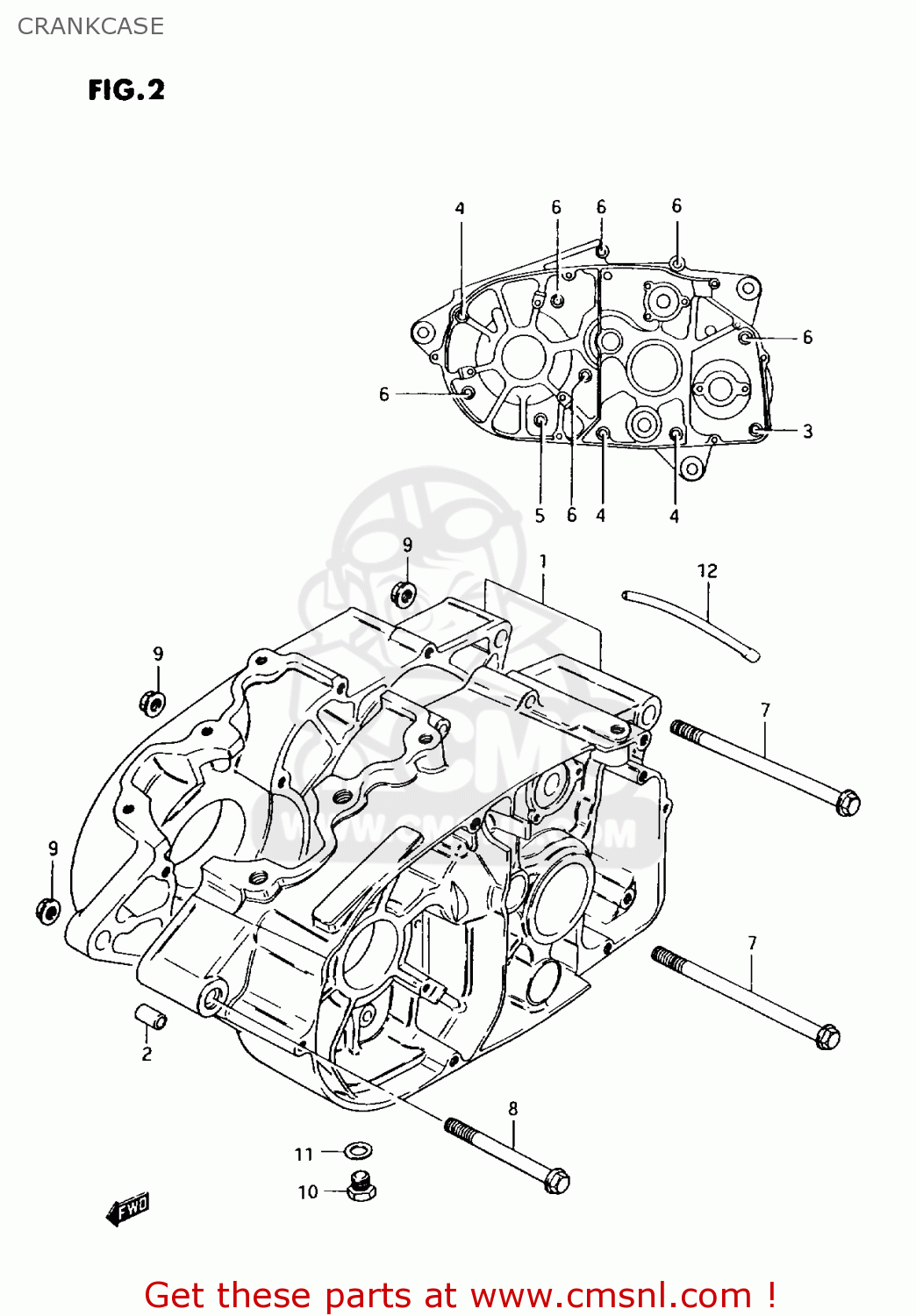

Crankcase diagram AX100 1996 (T) GENERAL EXPORT (E01) / P9

CRANKCASE AX100 1996 (T) GENERAL EXPORT (E01) / P9

CRANKCASE AX100 1996 (T) GENERAL EXPORT (E01) / P9

prices are in EUR

ref

part #

description

quantity

1

1130023841
ref: 1

CRANKCASE SET

€ 0.00

2

0421109129
ref: 2

PIN

€ 2.00

3

0211206653
ref: 3

SCREW

€ 2.00

4

0211206603
ref: 4

SCREW

€ 2.50

5

0211206553
ref: 5

SCREW

€ 2.00

6

0211206453
ref: 6

SCREW

€ 1.50

7

0910308098
ref: 7

BOLT(8X115)

€ 3.00

8

0910308158
ref: 8

BOLT(8X75)

€ 4.50

9

0831931087
ref: 9

NUT

€ 2.50

10

0924710001
ref: 10

PLUG

€ 3.00

11

0916810002
ref: 11

GASKET(10X14X3.6) (NAS)

€ 2.00

12

1368035000
ref: 12

HOSE,CARBURETOR AIR VENT

€ 7.00
