TURN SIGNAL LAMP (P9)

AX100 1996 (T) GENERAL EXPORT (E01) / P9

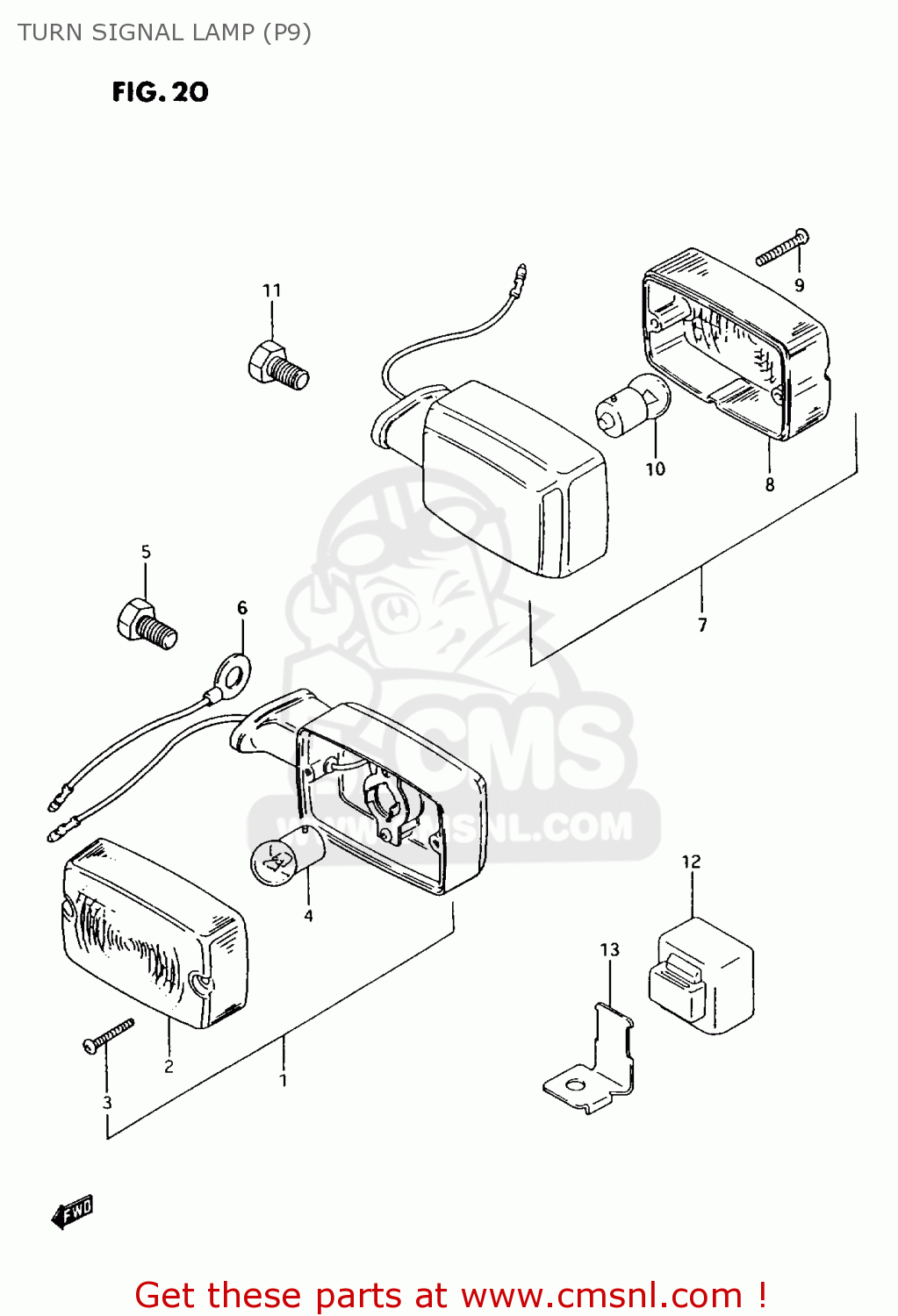

Turn signal lamp (p9) diagram AX100 1996 (T) GENERAL EXPORT (E01) / P9

prices are in EUR

ref

part #

description

quantity

1-1

3560123460
ref: 1-1
PURCHASE LOCALLY

LAMP ASSY, FRONT TURNSIGNAL RH

€ 0.00

1-2

3560223460
ref: 1-2
PURCHASE LOCALLY

LAMP ASSY, FRONT TURNSIGNAL LH

€ 0.00

3561235300
ref: 2

LENS

€ 7.00

0211203258
ref: 3

SCREW

€ 1.50

0947106021
ref: 4

BULB(6V8W,STANLEY,A4115)

€ 3.50

0157008163
ref: 5

BOLT, UPPER

€ 2.00

3666033000
ref: 6

LEAD WIRE,EARTH

€ 5.00

7-1

3560323460
ref: 7-1
PURCHASE LOCALLY

LAMP ASSY, REAR TURNSIGNAL RH

€ 0.00

7-2

3560423460
ref: 7-2
PURCHASE LOCALLY

LAMP ASSY, REAR TURNSIGNAL LH

€ 0.00

3561235300
ref: 8

LENS

€ 7.00

0211203258
ref: 9

SCREW

€ 1.50

0947106021
ref: 10

BULB(6V8W,STANLEY,A4115)

€ 3.50

0157008163
ref: 11

BOLT, UPPER

€ 2.00

3861009400
ref: 12

RELAY,TURN SIGNAL

€ 49.50

3862123400
ref: 13

BRACKET,TURN SIGNAL RELAY

€ 0.00

TURN SIGNAL LAMP (P9)

all assemblies
