FRAME

AX100 1996 (T) GENERAL EXPORT (E01) / P9

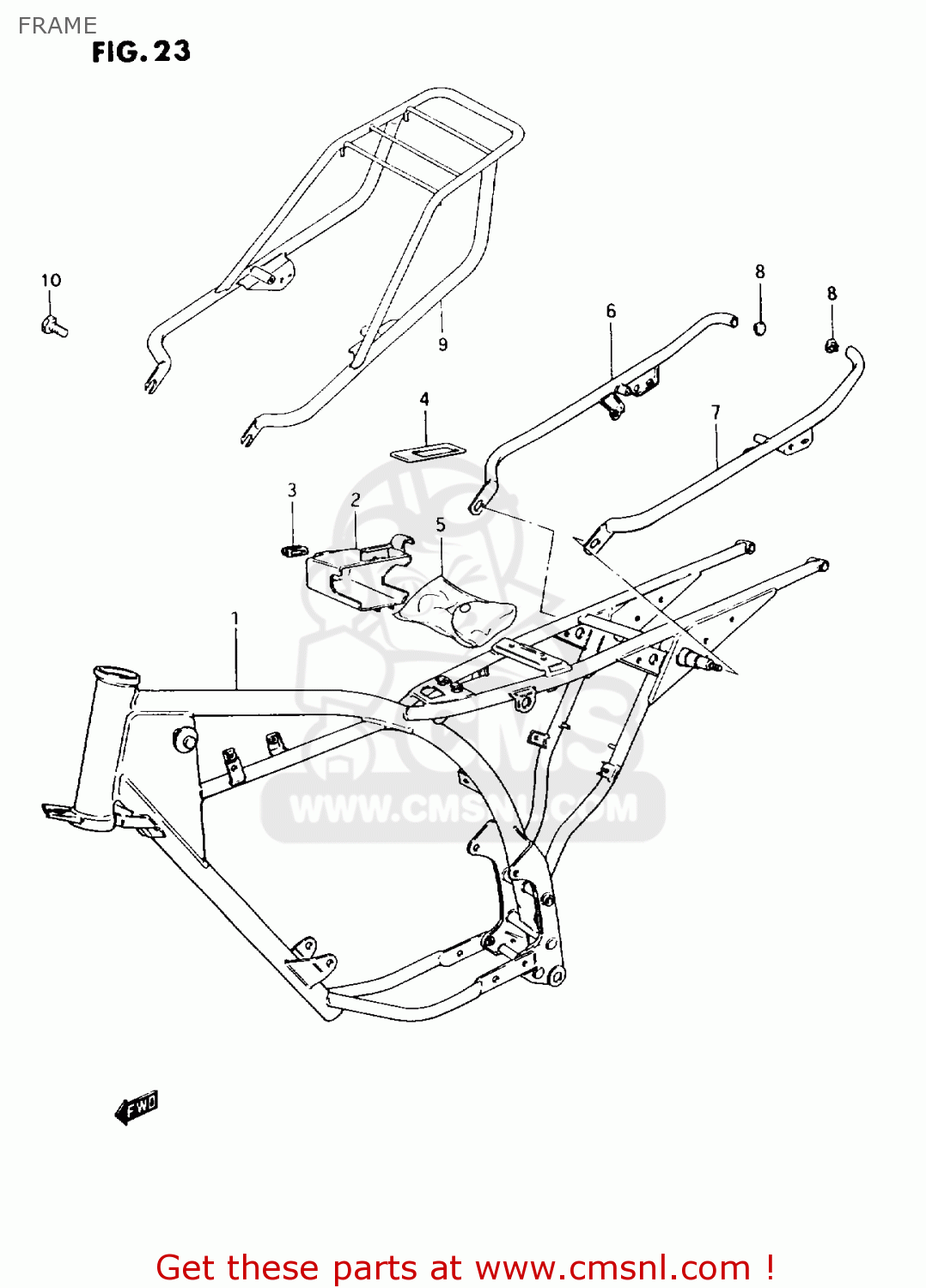

Frame diagram AX100 1996 (T) GENERAL EXPORT (E01) / P9

FRAME AX100 1996 (T) GENERAL EXPORT (E01) / P9

FRAME AX100 1996 (T) GENERAL EXPORT (E01) / P9

prices are in EUR

ref

part #

description

quantity

1-1

4110023452019
ref: 1-1

FRAME (BLACK)

€ 0.00

1-2

4110023470019
ref: 1-2
P36, PUREHASE LOCALL

FRAME (BLACK)

€ 0.00

2

4743023401
ref: 2

HOLDER,TOOL

€ 0.00

3

0932004006
ref: 3

CUSHION

€ 1.50

4

4743523400
ref: 4

BAND,TOOL

€ 0.00

5

0980021031
ref: 5

TOOL ASSY

€ 24.00

6

4161023460
ref: 6
P36

GRIP, FRAME HANDLE RH

€ 0.00

7

4162023460
ref: 7
P36

GRIP, FRAME HANDLE LH

€ 0.00

8

0925011003
ref: 8

CAP(OD:17)

€ 2.50

9-1

4631023451
ref: 9-1

CARRIER

€ 0.00

9-2

4631023451
ref: 9-2
P36, OPT

CARRIER

€ 0.00

10

0158008163
ref: 10

BOLT

€ 3.00
