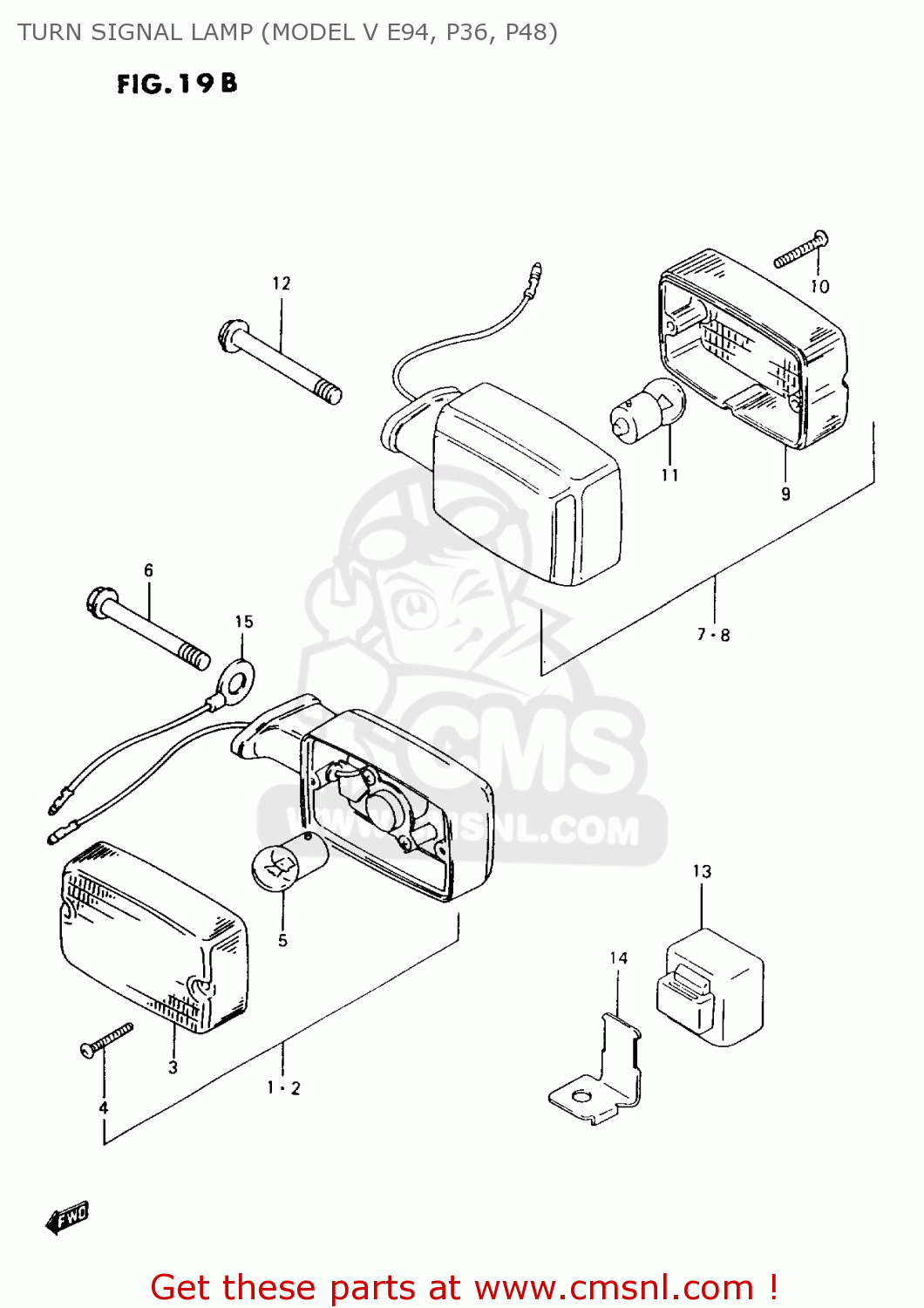

TURN SIGNAL LAMP (MODEL V E94, P36, P48)

AX100 1996 (T) GENERAL EXPORT (E01) / P9

Turn signal lamp (model v e94, p36, p48) diagram AX100 1996 (T) GENERAL EXPORT (E01) / P9

prices are in EUR

ref

part #

description

quantity

3560126401999
ref: 1

LAMP ASSY, FRONT TURNSIGNAL RH

€ 0.00

3560226401999
ref: 2

LAMP ASSY, FRONT TURNSIGNAL LH

€ 2.00

3561235300
ref: 3

LENS

€ 7.00

3562335300
ref: 4

SCREW

€ 2.00

0947106021
ref: 5

BULB(6V8W,STANLEY,A4115)

€ 3.50

0910306084
ref: 6

BOLT 6X25

€ 1.50

3560339201999
ref: 7

LAMP ASSY,RR TURNSIGNAL

€ 2.00

3560439201999
ref: 8

LAMP ASSY,RR TURNSIGNAL,L

€ 0.00

3561235300
ref: 9

LENS

€ 7.00

3562335300
ref: 10

SCREW

€ 2.00

0947106021
ref: 11

BULB(6V8W,STANLEY,A4115)

€ 3.50

0910306064
ref: 12

BOLT(6X60)

€ 2.50

3861009400
ref: 13

RELAY,TURN SIGNAL

€ 49.50

3862123400
ref: 14

BRACKET,TURN SIGNAL RELAY

€ 0.00

3666033000
ref: 15

LEAD WIRE,EARTH

€ 5.00
