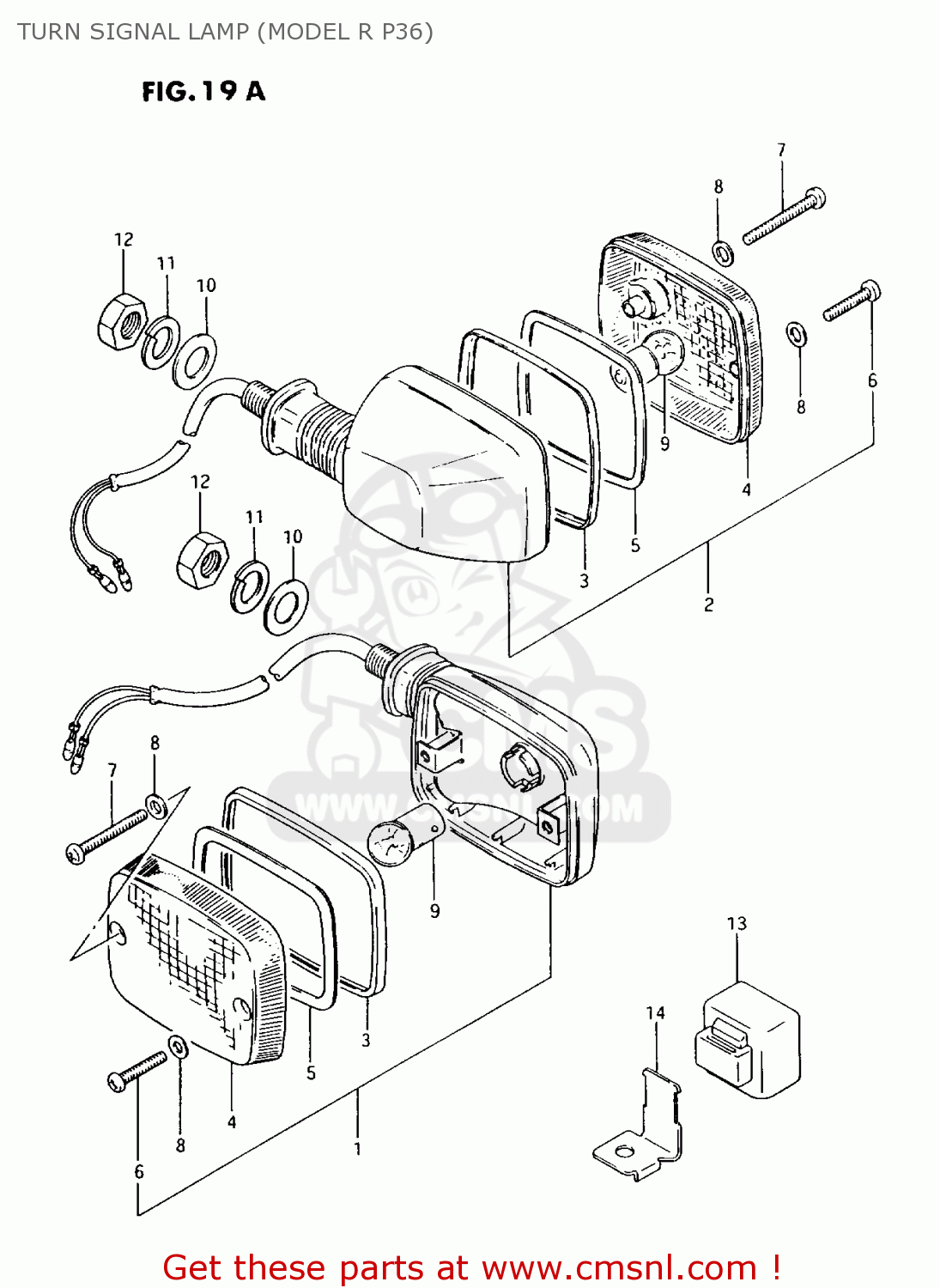

TURN SIGNAL LAMP (MODEL R P36)

AX100 1996 (T) GENERAL EXPORT (E01) / P9

Turn signal lamp (model r p36) diagram AX100 1996 (T) GENERAL EXPORT (E01) / P9

prices are in EUR

ref

part #

description

quantity

3560139314
ref: 1

LAMP ASSY,TURNSIGNAL

€ 43.50

3560339313
ref: 2

LAMP ASSY,RR TURNSIGNAL

€ 0.00

3561149230
ref: 3

RIM

€ 11.00

3561239310
ref: 4

LENS

€ 9.50

3561349230
ref: 5

GASKET (NAS)

€ 5.00

0321104208
ref: 6

SCREW

€ 1.50

0321204359
ref: 7

SCREW

€ 0.50

3562743010
ref: 8

GASKET (NAS)

€ 2.00

0947106021
ref: 9

BULB(6V8W,STANLEY,A4115)

€ 3.50

0916012006
ref: 10

WASHER

€ 2.00

0832101123
ref: 11

LOCK WASHER

€ 2.50

0831000123
ref: 12

NUT

€ 2.50

3861009400
ref: 13

RELAY,TURN SIGNAL

€ 49.50

3862123400
ref: 14

BRACKET,TURN SIGNAL RELAY

€ 0.00

TURN SIGNAL LAMP (MODEL R P36)

all assemblies
