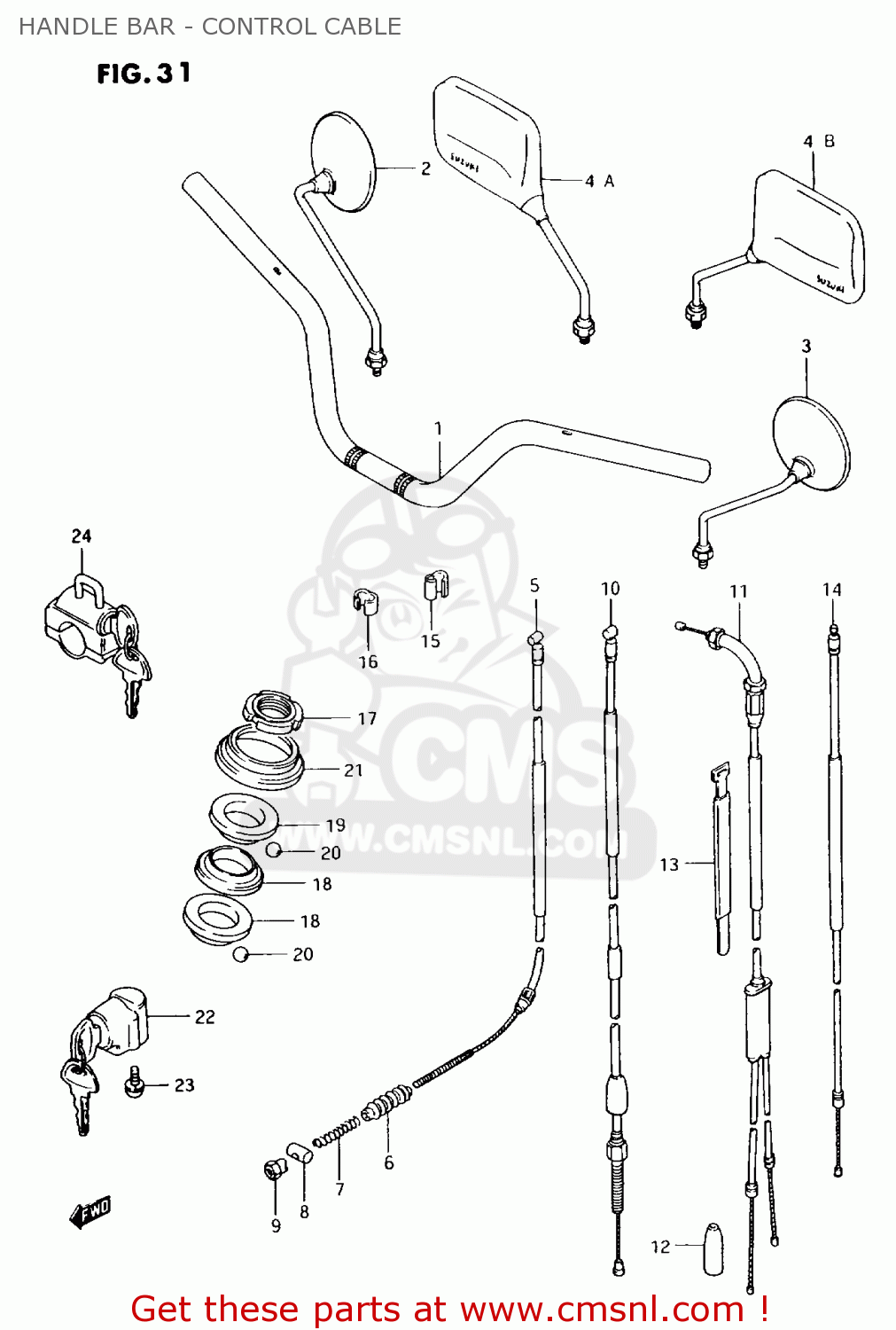

HANDLE BAR - CONTROL CABLE - AX100 1996 (T) GENERAL EXPORT (E01) / P9

ref

part #

description

quantity

1

5611123401
ref: 1

HANDLEBAR

€ 94.00

2

5650023400
ref: 2

MIRROR ASSEMBLY,RIGHT

€ 100.50

3

5660023400
ref: 3

MIRROR ASSEMBLY,LEFT

€ 51.50

4A

5650010B00291
ref: 4A
P36

MIRROR ASSY,RR VIEW,R

€ 29.00

4B

5660010B00291
ref: 4B
P36

MIRROR ASSY, REAR VIEW LH

€ 29.00

5

5810023441
ref: 5

CABLE ASSY,FR BRAKE

€ 24.50

6

0928707001
ref: 6

SEAL,DUST(7X16X75)

€ 2.00

7

0944006003
ref: 7

SPRING

€ 2.00

8

0920910001
ref: 8

PIN,10X19

€ 2.00

9

0915005101
ref: 9

NUT

€ 3.00

10

5820023420
ref: 10

CABLE ASSY,CLUTCH

€ 19.00

11

5830023430
ref: 11

CABLE ASSY,THROTTLE

€ 23.00

12

0928707002
ref: 12

SEAL,DUST(7X18X30)

€ 2.50

13

0940714403
ref: 13

CLAMP(L:125)

€ 2.50

14

5841023420
ref: 14

CABLE,CLUTCH

€ 9.50

15-1

0940800001
ref: 15-1
MODEL R

CLIP

€ 2.50

15-2

0940800025
ref: 15-2
MODEL T/V

CLIP

€ 0.00

16

0940800002
ref: 16

CLIP

€ 2.00

17

5163128000
ref: 17

NUT,STEERING STEM(25X44X10)

€ 12.50

18

5161120002
ref: 18

RACE,STEERING INNER UPR

€ 5.50

19

5162128000
ref: 19

RACE,STEERING OUTER UPR

€ 7.00

20

0611106003
ref: 20

BALL

€ 1.50

21

5164325001
ref: 21

DUST SEAL,STEERING UPR

€ 4.50

22

5191025311
ref: 22

LOCK ASSY,STEERING

€ 22.50

23

0211235123
ref: 23

SCREW

€ 1.50

24

9570004113
ref: 24

LOCK ASSY,HELMET

€ 57.50

HANDLE BAR - CONTROL CABLE

all assemblies
