REAR SHOCK ABSORBER (E94, P9, P48)

AX100 1996 (T) GENERAL EXPORT (E01) / P9

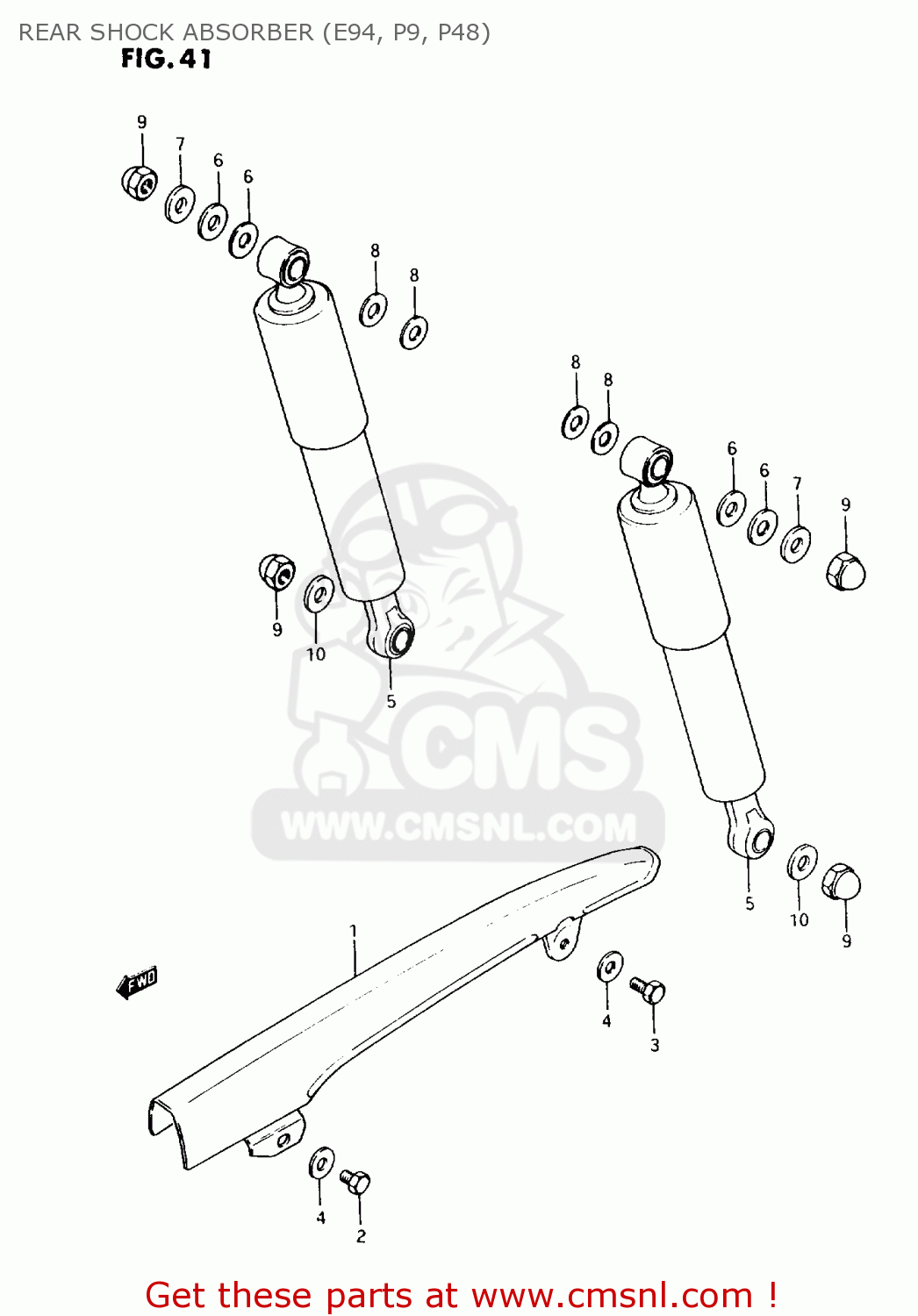

Rear shock absorber (e94, p9, p48) diagram AX100 1996 (T) GENERAL EXPORT (E01) / P9

prices are in EUR

ref

part #

description

quantity

613102346113L
ref: 1

CASE,CHAIN

€ 0.00

0911606014
ref: 2

BOLT(6X6)

€ 2.50

0910006092
ref: 3

BOLT 6X8

€ 2.50

0832201067
ref: 4

WASHER

€ 2.00

5-1

62100234500NF
ref: 5-1
MODEL R

ABSORBER ASSY,REAR SHOCK

€ 0.00

5-2

621002345014C
ref: 5-2
MODEL R

ABSORBER, REAR SHOCK (RED)

€ 0.00

5-3

6210023450019
ref: 5-3
MODEL V

ABSORBER ASSY,RR SHOCK(BLACK)

€ 0.00

5-4

62100234501ZV
ref: 5-4
MODEL V

ABSORBER, REAR SHOCK (GREEN)

€ 0.00

5-5

621002345028V
ref: 5-5
MODEL V

ABSORBER, REAR SHOCK (RED)

€ 0.00

5-6

6210023450
ref: 5-6
P9 PURCHASE LOCALLY

ABSORBER, REAR SHOCK

€ 0.00

0916010001
ref: 6

WASHER

€ 2.00

0916010033
ref: 7

WASHER(10.5X24X3.2)

€ 2.00

0832201127
ref: 8

WASHER

€ 2.00

0831310107
ref: 9

NUT

€ 2.50

0916010033
ref: 10

WASHER(10.5X24X3.2)

€ 2.00
