OIL PUMP
AX100 1996 (T) GENERAL EXPORT (E01) / P9

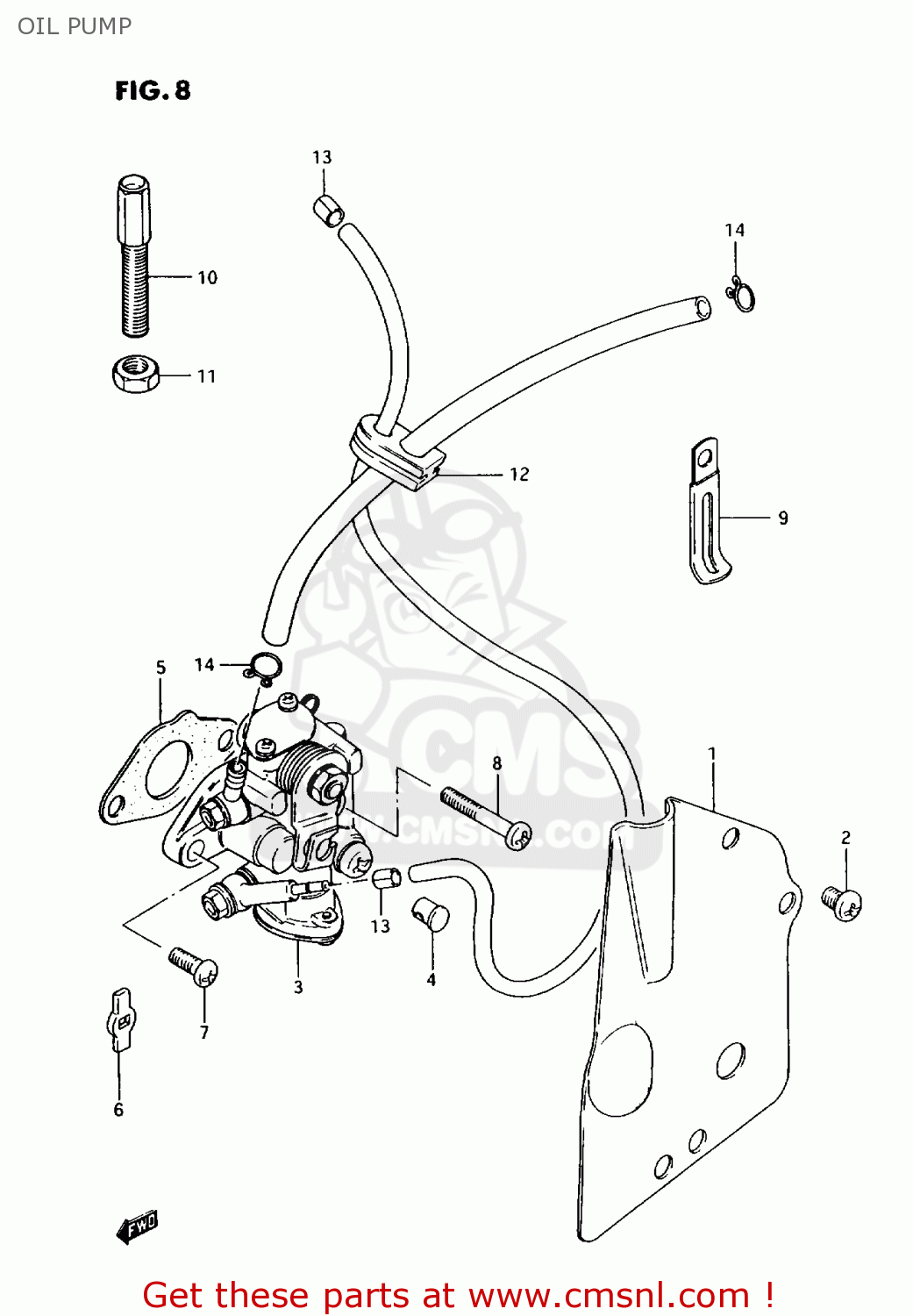

Oil pump diagram AX100 1996 (T) GENERAL EXPORT (E01) / P9
OIL PUMP AX100 1996 (T) GENERAL EXPORT (E01) / P9
×
prices are in EUR
ref
part #
description
quantity
1
1138523403
ref: 1
CAP,OIL PUMP INSPECTION
€ 0.00
2
0211205083
ref: 2
SCREW
€ 2.00
3
1610023404
ref: 3
PUMP ASSY,OIL
€ 165.00
4
1629203112
ref: 4
TERMINAL,CABLE
€ 3.50
5
1673103101
ref: 5
GASKET,OIL PUMP (NAS)
€ 2.50
6
1639105031
ref: 6
PIECE,OIL PUMP DRIVE
€ 2.50
7
0211235163
ref: 7
SCREW
€ 2.50
8
0211235303
ref: 8
SCREW
€ 2.50
9-1
0940406402
ref: 9-1
~E.NO. 574201
CLAMP
€ 2.50
9-2
0940406429
ref: 9-2
E.NO. 574202~
CLAMP(L:45)
€ 2.50
10
0911908014
ref: 10
BOLT
€ 3.50
11
0831000083
ref: 11
NUT
€ 1.50
12
1682023404
ref: 12
HOSE,OIL
€ 0.00
13
0940104401
ref: 13
CLIP
€ 2.50
14
0940108401
ref: 14
CLIP
€ 1.50
