OIL TANK

AX100 1996 (T) GENERAL EXPORT (E01) / P9

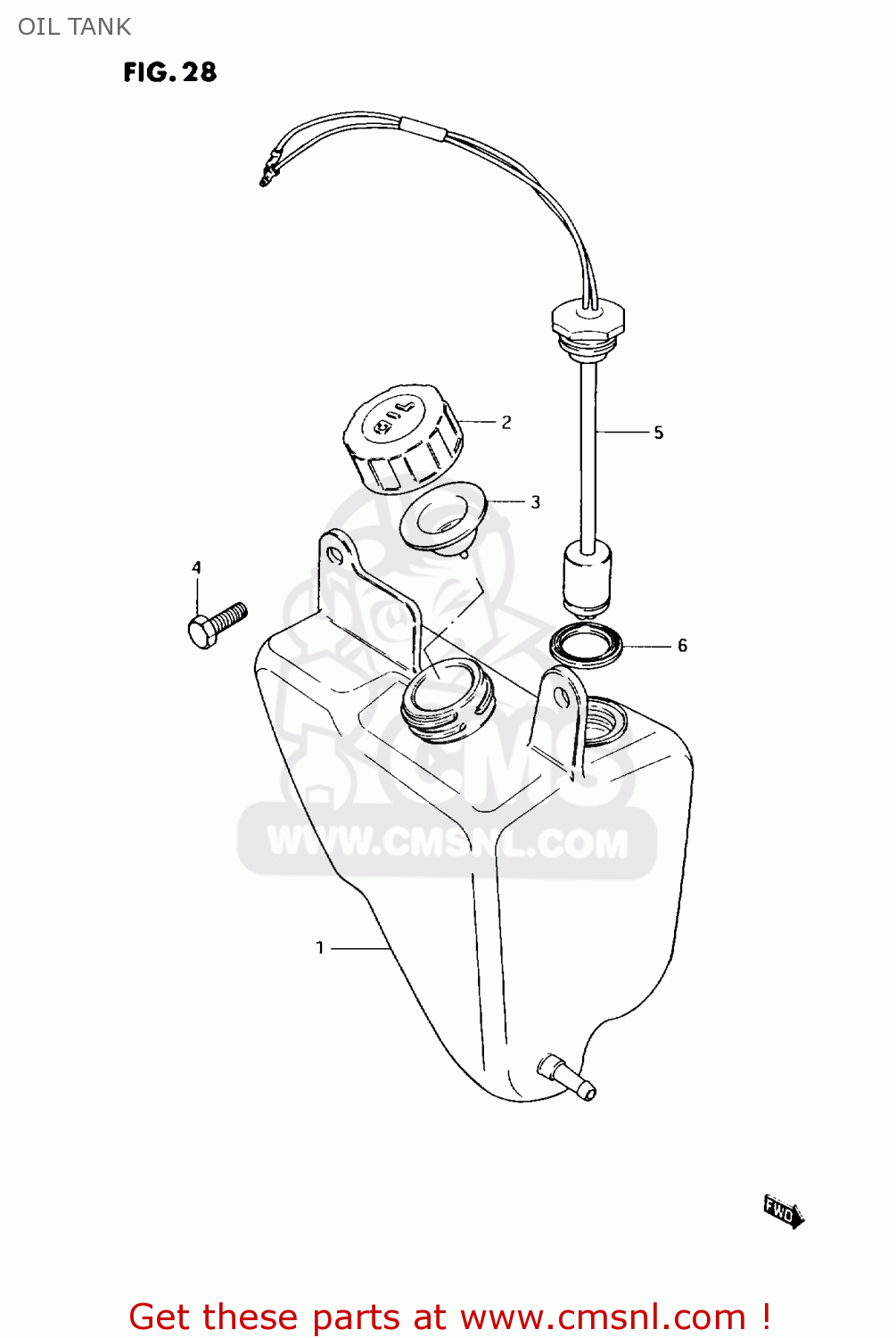

Oil tank diagram AX100 1996 (T) GENERAL EXPORT (E01) / P9

OIL TANK AX100 1996 (T) GENERAL EXPORT (E01) / P9

OIL TANK AX100 1996 (T) GENERAL EXPORT (E01) / P9

prices are in EUR

ref

part #

description

quantity

1

4461123400
ref: 1

TANK,OIL

€ 0.00

2

4465105003
ref: 2

CAP,OIL TANK

€ 4.00

3

4460030832
ref: 3

GASKET SET (NAS)

€ 6.00

4

0911606006
ref: 4

BOLT(6X16)

€ 2.00

5

3788035001
ref: 5
<-37880-13A00

SWITCH ASSY,OIL LEVEL

€ 34.50

6

4464331000
ref: 6

GASKET (NAS)

€ 2.50
