FUEL TANK (MODEL T P9)

AX100 1996 (T) GENERAL EXPORT (E01) / P9

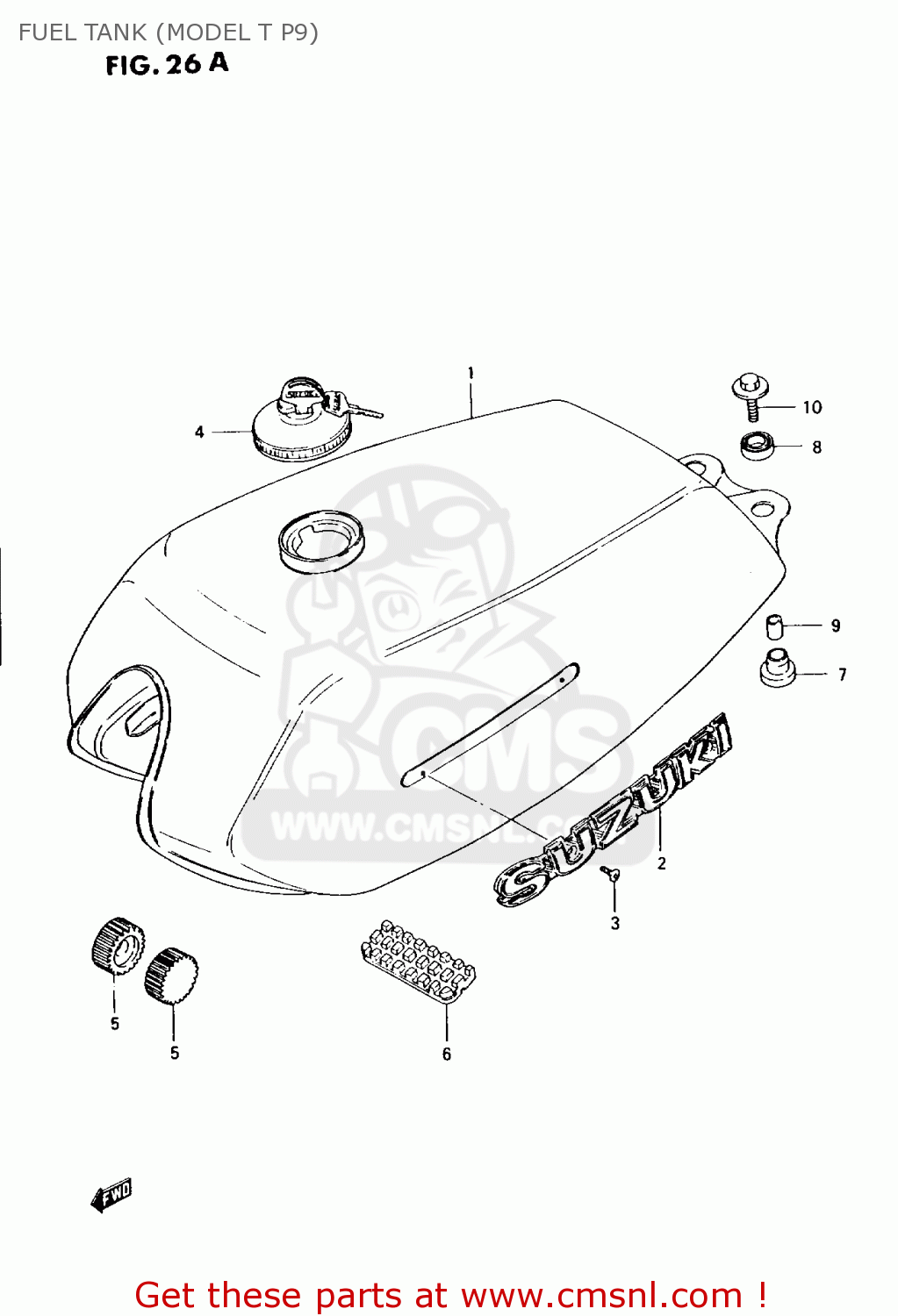

Fuel tank (model t p9) diagram AX100 1996 (T) GENERAL EXPORT (E01) / P9

prices are in EUR

ref

part #

description

quantity

4410023560
ref: 1
PURCHASE LOCALLY

TANK ASSY, FUEL

€ 0.00

6811111400
ref: 2

EMBLEM,FUEL TANK

€ 24.50

0212203063
ref: 3

SCREW

€ 2.00

4420049810
ref: 4

CAP SET,FUEL TANK

€ 121.00

0932910016
ref: 5

CUSHION

€ 3.00

4454147000
ref: 6

CUSHION

€ 8.50

0932010020
ref: 7

CUSHION

€ 4.00

0932014013
ref: 8

CUSHION

€ 3.00

0918006271
ref: 9

SPACER(6.5X9X18)

€ 2.00

0911606172
ref: 10

BOLT(6X30)

€ 2.50
