CAM CHAIN

DR125S 1988 (J) UNITED KINGDOM FRANCE FINLAND (E02 E04 E15)

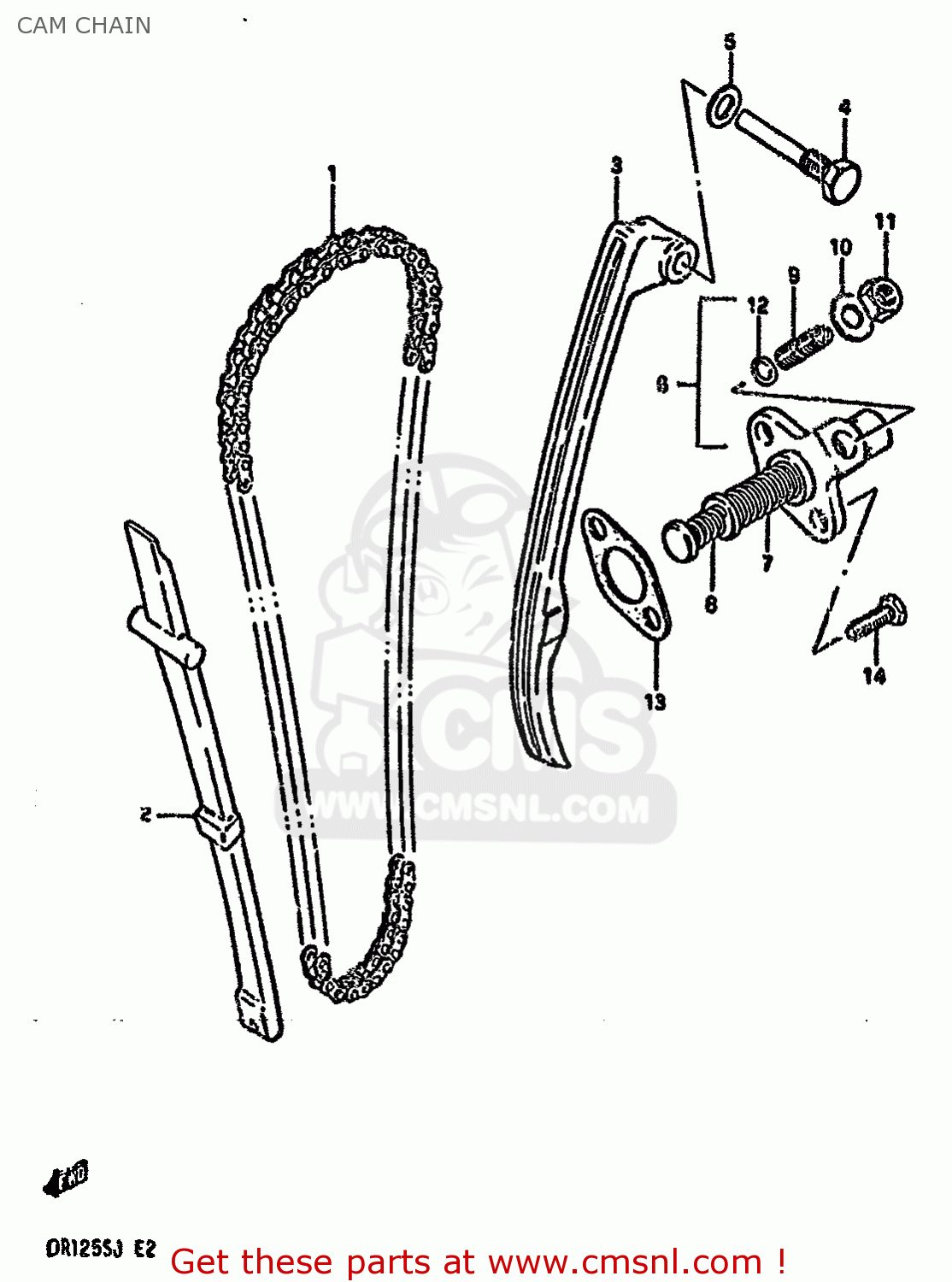

Cam chain diagram DR125S 1988 (J) UNITED KINGDOM FRANCE FINLAND (E02 E04 E15)

prices are in EUR

ref

part #

description

quantity

1276044A00
ref: 1
98LE

CHAIN,CAMSHAFT DRIVE

€ 54.00

1277105200
ref: 2

GUIDE,CAM CHAIN

€ 20.50

1281105200
ref: 3

TENSIONER,CAM CHAIN

€ 24.50

1281232410
ref: 4

BOLT,CAM CHAIN TENSIONER

€ 3.50

0916808008
ref: 5

GASKET 8.2X14X1 (NAS)

€ 1.00

1283005200
ref: 6

ADJUSTER ASSEMBLY,TENSIONER

€ 71.00

0944012030
ref: 7

SPRING

€ 2.00

0944009018
ref: 8

SPRING

€ 2.00

1283845001
ref: 9

SCREW

€ 6.00

0832211084
ref: 10

WASHER

€ 1.50

0831011085
ref: 11

NUT

€ 1.50

0928006005
ref: 12

O RING(D:1.9,ID:5.7)

€ 2.50

1283732400
ref: 13

GASKET,TENSIONER ADJUSTER (NAS)

€ 2.50

0110706205
ref: 14

BOLT

€ 2.00

CAM CHAIN

all assemblies
