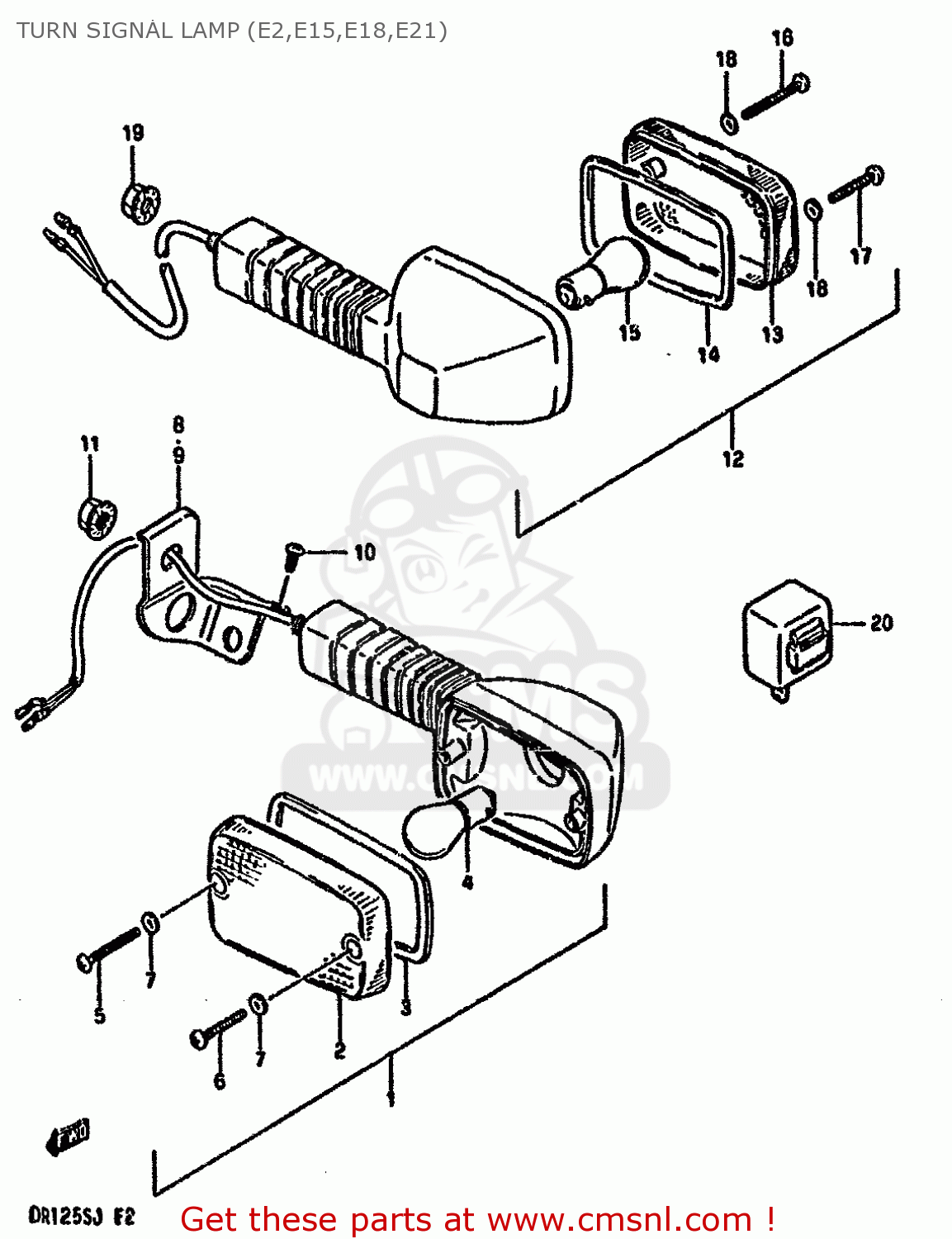

TURN SIGNAL LAMP (E2,E15,E18,E21)

ref

part #

description

quantity

1-1

3560114A23
ref: 1-1
E2~F.NO.101849

LAMP ASSY,FRONT TURN SIGNAL

€ 120.50

1-2

3560114A53999
ref: 1-2
E2 F.NO.101850~

LAMP ASSEMBLY,FRONT TURN SIGNAL

€ 127.50

1-3

3560114A53
ref: 1-3
E15,E18,E21 TO 35601

LAMP ASSY,FRONT TURN SIGNAL

€ 127.50

2

3561202181
ref: 2

LENS,FR

€ 9.00

3

3561348700
ref: 3

GASKET (NAS)

€ 7.50

4

0947112045
ref: 4

BULB(12V21W)

€ 5.00

5

3562302180
ref: 5

SCREW,TURN SIG LENS FITTING

€ 2.00

6

0321104308
ref: 6

SCREW

€ 1.50

7

3562743010
ref: 7

GASKET (NAS)

€ 2.00

8

3567044A00
ref: 8

BRACKET,FRONT TURN SIGNAL,RIGHT

€ 13.50

9

3568044A00
ref: 9

BRACKET,FRONT TURN SIGNAL

€ 13.50

10

0214206108
ref: 10

SCREW

€ 2.00

11

0831626105
ref: 11

NUT

€ 3.50

12-1

3560344A21
ref: 12-1
E2,E15

LAMP ASSY,RR TURNSIGNAL

€ 71.50

12-2

3560344A61
ref: 12-2
E18

LAMP ASSY,REAR TURN SIGNAL

€ 41.00

12-3

3560344A51
ref: 12-3
E21

LAMP,RR TURNSI

€ 93.50

13

3565202181
ref: 13

LENS,RR

€ 8.50

14

3561348700
ref: 14

GASKET (NAS)

€ 7.50

15

0947112045
ref: 15

BULB(12V21W)

€ 5.00

16

3562302180
ref: 16

SCREW,TURN SIG LENS FITTING

€ 2.00

17

0321104308
ref: 17

SCREW

€ 1.50

18

3562743010
ref: 18

GASKET (NAS)

€ 2.00

19

0831626105
ref: 19

NUT

€ 3.50

20

3861031310
ref: 20

RELAY ASSEMBLY,TURN SIGNAL

€ 54.50
