FRONT WHEEL

DR125S 1988 (J) UNITED KINGDOM FRANCE FINLAND (E02 E04 E15)

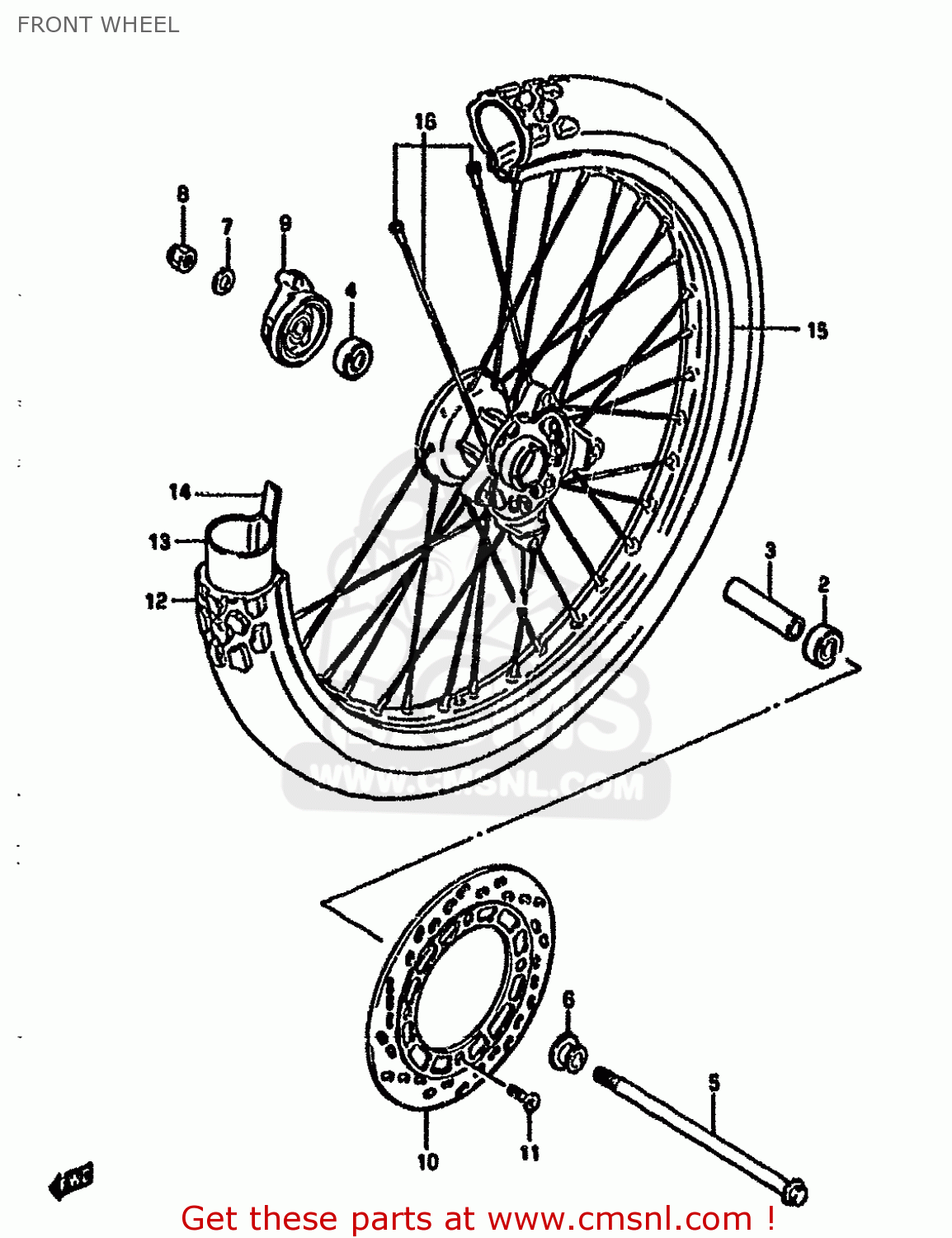

Front wheel diagram DR125S 1988 (J) UNITED KINGDOM FRANCE FINLAND (E02 E04 E15)

prices are in EUR

ref

part #

description

quantity

5411144A00
ref: 1

HUB,FRONT

€ 151.00

0813362017
ref: 2

BEARING (12X32X10)

€ 15.00

0918012109
ref: 3

SPACER (12.6X19X60.5)

€ 8.00

0811362017
ref: 4

BEARING

€ 11.00

5471101A01
ref: 5

AXLE,FRONT

€ 22.00

5474005211
ref: 6

SPACER,FRONT AXLE,RIGHT

€ 9.50

0832211128
ref: 7

WASHER

€ 2.00

0915912008
ref: 8

NUT (12MM)

€ 3.00

5460001A00
ref: 9

BOX ASSY,SPEEDOMETER GEAR

€ 44.50

5922113A00
ref: 10

DISC,BRAKE

€ 134.00

5942103A01
ref: 11

BOLT,BRAKE DISC

€ 4.00

5510044A00
ref: 12

TIRE,FRONT

€ 108.00

5520016510
ref: 13

TUBE

€ 32.50

5526116510
ref: 14

PROTECTOR,WHEEL,INNER

€ 5.00

15-1

5531144A02
ref: 15-1
NIPPLE HOLE 6.3

RIM,FRONT WHEEL

€ 140.00

15-2

5531144A03
ref: 15-2
NIPPLE HOLE 7.0

RIM,FRONT WHEEL

€ 158.50

16-1

5532044A00
ref: 16-1
NIPPLE 0D:5.8

SPOKE SET,FRONT

€ 29.00

16-2

5532044A01
ref: 16-2
NIPPLE 0D:6.5

SPOKE SET,FR WHEEL

€ 39.50

FRONT WHEEL

all assemblies
