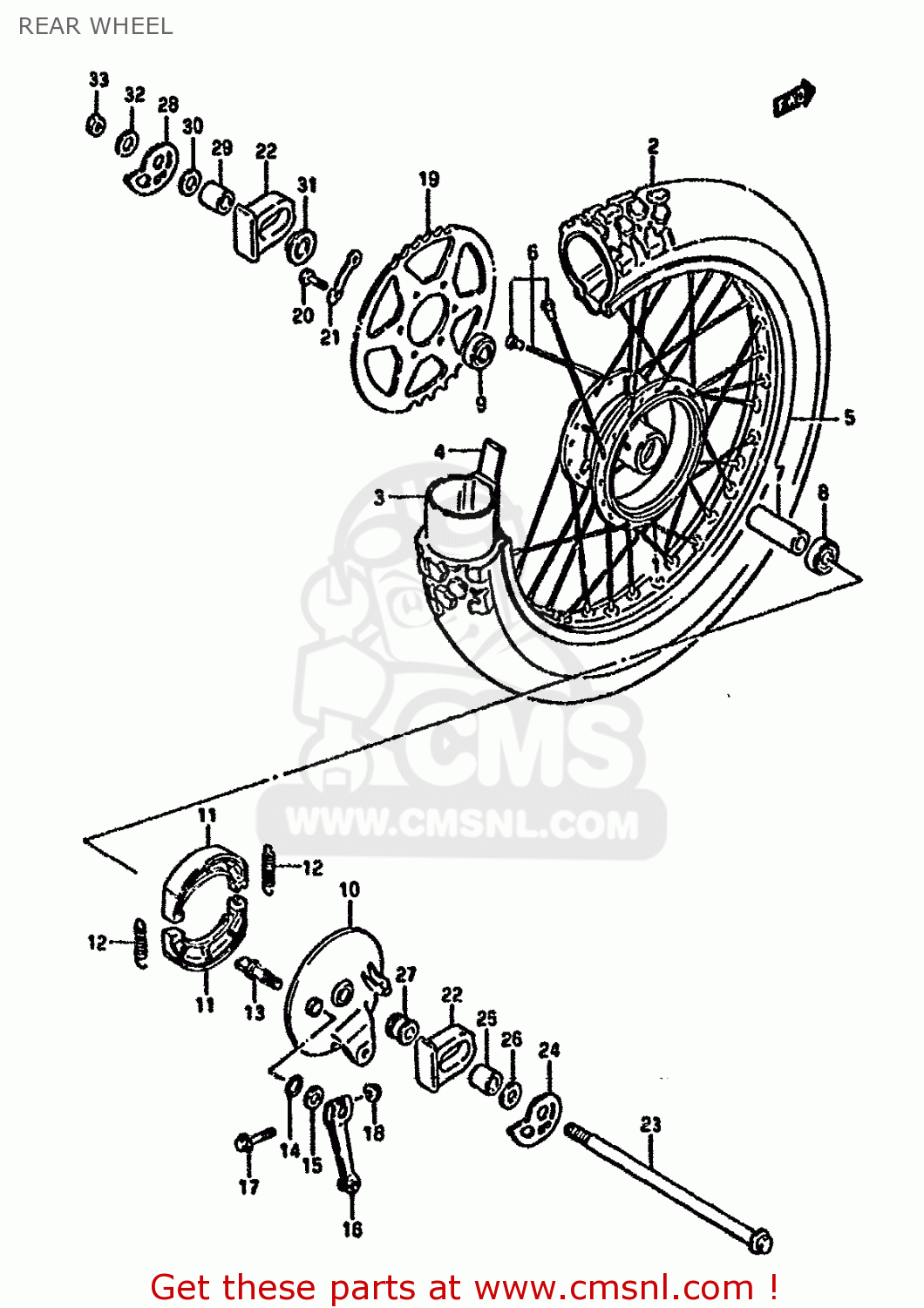

REAR WHEEL

ref

part #

description

quantity

1

6411044A00
ref: 1

HUB,REAR

€ 298.00

2

6510044A00
ref: 2

TIRE

€ 145.50

3

6520033030
ref: 3

TUBE ASSEMBLY,WHEEL,INNER

€ 35.00

4

6526129230
ref: 4

PROTECTOR,WHEEL,INNER

€ 5.50

5

6531144A03
ref: 5

RIM,REAR WHEEL

€ 130.00

6

6532044A02
ref: 6

SPOKE SET,RR

€ 73.00

7

0918015013
ref: 7

SPACER(15.3X21.7X107.5)

€ 7.50

8

0814362027
ref: 8

BEARING

€ 12.50

9

0812363027
ref: 9

BEARING

€ 19.00

10

6421048000
ref: 10

PANEL,RR BRAKE ANCHOR

€ 83.50

11-1

5441037400
ref: 11-1
MODEL F/H,MODEL J E2

SHOE,BRAKE (MCA)

€ 26.00

11-2

5441037410
ref: 11-2
MODEL J E4,E15

SHOE,BRAKE

€ 38.50

12

0944307001
ref: 12

SPRING(L:34)

€ 2.50

13

5444129304
ref: 13

CAM,FRONT BRAKE

€ 13.00

14

0928014003
ref: 14

O-RING (D:2.4 ID:13.8)

€ 3.50

15

0916014001
ref: 15

WASHER (14.5X22X1.6)

€ 2.50

16

6445130501
ref: 16

LEVER,RR BRAKE CAM

€ 15.00

17

0151706408
ref: 17

BOLT

€ 2.50

18

0915906017
ref: 18

NUT

€ 2.50

19

6451144A01
ref: 19

SPROCKET,REAR

€ 65.50

20

0911108065
ref: 20

BOLT(8X30)

€ 3.00

21

0916908013
ref: 21

WASHER

€ 2.50

22

6147044A00
ref: 22

CAP,RR SWINGING ARM

€ 7.50

23

6471144A00
ref: 23

AXLE,REAR

€ 30.00

24

6141142A00
ref: 24

ADJUSTER,CHAIN,R

€ 7.00

25

6141344A00
ref: 25

SPACER,CHAIN ADJUSTER

€ 5.00

26

0916015002
ref: 26

WASHER(15.5X26X2.3)

€ 2.00

27

6474105200
ref: 27

SPACER,RR AXLE,R

€ 6.50

28

6142142A00
ref: 28

ADJUSTER,CHAIN,L

€ 7.00

29

6141344A00
ref: 29

SPACER,CHAIN ADJUSTER

€ 5.00

30

0916015002
ref: 30

WASHER(15.5X26X2.3)

€ 2.00

31

6475005202
ref: 31

SPACER,RR AXLE,L

€ 8.00

32

0916014033
ref: 32

WASHER

€ 3.00

33

0831921148
ref: 33

NUT 14MM

€ 3.00
