STEERING STEM

DR125S 1988 (J) UNITED KINGDOM FRANCE FINLAND (E02 E04 E15)

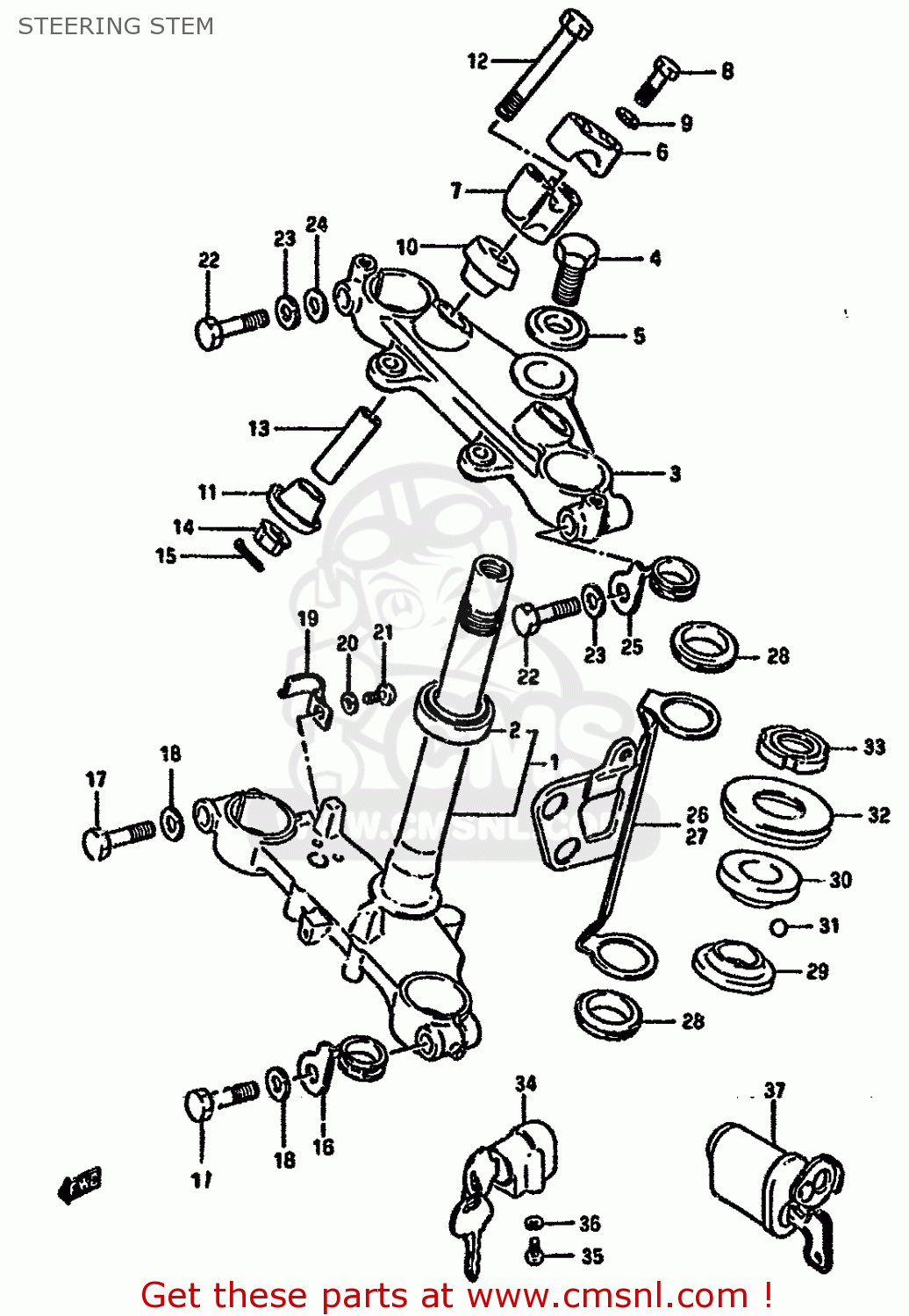

Steering stem diagram DR125S 1988 (J) UNITED KINGDOM FRANCE FINLAND (E02 E04 E15)

STEERING STEM DR125S 1988 (J) UNITED KINGDOM FRANCE FINLAND (E02 E04 E15)
STEERING STEM DR125S 1988 (J) UNITED KINGDOM FRANCE FINLAND (E02 E04 E15)
STEERING STEM DR125S 1988 (J) UNITED KINGDOM FRANCE FINLAND (E02 E04 E15)
prices are in EUR
ref
part #
description
quantity
1
5141044A10291
ref: 1
STEM,STEERING
€ 197.50
2
0926530005
ref: 2
BEARING
0926530005
€ 49.50
3
5131142A00291
ref: 3
HEAD,STEERING STEM
€ 0.00
4
5135242A00
ref: 4
BOLT,STEERING STEM HEAD
5135242A00
€ 7.50
5
5135620510
ref: 5
WASHER
5135620510
€ 6.00
6
5621127200291
ref: 6
HOLDER,HANDLE UPR
5621127200291
€ 13.50
7
5622142A00291
ref: 7
HOLDER,HANDLEBAR LWR
5622142A00291
€ 24.00
8
0110708355
ref: 8
BOLT
€ 3.50
9
0832121084
ref: 9
WASHER,LOCK,8.
0832121084
€ 2.50
10
5624042A00
ref: 10
RUBBER,HANDLE HOLDER
5624042A00
€ 23.00
11
5626042A00
ref: 11
RUBBER,LWR
€ 34.00
12
5622242A00
ref: 12
BOLT
5622242A00
€ 13.00
13
5624342A00
ref: 13
SPACER
5624342A00
€ 6.00
14
0831931107
ref: 14
NUT
0831931107
€ 3.00
15
0411120308
ref: 15
COTTER PIN
€ 1.00
16
5145242A00
ref: 16
CLIP,LOWER
€ 0.00
17
5145142A00
ref: 17
BOLT,INNER TUBE FITTING
€ 0.00
18
0832121104
ref: 18
WASHER,LOCK
0832121104
€ 3.00
19
5145205130
ref: 19
CLIP
5145205130
€ 5.50
20
0832121067
ref: 20
WASHER,LOCK
0832121067
€ 2.50
21
0211206108
ref: 21
SCREW
0211206108
€ 1.50
22
5145142A00
ref: 22
BOLT,INNER TUBE FITTING
€ 0.00
23
0832121104
ref: 23
WASHER,LOCK
0832121104
€ 3.00
24
0832211104
ref: 24
WASHER 10MM
0832211104
€ 2.50
25
5145542A00
ref: 25
CLIP,UPPER
€ 0.00
26
5153042A00
ref: 26
BRACKET,HEADLAMP,R
€ 51.50
27
5154042A00
ref: 27
BRACKET,HEADLAMP,L
€ 51.50
28
5155334280
ref: 28
CUSHION,HEADLAMP HSG BRACKET
5155334280
€ 3.50
29
5161140201
ref: 29
RACE,STEERING INNER (SUJ)
5161140201
€ 8.50
30
5162140200
ref: 30
RACE,STEERING,OUTER,UPPER
5162140200
€ 17.00
31
0611108003
ref: 31
BALL
0611108003
€ 1.50
32
5164340200
ref: 32
SEAL,STEERING UPR DUST
5164340200
€ 7.50
33
5163140200
ref: 33
NUT,STEERING STEM
5163140200
€ 12.00
34
5190030831
ref: 34
LOCK ASSY,STEERING
5190030831
€ 30.00
35
0211205128
ref: 35
SCREW
€ 2.50
36
0832121057
ref: 36
LOCK WASHER
0832121057
€ 2.00
37
5190030901
ref: 37
MODEL H/J E15
LOCK ASSY,STEERING(NEIMAN)
5190030901
€ 168.50
