REAR SWINGING ARM

DR125S 1988 (J) UNITED KINGDOM FRANCE FINLAND (E02 E04 E15)

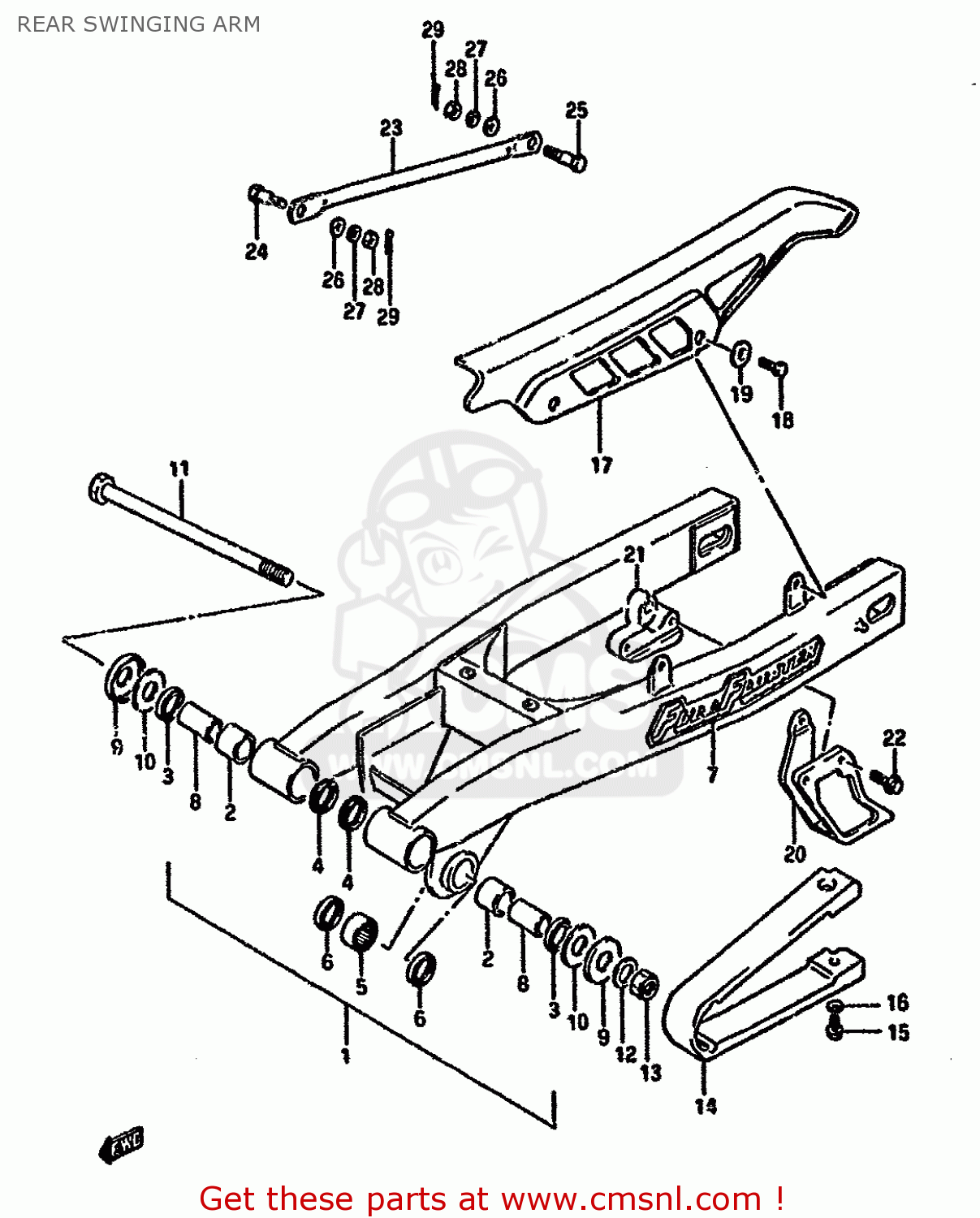

Rear swinging arm diagram DR125S 1988 (J) UNITED KINGDOM FRANCE FINLAND (E02 E04 E15)

REAR SWINGING ARM DR125S 1988 (J) UNITED KINGDOM FRANCE FINLAND (E02 E04 E15)
REAR SWINGING ARM DR125S 1988 (J) UNITED KINGDOM FRANCE FINLAND (E02 E04 E15)
REAR SWINGING ARM DR125S 1988 (J) UNITED KINGDOM FRANCE FINLAND (E02 E04 E15)
prices are in EUR
ref
part #
description
quantity
1
6100044A0413L
ref: 1
SILVER
SWING ARM ASSEMBLY,REAR
€ 356.00
2
6126113700
ref: 2
BUSHING,RR SWGARM PIVOT
6126113700
€ 8.00
3
0928520005
ref: 3
OIL SEAL
0928520005
€ 5.00
4
0928620001
ref: 4
SEAL,OIL(20X27X5)
0928620001
€ 2.50
5
0926320031
ref: 5
BEARING
0926320031
€ 15.50
6
6264744A00
ref: 6
SEAL,CUSHION LEVER OUT DUST
6264744A00
€ 3.50
7
6838144A0097J
ref: 7
EMBLEM
6838144A0097J
€ 4.50
8
6125142A00
ref: 8
SPACER,RR SWGARM PVT
6125142A00
€ 9.50
9
6126240400
ref: 9
COVER,RR SWGARM DUST SEAL
6126240400
€ 4.00
10
0821114322
ref: 10
WASHER
0821114322
€ 2.50
11-1
6121144A00
ref: 11-1
MODEL F,MODEL J E2,E
SHAFT,REAR SWING ARM
€ 28.50
11-2
6121144A10
ref: 11-2
MODEL H,MODEL J E4
SHAFT,REAR SWING ARM
€ 28.50
12-1
0832211145
ref: 12-1
MODEL F
WASHER
€ 2.00
12-2
0832211148
ref: 12-2
MODEL H
WASHER
0832211148
€ 2.00
12-3
0916014043
ref: 12-3
MODEL J E2,E15
WASHER
€ 2.50
12-4
0916014027
ref: 12-4
MODEL J E4
WASHER(14.2X24X2.3)
0916014027
€ 2.50
13-1
0831921145
ref: 13-1
MODEL F,MODEL J E2,E
NUT
€ 3.00
13-2
0831921148
ref: 13-2
MODEL H,MODEL J E4
NUT 14MM
0831921148
€ 3.00
14
6127344A00
ref: 14
BUFFER,CHAIN TOUCH DEFENSE
6127344A00
€ 24.00
15
0151705168
ref: 15
BOLT
€ 1.50
16
0916905012
ref: 16
WASHER
0916905012
€ 3.00
17
6131101A02
ref: 17
CASE,CHAIN
€ 33.50
18
0110706104
ref: 18
BOLT
€ 2.00
19
0916906026
ref: 19
WASHER
0916906026
€ 2.00
20
6134113A00
ref: 20
GUIDE,CHAIN
6134113A00
€ 20.00
21
6134542A00
ref: 21
RUBBER,CHAIN GUIDE
6134542A00
€ 7.50
22
0151706205
ref: 22
BOLT
€ 2.50
23
643114870013L
ref: 23
TORQUE LINK,RR
643114870013L
€ 11.50
24
0911108015
ref: 24
BOLT(8X22)
0911108015
€ 3.00
25
0911108013
ref: 25
BOLT(8X26.5)
0911108013
€ 3.00
26
0832211088
ref: 26
WASHER
0832211088
€ 2.00
27
0832121088
ref: 27
LOCK WASHER
0832121088
€ 2.00
28
0914008008
ref: 28
NUT
0914008008
€ 1.50
29
0411120208
ref: 29
PIN 20X20
0411120208
€ 1.50
