MUFFLER

DR125S 1988 (J) UNITED KINGDOM FRANCE FINLAND (E02 E04 E15)

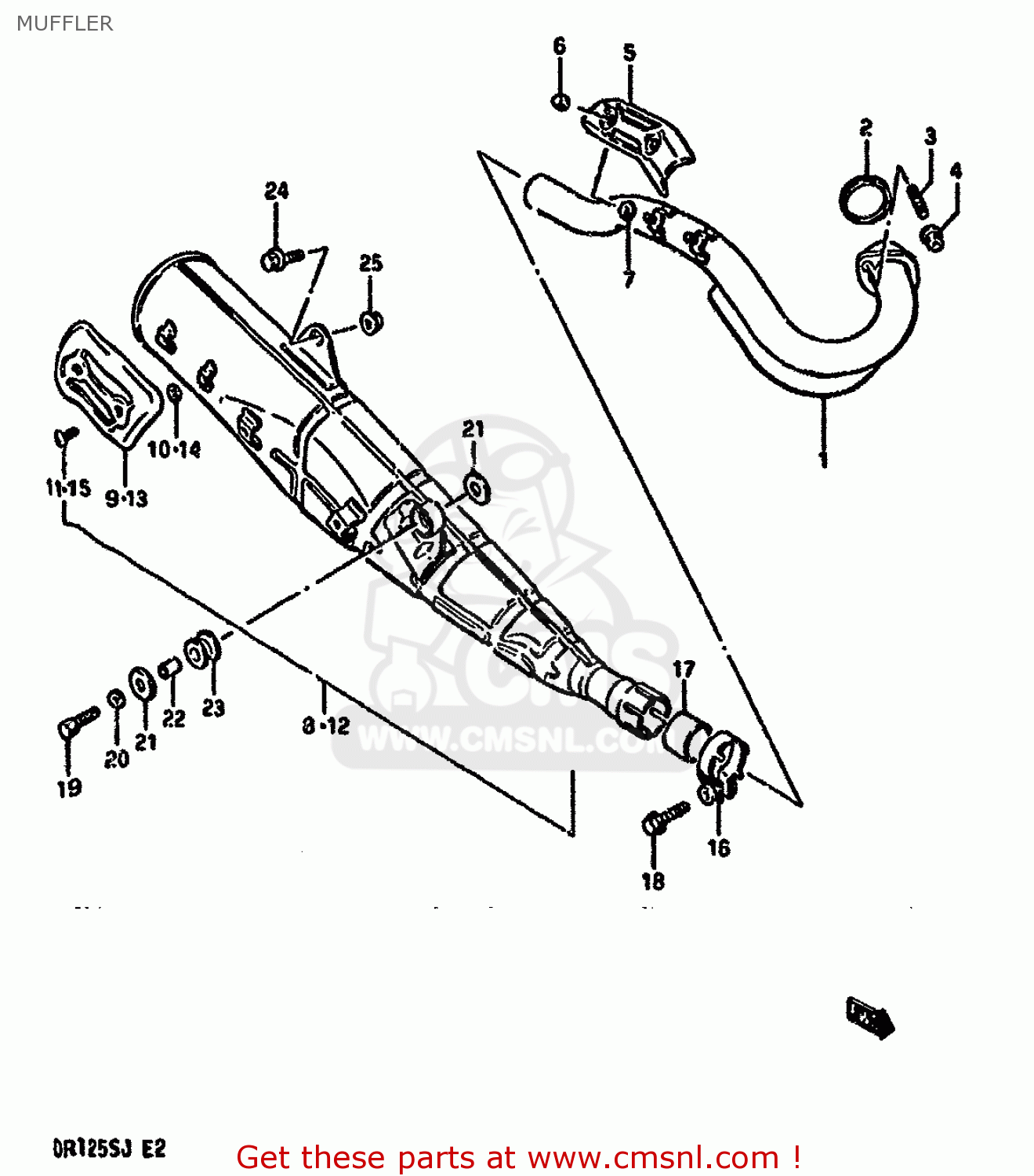

Muffler diagram DR125S 1988 (J) UNITED KINGDOM FRANCE FINLAND (E02 E04 E15)

MUFFLER DR125S 1988 (J) UNITED KINGDOM FRANCE FINLAND (E02 E04 E15)
MUFFLER DR125S 1988 (J) UNITED KINGDOM FRANCE FINLAND (E02 E04 E15)
MUFFLER DR125S 1988 (J) UNITED KINGDOM FRANCE FINLAND (E02 E04 E15)
prices are in EUR
ref
part #
description
quantity
1
1415044A01
ref: 1
PIPE,EXHAUST
1415044A01
€ 68.50
2
1418105020
ref: 2
GASKET,EXHAUST PIPE (NAS)
1418105020
€ 6.50
3
0910808207
ref: 3
BOLT,STUD
0910808207
€ 2.00
4
0831931085
ref: 4
NUT
€ 2.50
5
1418642A01
ref: 5
COVER,EXHAUST PIPE
1418642A01
€ 12.50
6
0915906037
ref: 6
NUT (6MM)
0915906037
€ 2.50
7
0916806022
ref: 7
GASKET (NAS)
€ 2.50
8-1
1430144A01
ref: 8-1
MODEL F E1
MUFFLER ASSY
€ 283.00
8-2
1430144A20
ref: 8-2
MODEL F E2,E4,E18,E2
MUFFLER ASSY
€ 283.00
9
1478142A01
ref: 9
MODEL F
COVER
€ 10.50
10
0916806020
ref: 10
MODEL F
GASKET (NAS)
0916806020
€ 2.00
11
0214206108
ref: 11
MODEL F
SCREW
0214206108
€ 2.00
12-1
1430144A30
ref: 12-1
MODEL H E1
MUFFLER ASSY
€ 283.00
12-2
1430144A40
ref: 12-2
MODEL H E18,E21,E24
MUFFLER ASSY
€ 283.00
12-3
1430144A40
ref: 12-3
MODEL H/J E2,E4,E15
MUFFLER ASSY
€ 283.00
13
1478142A10
ref: 13
MODEL H/J
COVER,MUFFLER
1478142A10
€ 9.00
14
0916806020
ref: 14
MODEL H/J
GASKET (NAS)
0916806020
€ 2.00
15
0214206104
ref: 15
MODEL H/J
SCREW
0214206104
€ 2.00
16
1445905210
ref: 16
CLAMP,MUFFLER CONNECTOR
€ 14.50
17
1477114600
ref: 17
CONNECTOR,MUFFLER
1477114600
€ 18.00
18
0151708304
ref: 18
BOLT
0151708304
€ 3.00
19-1
0110708358
ref: 19-1
MODEL F
BOLT
0110708358
€ 3.50
19-2
0110708355
ref: 19-2
MODEL H/J
BOLT
€ 3.50
20-1
0832121088
ref: 20-1
MODEL F
LOCK WASHER
0832121088
€ 2.00
20-2
0832121084
ref: 20-2
MODEL H/J
WASHER,LOCK,8.
0832121084
€ 2.50
21-1
0916008002
ref: 21-1
MODEL F
WASHER (8.5X29X1.6)
0916008002
€ 2.00
21-2
0916008057
ref: 21-2
MODEL H/J
WASHER (8.5X20X1.6)
0916008057
€ 2.00
22
0918008102
ref: 22
SPACER (8.6X12X17.5)
0918008102
€ 3.00
23
0932012026
ref: 23
CUSHION
0932012026
€ 8.00
24
0910308065
ref: 24
BOLT(8X25)
0910308065
€ 3.50
25
0831616088
ref: 25
NUT
0831616088
€ 2.50
