WIRING HARNESS

DR125S 1988 (J) UNITED KINGDOM FRANCE FINLAND (E02 E04 E15)

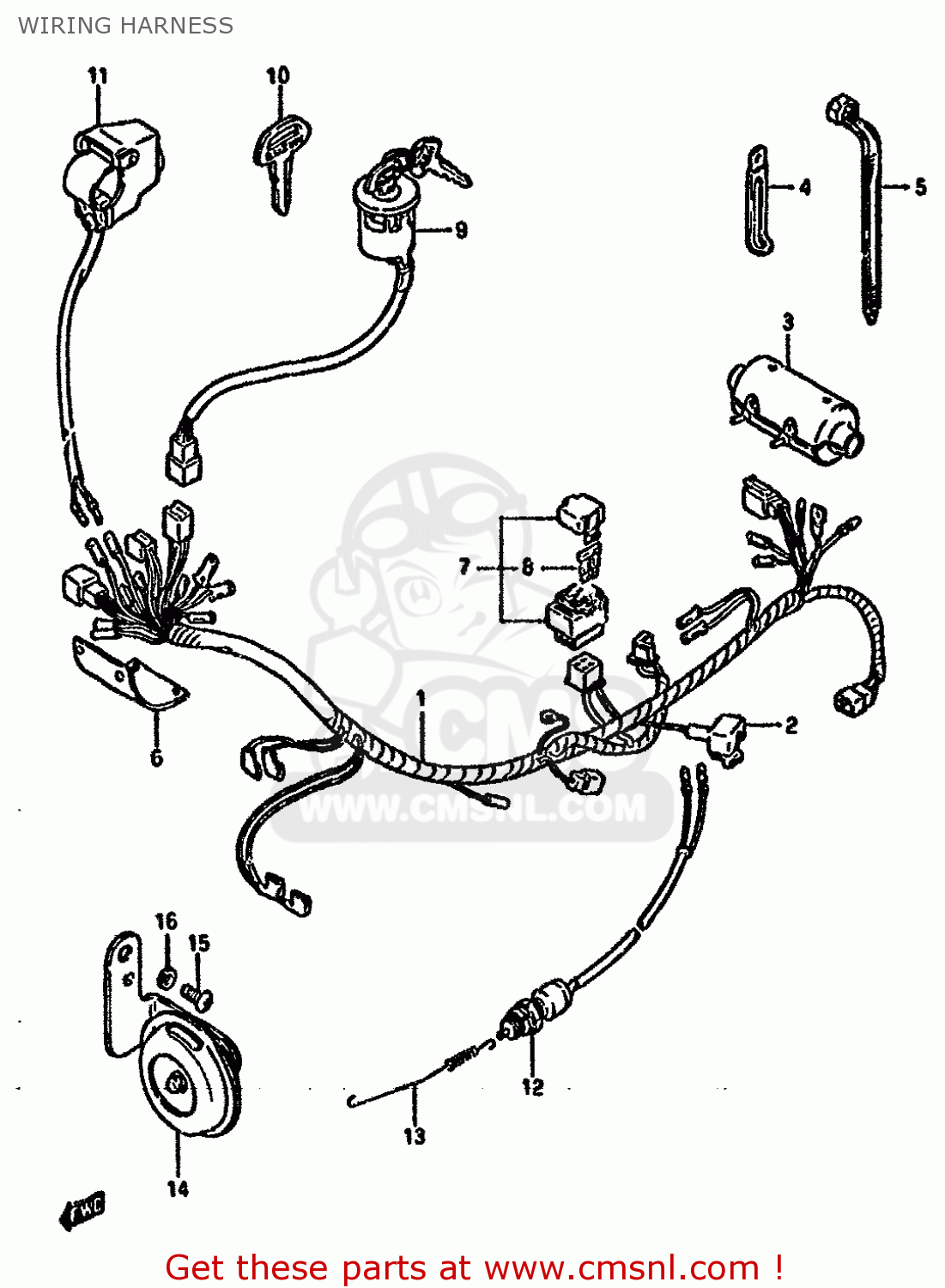

Wiring harness diagram DR125S 1988 (J) UNITED KINGDOM FRANCE FINLAND (E02 E04 E15)

WIRING HARNESS DR125S 1988 (J) UNITED KINGDOM FRANCE FINLAND (E02 E04 E15)
WIRING HARNESS DR125S 1988 (J) UNITED KINGDOM FRANCE FINLAND (E02 E04 E15)
WIRING HARNESS DR125S 1988 (J) UNITED KINGDOM FRANCE FINLAND (E02 E04 E15)
prices are in EUR
ref
part #
description
quantity
1-1
3661044A10
ref: 1-1
E1
HARNESS,WIRING
€ 0.00
1-2
3661044A00
ref: 1-2
E2~F.NO.101849,-3661
HARNESS,WIRING
€ 127.00
1-3
3661044A50
ref: 1-3
E2 F.NO.101850~
HARNESS,WIRING
€ 127.00
1-4
3661044A00
ref: 1-4
E4,E15,E18,E21,E24 T
HARNESS,WIRING
€ 127.00
2
3362444A00
ref: 2
E2,E4,E15,E18,E21,E2
CAP,BATTERY TERMINAL
€ 6.00
3
3661830610
ref: 3
BOOT,WIRING HARNESS
3661830610
€ 9.50
4-1
0940406401
ref: 4-1
CLAMP L:35
0940406401
€ 2.50
4-2
0940406415
ref: 4-2
CLAMP
€ 3.00
5-1
0940714403
ref: 5-1
CLAMP(L:125)
0940714403
€ 2.50
5-2
0940718402
ref: 5-2
CLAMP(L:165)
0940718402
€ 2.50
5-3
0940725401
ref: 5-3
CLAMP(L:235)
0940725401
€ 4.00
6
3661844A00
ref: 6
BOOT,WIRING HARNESS
€ 12.00
7
3674004701
ref: 7
BOX ASSY,FUSE
3674004701
€ 16.00
8
0948115101
ref: 8
FUSE(15A)
0948115101
€ 1.50
9
3711001A01
ref: 9
SWITCH ASSEMBLY,IGNITION
€ 64.50
10
3714502400
ref: 10
OPT
KEY,BLANK
€ 13.00
11
3783013A00
ref: 11
SWITCH ASSY,ENGINE STOP
3783013A00
€ 43.00
12
3774004A10
ref: 12
SWITCH ASSY,STOP LAMP
3774004A10
€ 22.00
13
0944306064
ref: 13
SPRING
0944306064
€ 3.50
14-1
3850044A00
ref: 14-1
E1
HORN ASSEMBLY
€ 0.00
14-2
3850042A10
ref: 14-2
E2,E15,E21,E24
HORN ASSY
€ 31.00
14-3
3850042A00
ref: 14-3
E4,E18
HORN ASSY
€ 33.00
15
0211206125
ref: 15
SCREW
0211206125
€ 1.50
16
0832121064
ref: 16
WASHER,LOCK
0832121064
€ 2.00
