FUEL COCK

DR125S 1988 (J) UNITED KINGDOM FRANCE FINLAND (E02 E04 E15)

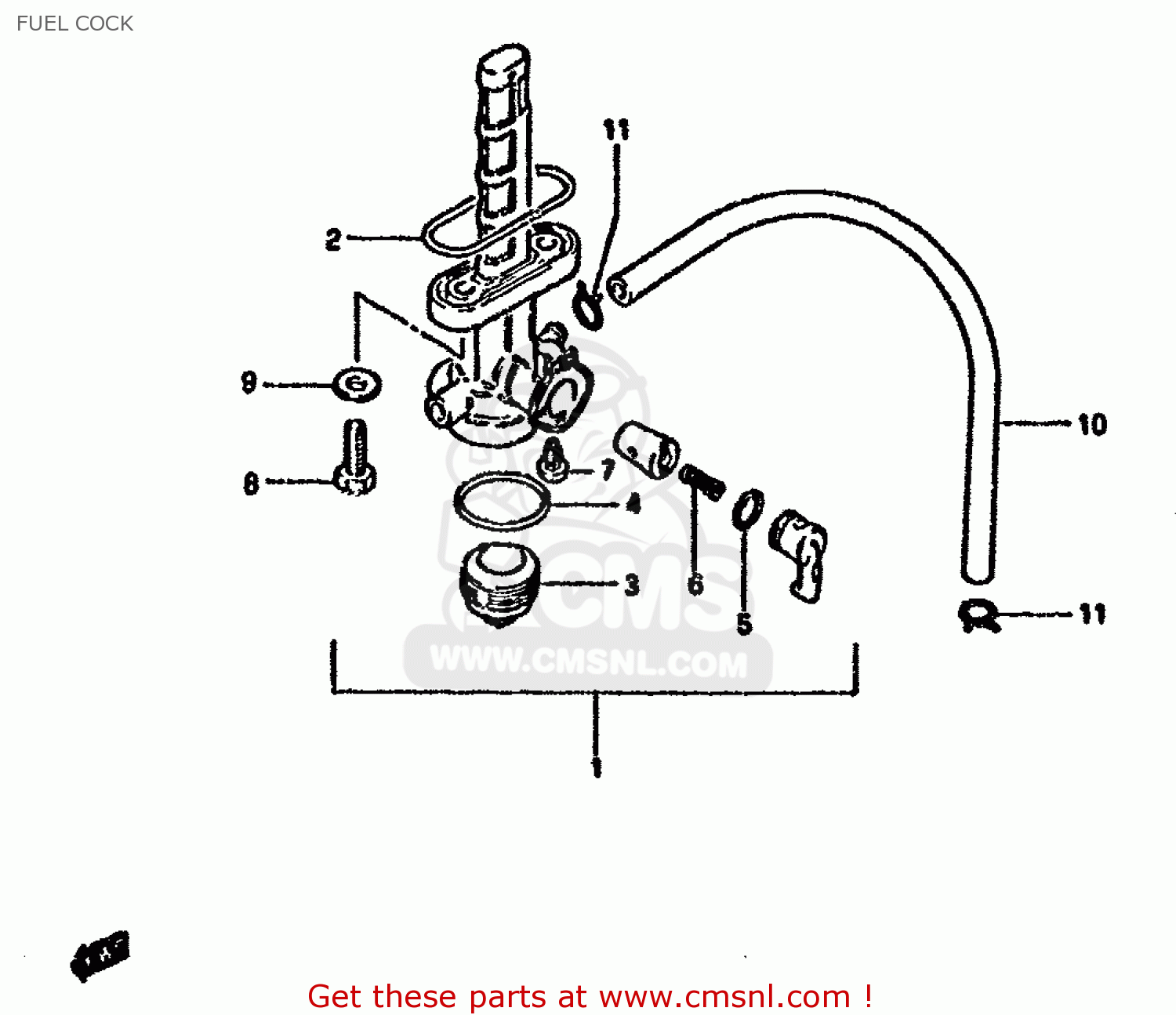

Fuel cock diagram DR125S 1988 (J) UNITED KINGDOM FRANCE FINLAND (E02 E04 E15)

FUEL COCK DR125S 1988 (J) UNITED KINGDOM FRANCE FINLAND (E02 E04 E15)

FUEL COCK DR125S 1988 (J) UNITED KINGDOM FRANCE FINLAND (E02 E04 E15)

prices are in EUR

ref

part #

description

quantity

1

4430038201
ref: 1

COCK ASSEMBLY,FUEL

€ 64.50

2

4434828070
ref: 2

O RING,FUEL COCK

€ 4.50

3

4434728071
ref: 3

CUP,STRAINER

€ 7.50

4

4434628070
ref: 4

GASKET,FILTER (NAS)

€ 2.50

5

4435332470
ref: 5

O-RING

€ 7.50

6

4435732470
ref: 6

SPRING

€ 2.00

7

4434341370
ref: 7

SCREW

€ 2.00

8

0912806006
ref: 8

BOLT(6X20)

€ 2.00

9

0916806010
ref: 9

GASKET

€ 2.00

10

0934305129
ref: 10

HOSE

€ 13.00

11

0940108401
ref: 11

CLIP

€ 1.50
