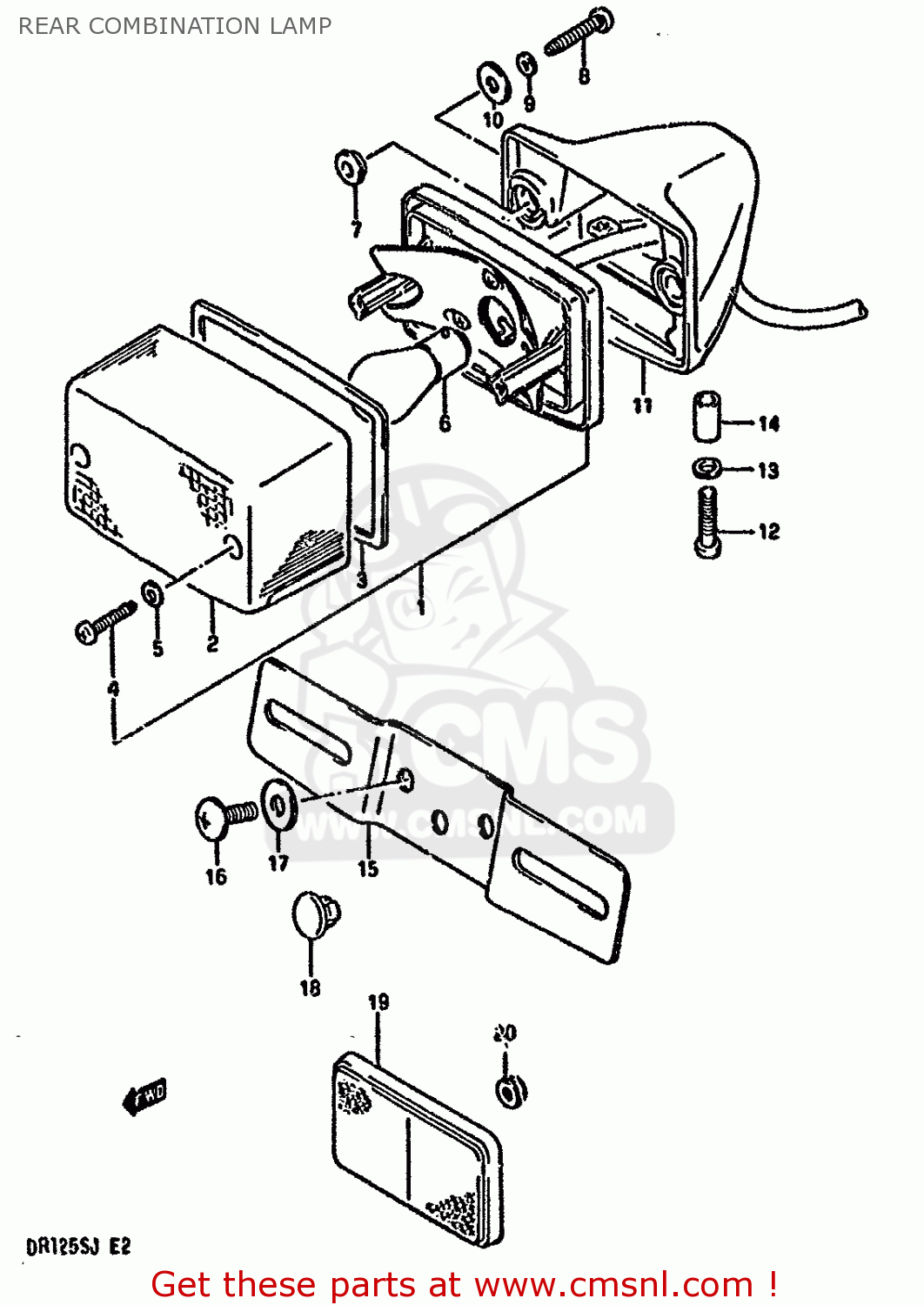

REAR COMBINATION LAMP

ref

part #

description

quantity

1-1

3572044A00
ref: 1-1
E1

LAMP UNIT,REAR COMBINATION

€ 90.50

1-2

3572044A20
ref: 1-2
E2~F.NO.101849

LAMP UNIT,REAR COMBINATION

€ 90.50

1-3

3572013A70
ref: 1-3
E2 F.NO.101850~

LAMP UNIT,REAR COMBINATION

€ 90.50

1-4

3572044A20
ref: 1-4
E4,E15,E21

LAMP UNIT,REAR COMBINATION

€ 90.50

1-5

3572044A80
ref: 1-5
E18

LAMP UNIT,REAR COMBINATION

€ 90.50

1-6

3572044A50
ref: 1-6
E24

LAMP UNIT,REAR COMBINATION

€ 90.50

2-1

3571213600
ref: 2-1

LENS,LAMP RR

€ 19.00

2-2

3571236A70
ref: 2-2
E2 F.NO.101850~

LENS

€ 19.00

3

3571313600
ref: 3

GASKET,RR COMBI LAMP LENS (NAS)

€ 3.50

4

0321104208
ref: 4

SCREW

€ 1.50

5

3562743010
ref: 5

GASKET (NAS)

€ 2.00

6-1

0947106063
ref: 6-1
E1

BULB(6V,21/5W)

€ 12.50

6-2

0947112083
ref: 6-2
E2,E4,E15,E18,E21

BULB(12V21/5W)

€ 6.00

6-3

0947112119
ref: 6-3
E24

BULB(12V18/5W)

€ 8.00

7

3576601A00
ref: 7

SPACER,RR COMBI

€ 3.00

8

0321105255
ref: 8

SCREW

€ 2.50

9

0832121055
ref: 9

WASHER,LOCK

€ 3.00

10

3572717210
ref: 10

WASHER

€ 1.50

11

3573042A00
ref: 11

BRACKET UNIT,TAIL LAMP

€ 39.00

12

0211206256
ref: 12

SCREW

€ 1.50

13

0832121066
ref: 13

WASHER,LOCK

€ 2.00

14

0918006121
ref: 14

SPACER(6.4X9.2X12)

€ 2.50

15

3592744110
ref: 15
E2,E4,E15,E18,E21

PLATE,RR LICENSE

€ 22.50

16

0214206164
ref: 16
E2,E4,E15,E18,E21

SCREW

€ 2.50

17

0916006069
ref: 17
E2,E4,E15,E18,E21

WASHER

€ 2.00

18

0932108005
ref: 18

CUSHION

€ 2.50

19

3597014A00
ref: 19

RR ASSY,RR

€ 15.50

20

0831626055
ref: 20

NUT

€ 2.00

all assemblies
