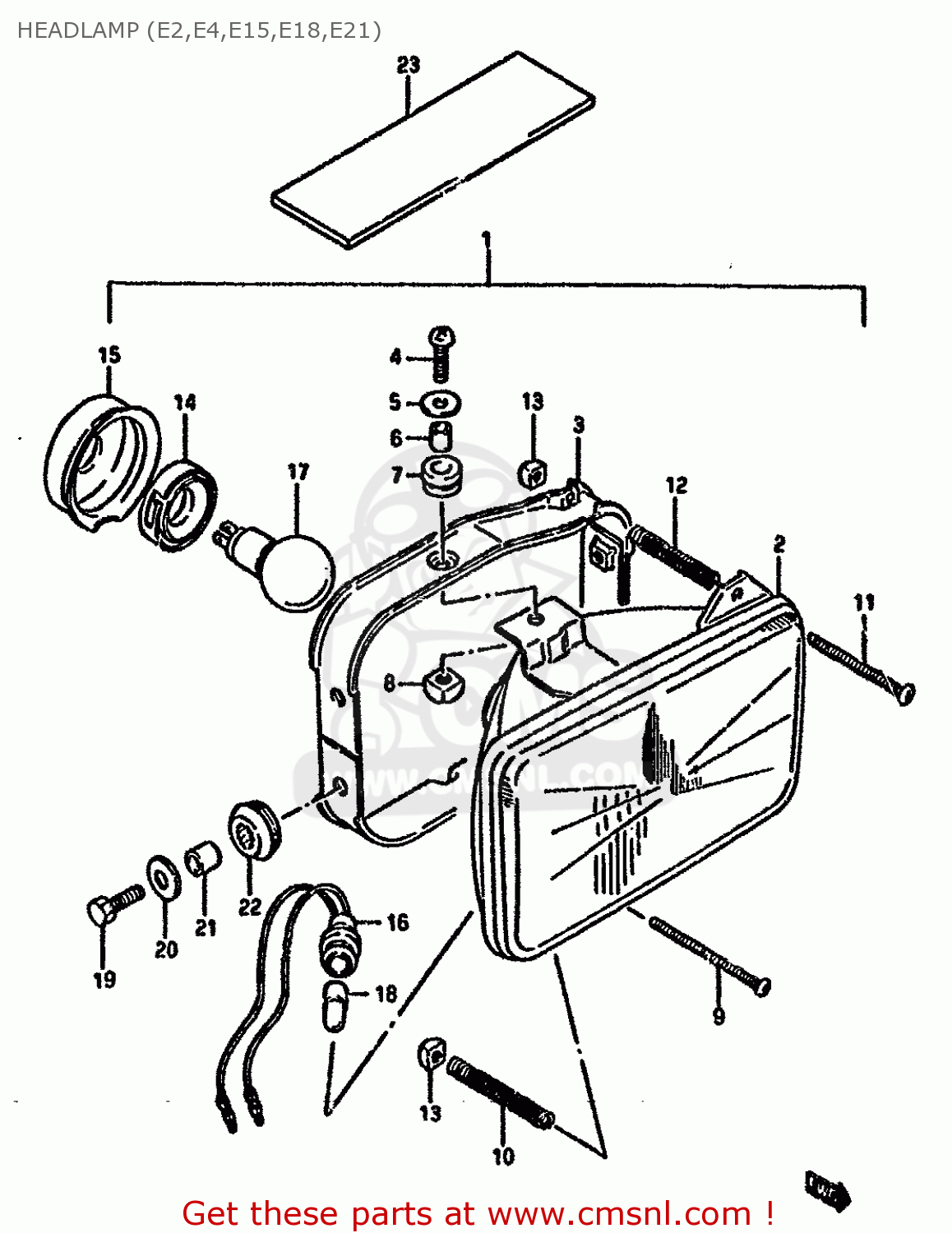

HEADLAMP (E2,E4,E15,E18,E21)

ref

part #

description

quantity

1-1

3510013A22999
ref: 1-1
E2

HEADLAMP ASSY

€ 159.50

1-2

3510013A52999
ref: 1-2
E4,E15,E18,E21

HEADLAMP ASSY

€ 141.00

2-1

3512113A21
ref: 2-1
E2

LAMP UNIT

€ 94.50

2-2

3512113A51
ref: 2-2
E4,E15,E18,E21

LAMP UNIT

€ 81.50

3

3514114A00
ref: 3

HOUSING

€ 31.00

4

0912505102
ref: 4

SCREW(5X14)

€ 2.50

5

3513845230
ref: 5

WASHER

€ 2.00

6

3513314A00
ref: 6

SPACER

€ 3.50

7

3513945230
ref: 7

CUSHION

€ 1.50

8

3513545900
ref: 8

NUT

€ 2.50

9

3515149200
ref: 9

SCREW,HEADLAMP ADJUST

€ 4.00

10

3515449200
ref: 10

SPRING

€ 3.50

11

3515131300
ref: 11

SCREW,HEADLAMP ADJUST

€ 3.00

12

3515431300
ref: 12

SPRING

€ 2.00

13

3513545600
ref: 13

NUT

€ 3.00

14

3513605300
ref: 14

HOLDER,BULB

€ 9.50

15

3517305300
ref: 15

COVER,SOCKET

€ 9.00

16

3611845900
ref: 16

SOCKET,PARKING

€ 13.00

17-1

0947112048
ref: 17-1
EXECUTED LOCALLY

BULB(12V45/40W)

€ 7.50

17-2

0947112049
ref: 17-2
E4,EXECUTED LOCALLY

BULB (12V, 45/40W)

€ 0.00

18

0947112063
ref: 18
EXECUTED LOCALLY

BULB(12V4W)

€ 6.00

19

0110706207
ref: 19

BOLT

€ 2.00

20

0916006027
ref: 20

WASHER (6.5X20X1.2)

€ 2.00

21

0918006011
ref: 21

SPACER (6.1X9X9)

€ 2.00

22

0932009018
ref: 22

CUSHION

€ 2.00

23

3692044A00
ref: 23

CUSHION

€ 5.50
