AIR CLEANER
DR250 1983 (D) USA (E03)

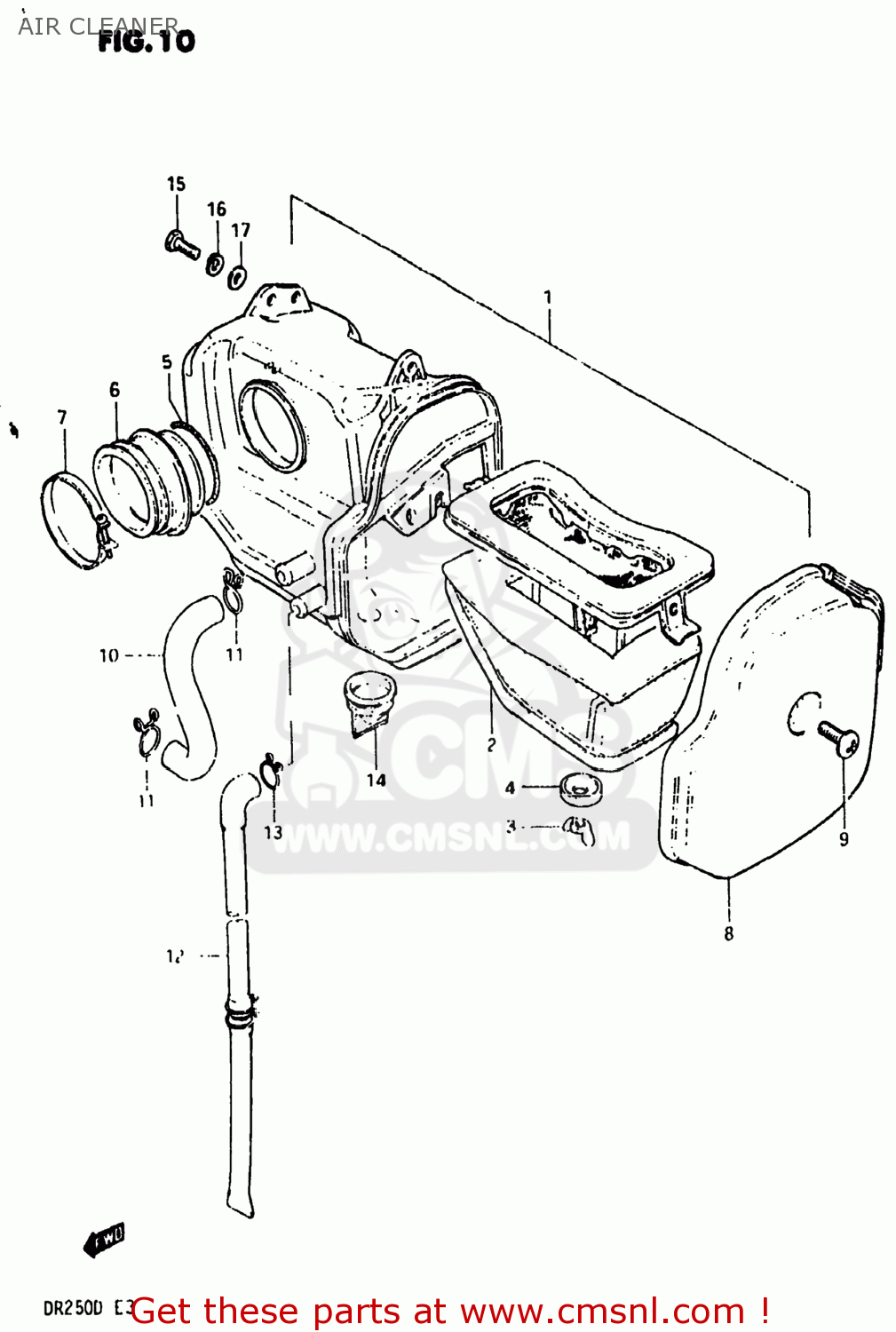

Air cleaner diagram DR250 1983 (D) USA (E03)
AIR CLEANER DR250 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1370038210
ref: 1-1
13700-38202
CLEANER ASSEMBLY,AIR
€ 182.00
1-2
1370038201
ref: 1-2
13700-38202
CLEANER ASSEMBLY,AIR
€ 182.00
2
1378138200
ref: 2
13780-38200
ELEMENT,AIR CLEANER
€ 44.00
3
0831711056
ref: 3
08317-1205A
NUT
€ 2.00
4
1379620400
ref: 4
WASHER
€ 4.00
5
1393102100
ref: 5
CLAMP,CLEANER SIDE
€ 4.00
6
1388138200
ref: 6
TUBE,AIR CLEANER OUTLET
€ 18.50
7
0940256306
ref: 7
09402-56901
CLAMP
€ 3.50
8-1
1374038200
ref: 8-1
13740-38201
CAP,AIR CLEANER
€ 22.00
8-2
1374038201
ref: 8-2
CAP
€ 22.00
9
0214206258
ref: 9
09125-06055
SCREW
€ 3.00
10
1385338200
ref: 10
TUBE,BREATHER
€ 8.50
11
0940116301
ref: 11
CLAMP
€ 2.50
12
1387000100
ref: 12
13870-21628
DRAIN TUBE
€ 23.50
13-1
0940100020
ref: 13-1
CLAMP
€ 0.00
13-2
0940116301
ref: 13-2
CLAMP
€ 2.50
14
1387320400
ref: 14
HOSE,AIR CLEANER DRAIN
€ 13.50
15
0110706168
ref: 15
01500-06167
BOLT, UPPER
€ 3.00
16
0832121068
ref: 16
08321-01067
LOCK WASHER
€ 2.50
17
0916006007
ref: 17
09160-06084
WASHER
€ 2.00
