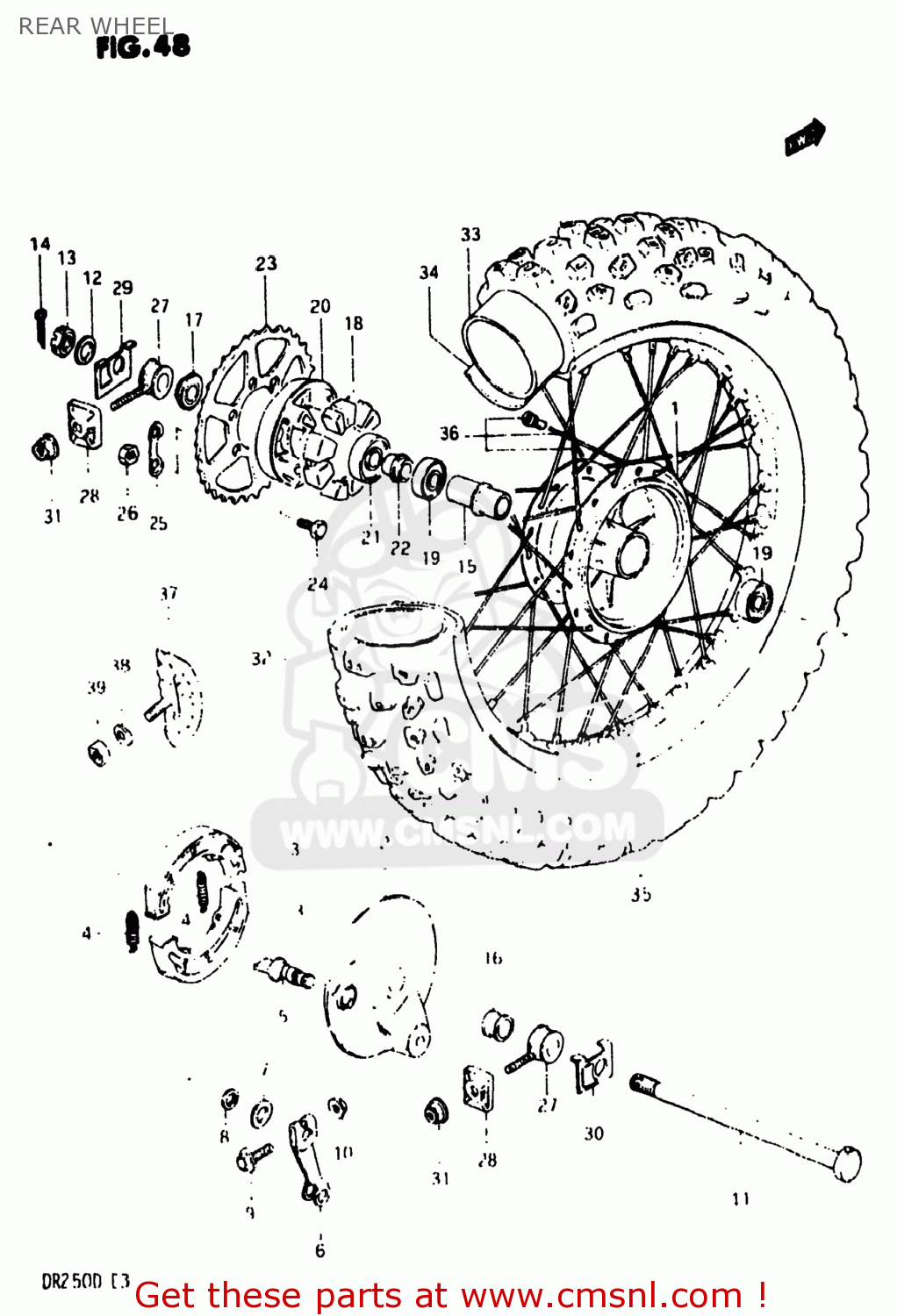

REAR WHEEL

ref

part #

description

quantity

1

6411038200
ref: 1

DRUM,REAR HUB

€ 268.00

2

6421038200
ref: 2

PANEL,REAR HUB

€ 139.00

3

5441007002
ref: 3
54401-07810

SHOE,BRAKE

€ 35.00

4

0944307001
ref: 4
09443-07025

SPRING(L:34)

€ 2.50

5

5444129303
ref: 5
54441-29305

CAM,FRONT BRAKE

€ 13.00

6

6445138210
ref: 6

CAM,LEVER

€ 32.50

7

0916014001
ref: 7
09160-14055

WASHER (14.5X22X1.6)

€ 2.50

8

0928014003
ref: 8
09280-14011

O-RING (D:2.4 ID:13.8)

€ 3.50

9

0151706358
ref: 9
01550-06357

BOLT 6X35

€ 2.50

10

0831616068
ref: 10
08319-31067

NUT

€ 2.50

11

6471138210
ref: 11
64711-47000

AXLE,REAR

€ 45.00

12

0832221168
ref: 12
08322-01167

WASHER

€ 2.00

13

0914116001
ref: 13

NUT

€ 6.50

14

0411140308
ref: 14
04111-4030A

PIN,COTTER

€ 1.50

15

6473140600
ref: 15

SPACER,REAR HUB BEARING

€ 0.00

16

6474138210
ref: 16

SPACER,REAR AXLE,RIGHT

€ 0.00

17

6475038210
ref: 17
64750-38211

SPACER,REAR AXLE

€ 12.00

18-1

6465138200
ref: 18-1
64651-38201

CUSHION,REAR DRUM

€ 5.50

18-2

6465138201
ref: 18-2

ABSORBER,RR SHOCK

€ 5.50

19

0814362037
ref: 19

BEARING

€ 18.50

20

6461138200
ref: 20

DRUM,REAR SPROCKET MOUNT

€ 111.00

21

0812362047
ref: 21

BEARING

€ 17.00

22

6473338200
ref: 22

SPACER,REAR HUB BEARING

€ 10.50

23

6451132401
ref: 23

SPROCKET,RR

€ 101.50

24

0911908036
ref: 24
09119-08078

BOLT

€ 5.00

25

0916908011
ref: 25

WASHER

€ 2.50

26

0831012088
ref: 26
08310-00087

NUT

€ 2.00

27

6141038220
ref: 27
61410-38221

ADJUSTER,CHAIN

€ 6.00

28

6142114210
ref: 28

PLATE,CHAIN ADJUSTER GUIDE,R

€ 139.50

29

6471238220
ref: 29

WASHER,CHAIN ADJUST GUIDE

€ 2.00

30

6472238220
ref: 30

WASHER,CHAIN ADJUST GUIDE

€ 3.50

31

0831931088
ref: 31
08319-3108A

NUT

€ 2.50

32-1

6510038270
ref: 32-1

TIRE

€ 90.50

32-2

6510038290
ref: 32-2

TIRE

€ 108.50

33-1

6520044300
ref: 33-1
65200-49030

TUBE ASSEMBLY,WHEEL,INNER

€ 43.50

33-2

6520038230
ref: 33-2

TUBE ASSEMBLY,WHEEL,INNER

€ 43.50

34-1

6526144300
ref: 34-1
55261-02B40

PROTECTOR,WHEEL,INNER

€ 3.50

34-2

5526120330
ref: 34-2
55261-02B40

PROTECTOR,WHEEL,INNER

€ 3.50

35-1

6531138220
ref: 35-1

RIM,REAR WHEEL

€ 81.50

35-2

6531138250
ref: 35-2
65311-38270

RIM,REAR WHEEL

€ 232.50

36

6532038200
ref: 36

SPOKE ASSY,RR WHEEL

€ 45.50

37

6527014200
ref: 37
65270-28E00

STOPPER,BEAD

€ 38.00

38

0832211088
ref: 38
08322-01087

WASHER

€ 2.00

39

0831012088
ref: 39
08310-00087

NUT

€ 2.00

all assemblies
