TRIP METER
DR250 1983 (D) USA (E03)

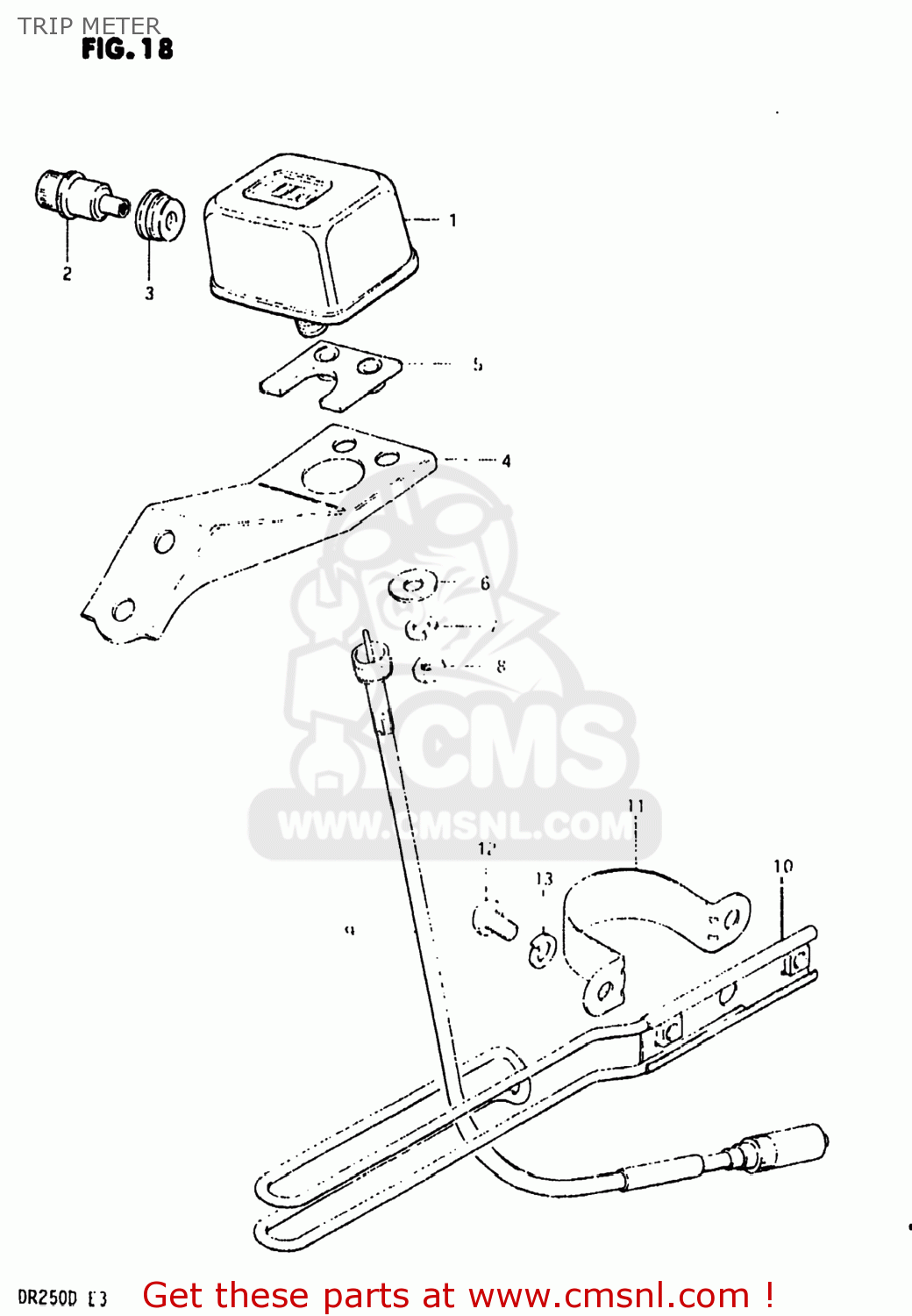

Trip meter diagram DR250 1983 (D) USA (E03)
TRIP METER DR250 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3472140610
ref: 1
34721-05D20
TRIP METER
€ 136.50
2
3412440610
ref: 2
KNOB,TRIP METER
€ 6.00
3
3412641410
ref: 3
COVER,TRIPMETER KNOB
€ 2.00
4-1
3472538200
ref: 4-1
BRACKET,TRIPMETER
€ 27.00
4-2
3472538201
ref: 4-2
34725-38200
BRACKET,TRIPMETER
€ 27.00
5
3472641410
ref: 5
CUSHION,TRIPMETER
€ 4.00
6
3472741410
ref: 6
09160-04022
WASHER,METER
€ 1.50
7
0832121048
ref: 7
08321-0104A
LOCK WASHER
€ 2.00
8
0831011048
ref: 8
08310-00047
NUT
€ 2.00
9
3491038200
ref: 9
CABLE ASSEMBLY,SPEEDOMETER
€ 0.00
10
3493837400
ref: 10
34930-37412
CLAMP,SPEEDOMETER CABLE
€ 14.00
11
3499737400
ref: 11
CLAMP
€ 2.50
12
0211206128
ref: 12
02112-06127
SCREW 6X12
€ 2.00
13
0832121068
ref: 13
08321-01067
LOCK WASHER
€ 2.50
