CYLINDER
DR250 1983 (D) USA (E03)

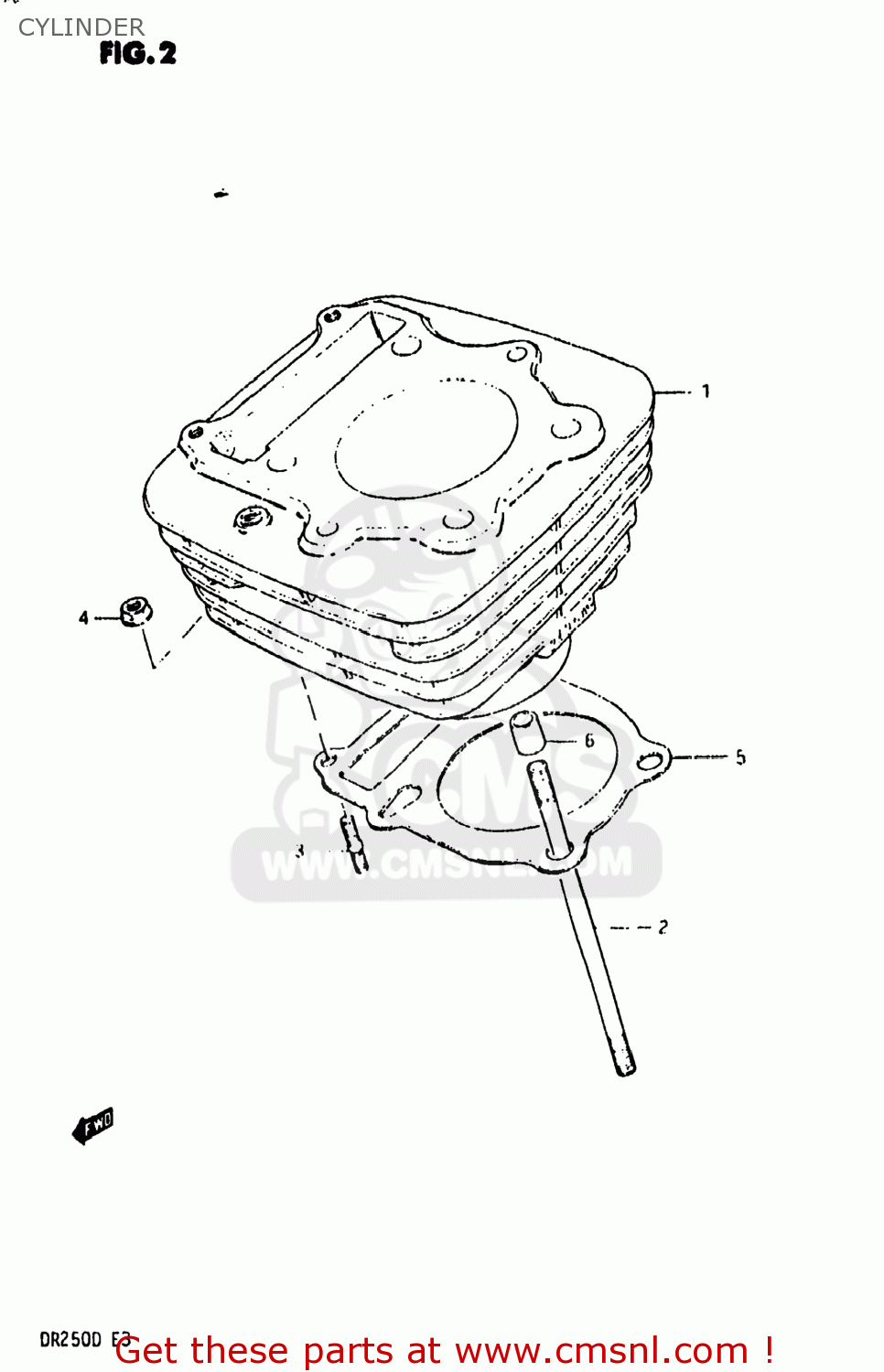

Cylinder diagram DR250 1983 (D) USA (E03)
CYLINDER DR250 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1121038210
ref: 1
11210-38204-0F0
CYLINDER
€ 1,003.50
2
0910810030
ref: 2
BOLT,STUD
€ 7.50
3
0142106255
ref: 3
01421-0625A
STUD 6X25
€ 2.00
4
0831616065
ref: 4
08316-1006B
NUT
€ 2.50
5-1
1124138200
ref: 5-1
11241-38301
GASKET,CYLINDER (MCA)
€ 9.50
5-2
1124138201
ref: 5-2
11241-38301
GASKET,CYLINDER (MCA)
€ 9.50
6
0920613001
ref: 6
04211-13189
PIN
€ 2.50
