MUFFLER
DR250 1983 (D) USA (E03)

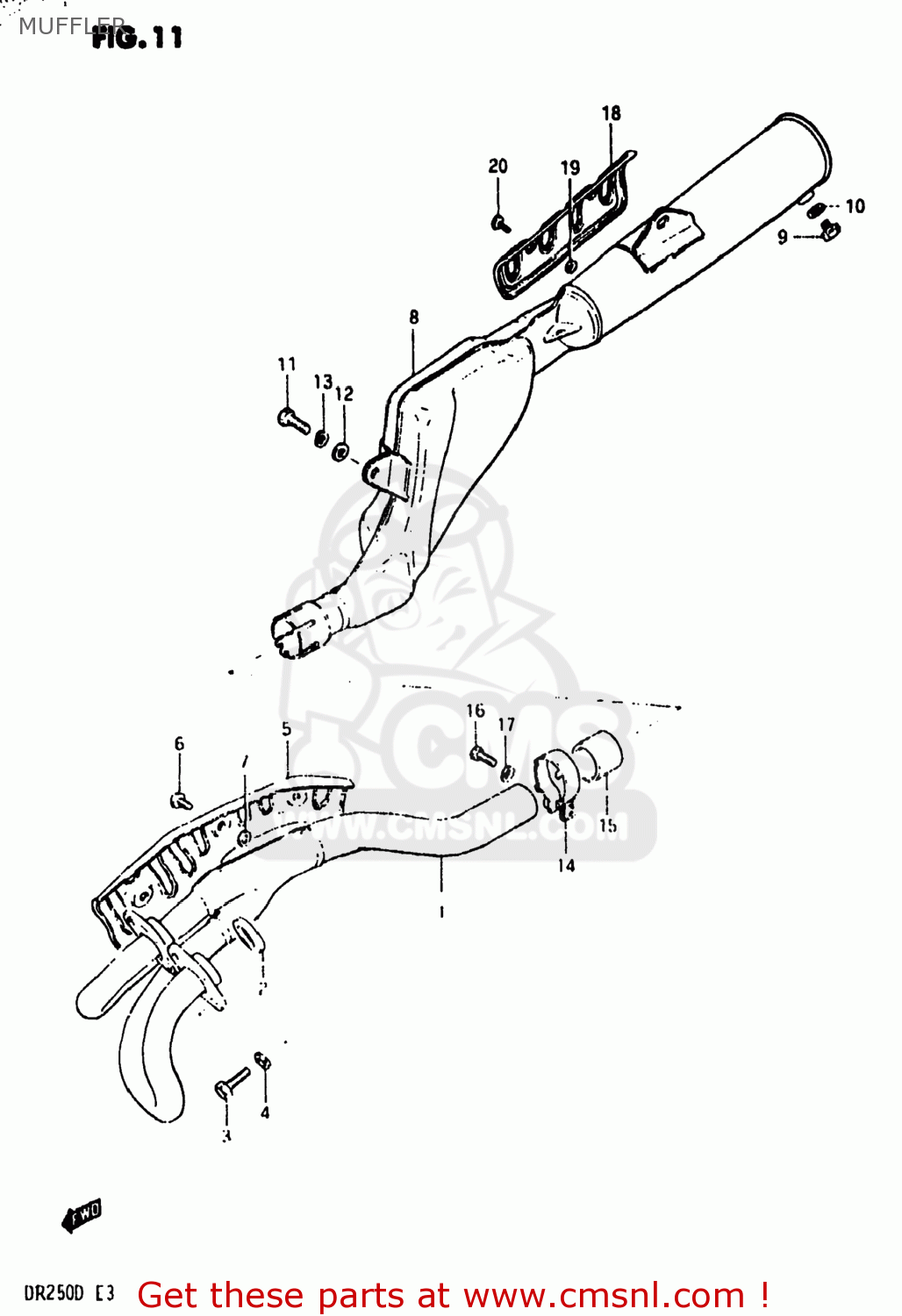

Muffler diagram DR250 1983 (D) USA (E03)
MUFFLER DR250 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1415038200
ref: 1-1
14150-38202-H01
PIPE,EXHAUST
€ 144.50
1-2
1415038201
ref: 1-2
14150-38202-H01
PIPE,EXHAUST
€ 144.50
2
1418103310
ref: 2
14181-37D00
GASKET,EXHAUST PIPE (NAS)
€ 7.00
3
0110706255
ref: 3
01500-0625A
BOLT
€ 2.50
4
0832121065
ref: 4
08321-0106A
LOCK WASHER
€ 2.00
5
1418638200
ref: 5
COVER,EXHAUST PIPE
€ 57.00
6
0214206105
ref: 6
02142-0610A
SCREW
€ 2.00
7
0916806005
ref: 7
09168-06105
GASKET 6.2X12X1.5 (MCA)
€ 2.00
8
1430138210
ref: 8
14301-38240-H01
MUFFLER ASSEMBLY
€ 343.50
9
0924712103
ref: 9
PLUG(12X9)
€ 3.50
10
0916812002
ref: 10
GASKET(12.1X16.2X3.7) (NAS)
€ 2.00
11
0110708205
ref: 11
01500-0820A
BOLT
€ 2.00
12
0832211085
ref: 12
08322-0108A
WASHER,8.5X16X
€ 1.50
13
0832121085
ref: 13
08321-0108A
LOCK WASHER
€ 2.50
14
1445932400
ref: 14
CLAMP
€ 14.00
15
1477138200
ref: 15
14771-38200-H17
CONNECTOR,MUFFLER
€ 56.50
16
0910008195
ref: 16
BOLT 8X35
€ 2.50
17
0832211085
ref: 17
08322-0108A
WASHER,8.5X16X
€ 1.50
18
1478138200
ref: 18
COVER,MUFFLER
€ 11.50
19
0916806005
ref: 19
09168-06105
GASKET 6.2X12X1.5 (MCA)
€ 2.00
20
0214206105
ref: 20
02142-0610A
SCREW
€ 2.00
