TAIL LAMP

DR250 1983 (D) USA (E03)

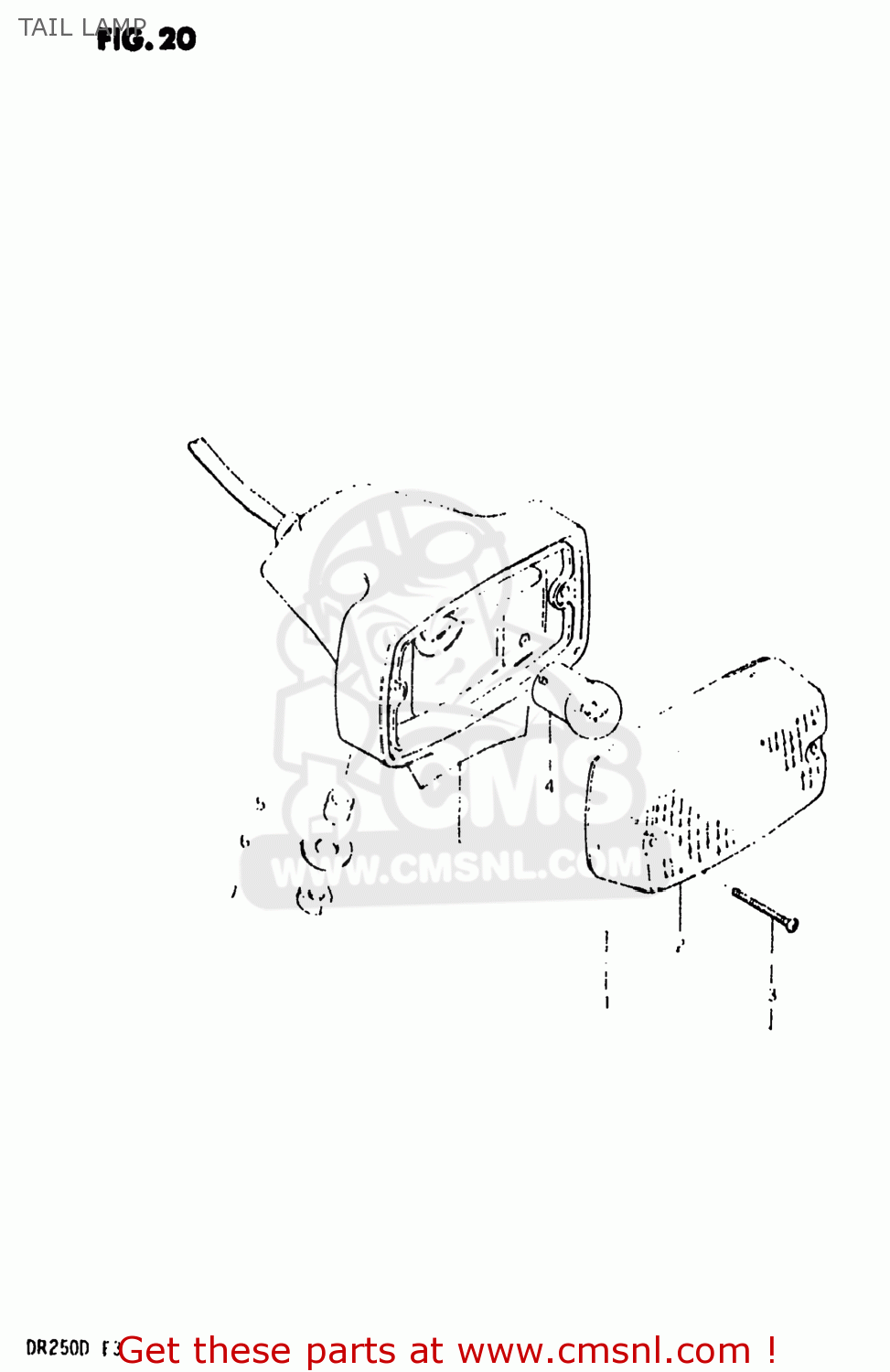

Tail lamp diagram DR250 1983 (D) USA (E03)

TAIL LAMP DR250 1983 (D) USA (E03)

TAIL LAMP DR250 1983 (D) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3571040500
ref: 1

LAMP ASSEMBLY,TAIL

€ 72.50

2

3571230410
ref: 2

LENS

€ 15.50

3

3572340511
ref: 3

SCREW,REAR COMBINATION LAMP LENS

€ 2.50

4

0947106049
ref: 4

BULB(6V5W,TOKAI DENSO)

€ 3.50

5

0918006027
ref: 5
09180-06258

SPACER (6.3X9.1X6.7)

€ 3.00

6

0916006060
ref: 6
09160-06077

WASHER

€ 2.00

7

0831011068
ref: 7
08310-00067

NUT

€ 2.50
