DR250 1983 (D) USA (E03)

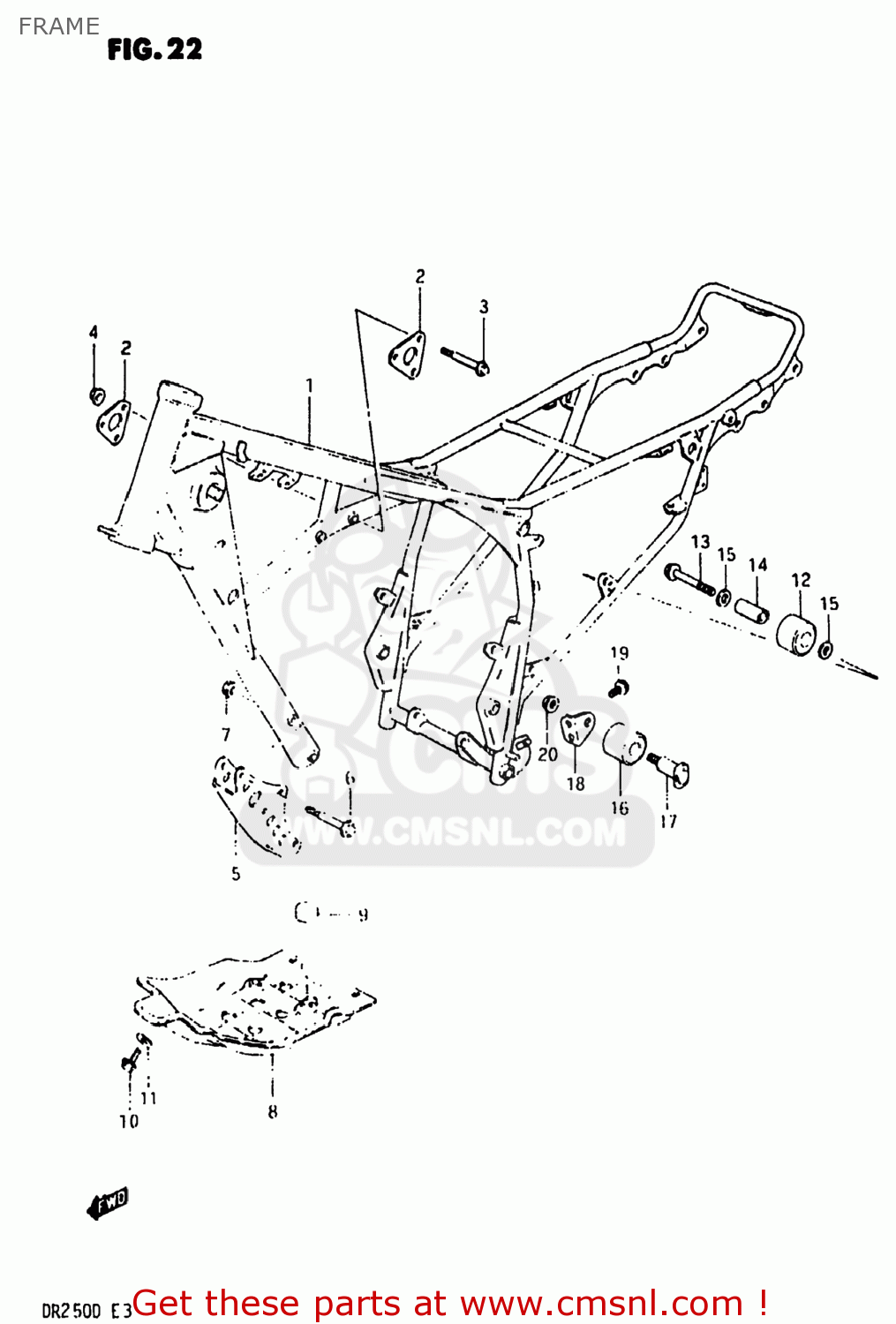

Frame diagram DR250 1983 (D) USA (E03)
FRAME DR250 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
4110038210019
ref: 1-1
41100-38211-019
FRAME
€ 277.00
1-2
4110038211019
ref: 1-2
FRAME
€ 277.00
2
4199138200
ref: 2
PLATE,ENGINE MOUNT UPR
€ 8.00
3-1
0152708507
ref: 3-1
01550-08507
BOLT
€ 3.50
3-2
0910308081
ref: 3-2
BOLT(8X50)
€ 3.50
4
0831931085
ref: 4
08319-3108A
NUT
€ 2.50
5
4199238200
ref: 5
41992-38200-019
PLATE,ENGINE MOUNTING
€ 15.50
6-1
0152708657
ref: 6-1
01550-08657
BOLT
€ 3.00
6-2
0910308075
ref: 6-2
09103-08037
BOLT 8X67
€ 6.50
7
0831931085
ref: 7
08319-3108A
NUT
€ 2.50
8
4251038200019
ref: 8
42510-38200-13L
PROTECTOR,ENGINE
€ 75.50
9
0932912003
ref: 9
CUSHION
€ 4.00
10
0151706128
ref: 10
01550-06127
BOLT
€ 2.50
11
0916006069
ref: 11
09160-06052
WASHER
€ 2.00
12
4391114200
ref: 12
ROLLER,CHAIN LENGTH CONTROL
€ 18.50
13
0910308043
ref: 13
BOLT(8X45)
€ 4.50
14
4391340400
ref: 14
SPACER,CHAIN LENGTH ROLLER
€ 8.00
15
0916008035
ref: 15
09160-08130
WASHER
€ 2.00
16
4391114200
ref: 16
ROLLER,CHAIN LENGTH CONTROL
€ 18.50
17
4391038200
ref: 17
ROLLER,CHAIN
€ 11.50
18
4391638200
ref: 18
BRACKET,LOWER
€ 2.50
19
0151706128
ref: 19
01550-06127
BOLT
€ 2.50
20
0831931088
ref: 20
08319-3108A
NUT
€ 2.50
