FRAME COVER (MODEL Z)
DR250 1983 (D) USA (E03)

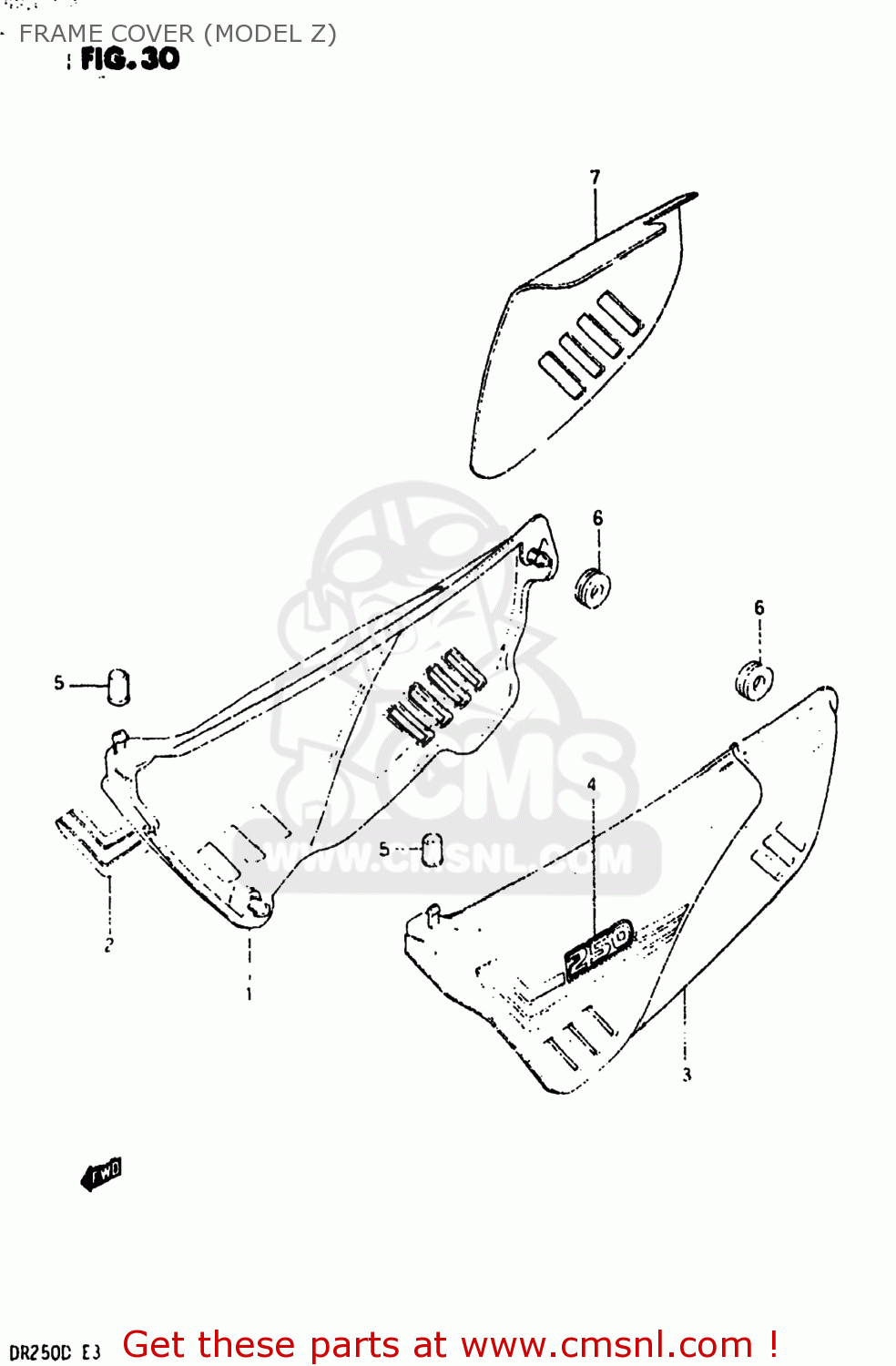

Frame cover (model z) diagram DR250 1983 (D) USA (E03)
FRAME COVER (MODEL Z) DR250 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
471113820010V
ref: 1
47111-38202-13L
COVER,FRAME,RIGHT
€ 33.00
2
681363820067H
ref: 2
TAPE,FRAME COVER,RIGHT
€ 10.00
3
472113821010V
ref: 3
47211-38211
COVER,FRAME,LEFT
€ 30.00
4
681463820067H
ref: 4
TAPE,FRAME COVER,LEFT
€ 10.00
5
0932003005
ref: 5
09320-03004
CUSHION
€ 2.00
6
0932008018
ref: 6
CUSHION
€ 4.00
7
4712238201
ref: 7
47122-38202
HEAT SHIELD,FRAME COVER
€ 34.00
