CYLINDER HEAD
DR250 1983 (D) USA (E03)

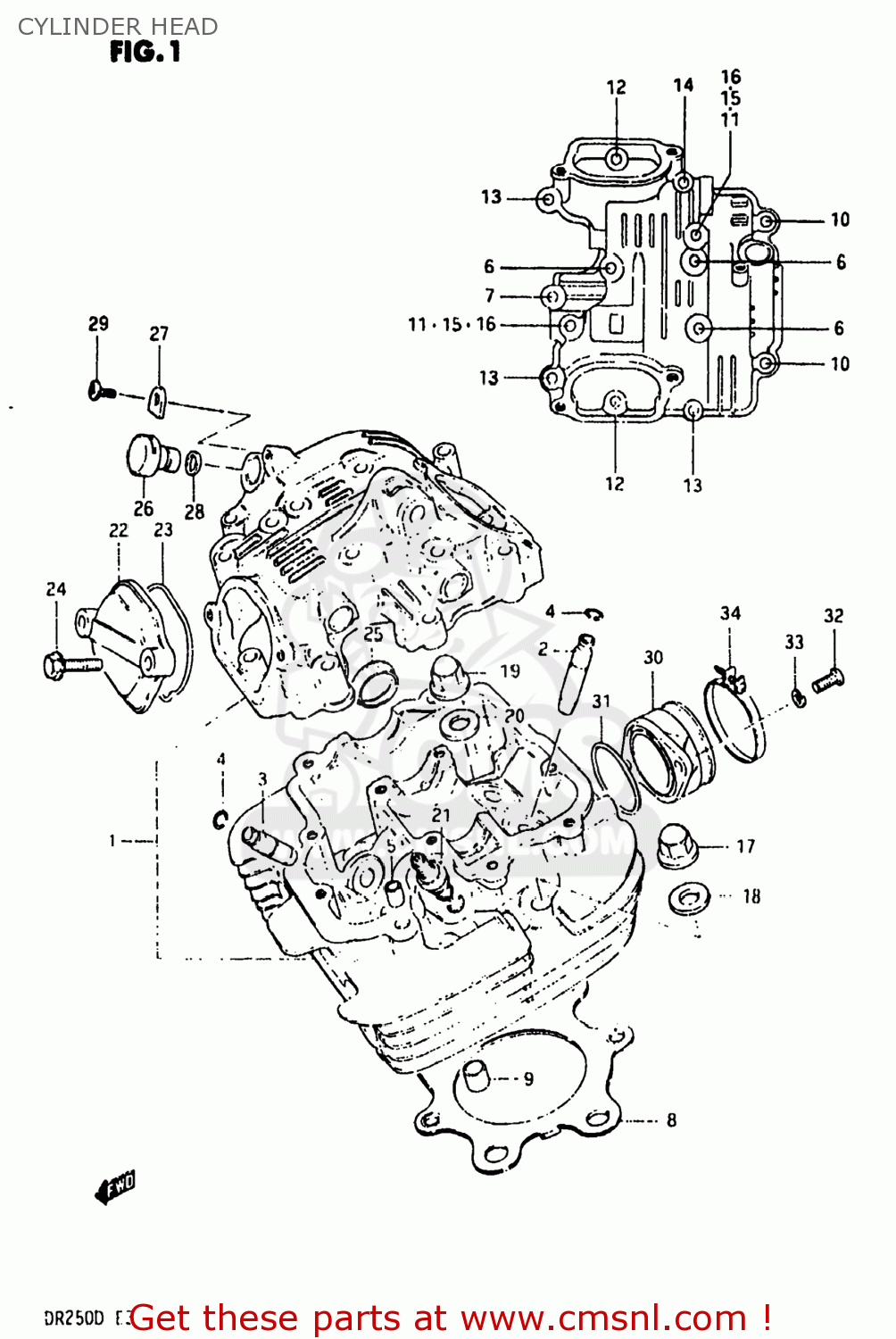

Cylinder head diagram DR250 1983 (D) USA (E03)
CYLINDER HEAD DR250 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1110038210
ref: 1-1
11100-38222
HEAD ASSEMBLY,CYLINDER
€ 839.00
1-2
1110038220
ref: 1-2
11100-38222
HEAD ASSEMBLY,CYLINDER
€ 839.00
2
1111538270
ref: 2
GUIDE,INTAKE VALVE
€ 25.50
3
1111505270
ref: 3
GUIDE,VALVE
€ 18.50
4
0938110004
ref: 4
RING,SNAP
€ 1.50
5
0920608001
ref: 5
PIN(6.2X8X11)
€ 2.00
6
0151706605
ref: 6
01550-0660A
BOLT ,6X60
€ 2.50
7
0151706305
ref: 7
01550-0630A
BOLT 6X30
€ 2.50
8
1114138200
ref: 8
11141-25D11
GASKET,CYLINDER HEAD (NAS)
€ 37.50
9
0920613001
ref: 9
04211-13189
PIN
€ 2.50
10
0910306053
ref: 10
09103-06167
BOLT
€ 4.50
11
0142106305
ref: 11
01421-0630B
BOLT (6X30)
€ 2.00
12
0151706305
ref: 12
01550-0630A
BOLT 6X30
€ 2.50
13
0151706455
ref: 13
01550-0645A
BOLT (6X45)
€ 2.50
14
0151706605
ref: 14
01550-0660A
BOLT ,6X60
€ 2.50
15
0831616065
ref: 15
08316-1006B
NUT
€ 2.50
16
0916806009
ref: 16
09168-06023
GASKET (NAS)
€ 2.00
17
0915910033
ref: 17
09159-10026
NUT
€ 6.00
18
0916010060
ref: 18
09160-10039
WASHER (10.5X22X2.3)
€ 2.50
19
0915910035
ref: 19
09159-10026
NUT
€ 6.00
20
0916810017
ref: 20
GASKET(10.5X22X2) (NAS)
€ 3.50
21-1
0948200144
ref: 21-1
SPARK PLUG D8EA
€ 3.50
21-2
0948200145
ref: 21-2
09482-00223
SPARK PLUG X24ES-U
€ 3.50
22
1117538210
ref: 22
11175-38202
CAP,INSPECTION
€ 23.50
23
0928055003
ref: 23
O RING(D:2.4,ID:23)
€ 4.50
24
0151706255
ref: 24
01550-0625A
BOLT
€ 2.50
25
0924130004
ref: 25
PLUG(OD:30)
€ 6.50
26
2644245000
ref: 26
PLUG,TACH GEAR SLEEVE HOLE
€ 15.50
27
2644933000
ref: 27
PLATE,TACH DRIVE GEAR SLEEVE
€ 3.50
28
2645145000A
ref: 28
SEAL,TACHOMETER DRIVEN
€ 4.50
29
0912805101
ref: 29
SCREW(5X12)
€ 1.50
30
1311038200
ref: 30
PIPE,INTAKE
€ 38.50
31
0928040003
ref: 31
09280-40010
O-RING (D:2.4 ID:39.7)
€ 3.50
32
0211206168
ref: 32
02112-06167
SCREW
€ 2.50
33
0832121068
ref: 33
08321-01067
LOCK WASHER
€ 2.50
34
0940252306
ref: 34
CLAMP
€ 6.00
