HANDLEBAR
DR250 1983 (D) USA (E03)

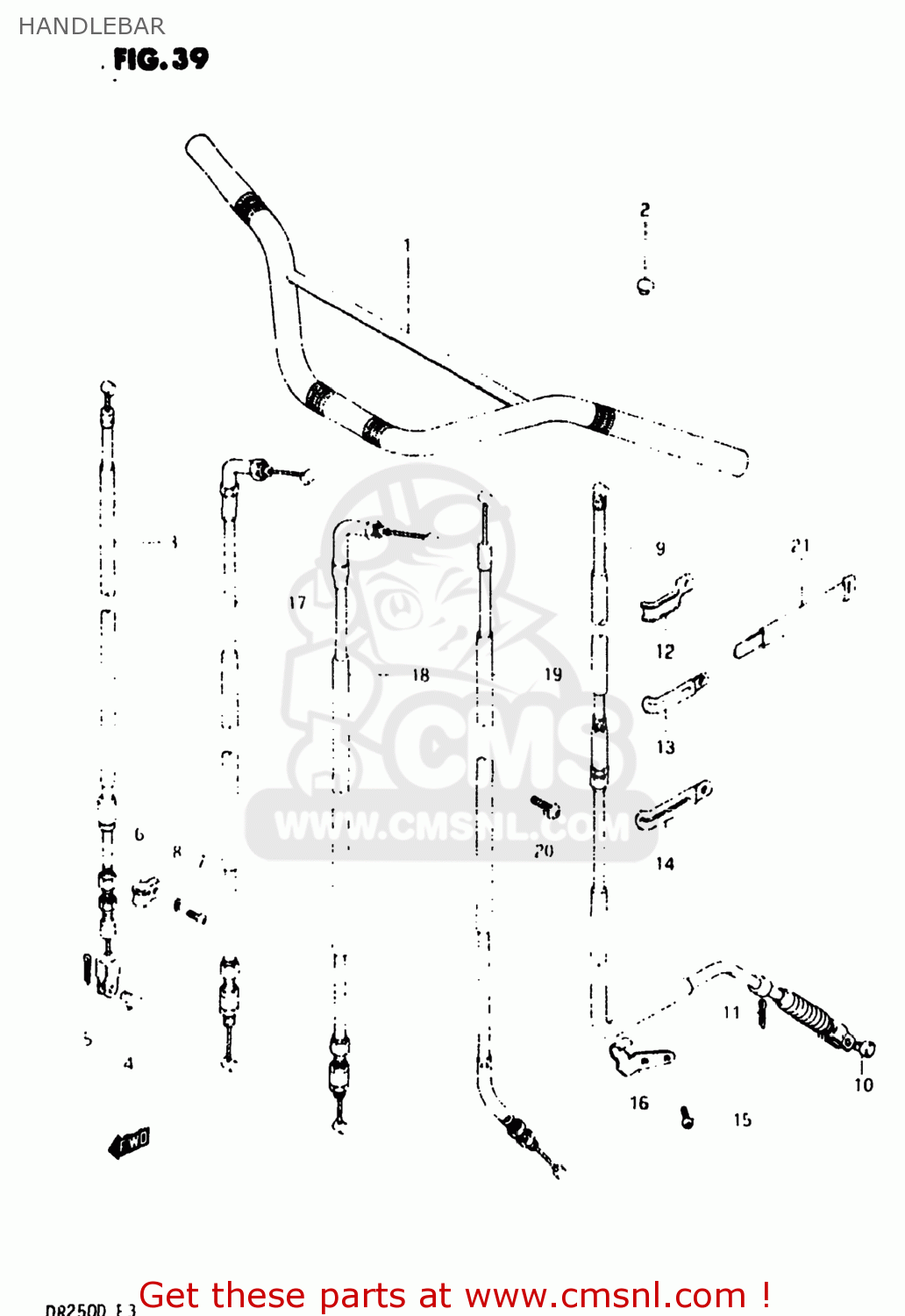

Handlebar diagram DR250 1983 (D) USA (E03)
HANDLEBAR DR250 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5611038230291
ref: 1
56110-38210-291
HANDLEBAR
€ 53.50
2
0925009001
ref: 2
CAP(OD:14)
€ 1.00
3
5810038210
ref: 3
58100-37400
CABLE ASSEMBLY,FRONT BRAKE
€ 27.00
4
0920005001
ref: 4
PIN(L:17.5)
€ 1.50
5
0411120158
ref: 5
04111-2015A
PIN
€ 1.50
6
5862014201
ref: 6
58620-40401
GUIDE,CABLE
€ 6.50
7
0211206208
ref: 7
02112-06207
SCREW
€ 2.00
8
0832121068
ref: 8
08321-01067
LOCK WASHER
€ 2.50
9
5820038200
ref: 9
58200-38X00
CABLE ASSEMBLY,CLUTCH
€ 32.50
10
0920006004
ref: 10
PIN(L:13)
€ 1.50
11
0411120158
ref: 11
04111-2015A
PIN
€ 1.50
12
0940307310
ref: 12
CLAMP
€ 2.00
13
0940300069
ref: 13
CLAMP
€ 8.50
14
0940408402
ref: 14
09404-08420
CLAMP
€ 3.50
15
0211206128
ref: 15
02112-06127
SCREW 6X12
€ 2.00
16
5863438200
ref: 16
58634-38210
STOPPER,CLUTCH CABLE
€ 7.00
17
5830038200
ref: 17
CABLE ASSY,THROTTLE NO.1
€ 49.50
18
5830038210
ref: 18
CABLE ASSY,THROTTLE NO.2
€ 36.50
19-1
5890038200
ref: 19-1
58900-09B00
CABLE ASSEMBLY,DECOMPRESSION
€ 25.00
19-2
5890038201
ref: 19-2
58900-09B00
CABLE ASSEMBLY,DECOMPRESSION
€ 25.00
20
0215206108
ref: 20
02142-0610A
SCREW
€ 2.00
21
0940725301
ref: 21
CLAMP(L:250)
€ 4.50
