CHAIN GUIDE
DR250 1983 (D) USA (E03)

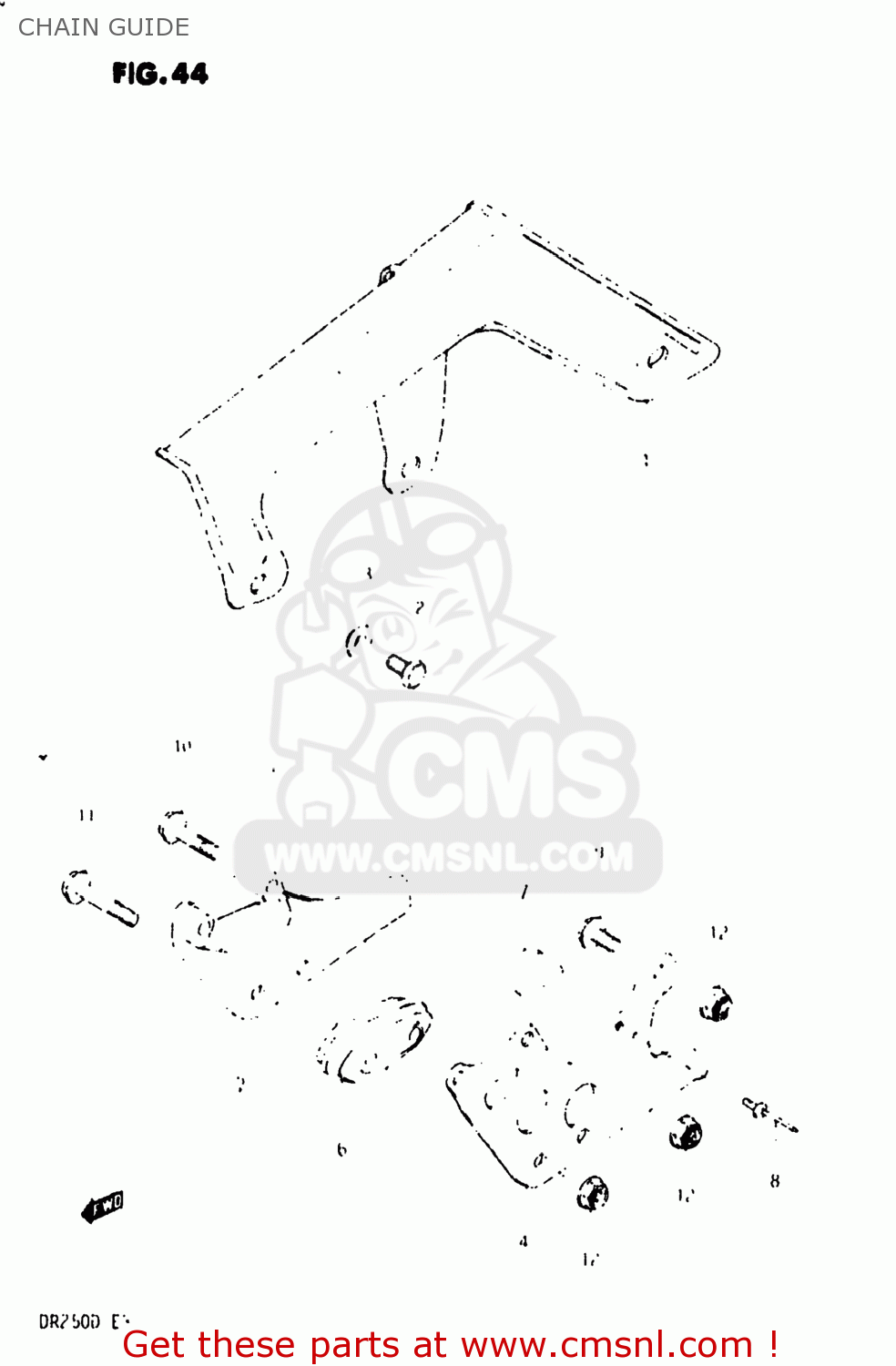

Chain guide diagram DR250 1983 (D) USA (E03)
CHAIN GUIDE DR250 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6131138210
ref: 1
61311-38210-291
CASE,CHAIN
€ 28.00
2
0110706128
ref: 2
01500-06127
BOLT
€ 2.00
2
0110706128
ref: 2
01500-06127
BOLT
€ 2.00
3
0916906025
ref: 3
09169-06010
WASHER,LOCK
€ 3.00
5
6134238220
ref: 5
PLATE,CHAIN GUIDE,INNER
€ 0.00
6
6134814110
ref: 6
DEFENSE,CHAIN GUIDE
€ 12.00
7
6134940210
ref: 7
61349-40211
PAD,DRIVE CHAIN GUIDE
€ 9.50
8
0922903005
ref: 8
RIVET
€ 3.50
9
0151706168
ref: 9
01550-06167
BOLT
€ 1.50
10
0151706358
ref: 10
01550-06357
BOLT 6X35
€ 2.50
11
0151706408
ref: 11
01550-06407
BOLT
€ 2.50
12
0831931068
ref: 12
08319-31067
NUT
€ 2.50
