FRAME COVER (MODEL D)
DR250 1983 (D) USA (E03)

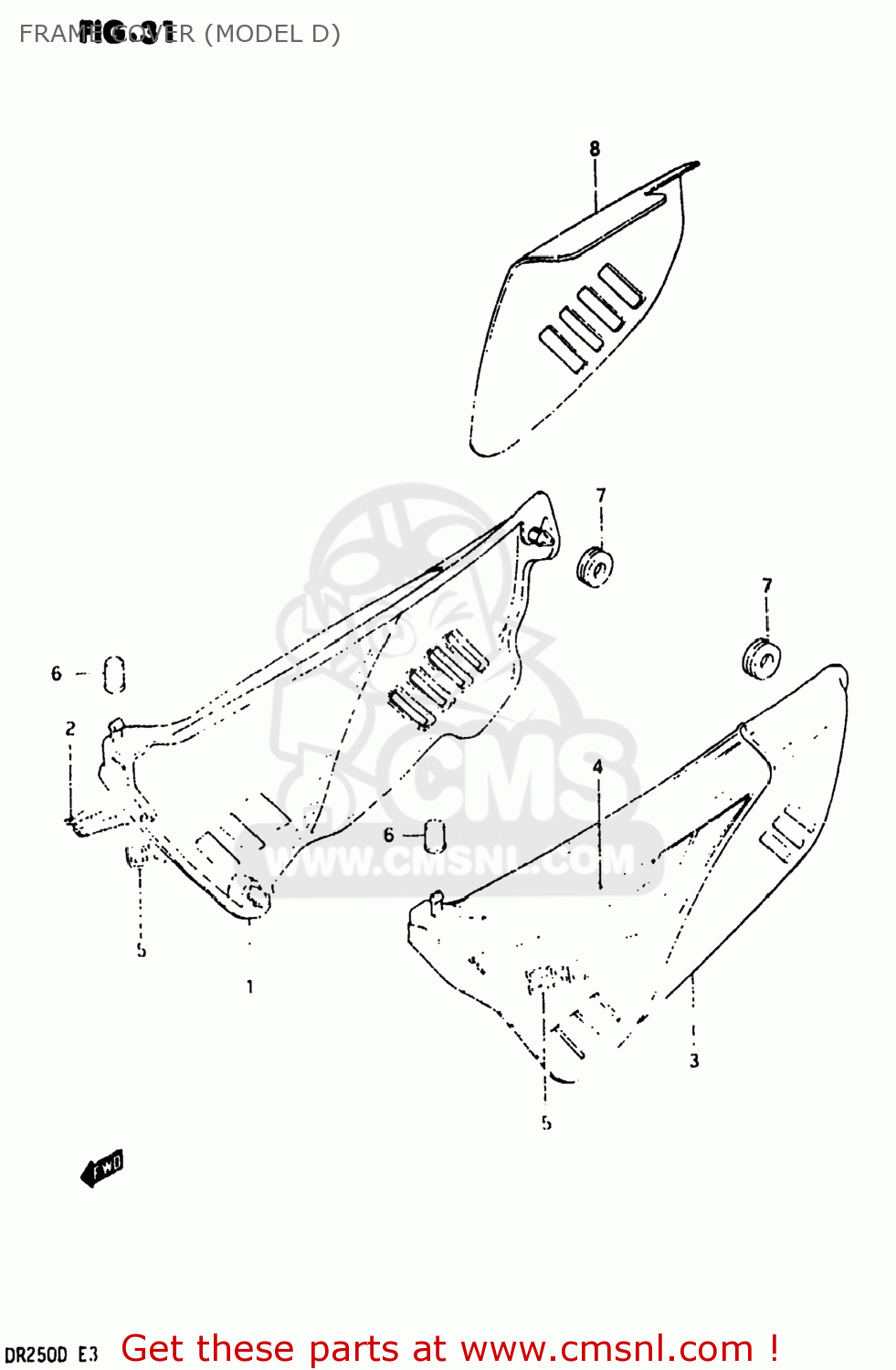

Frame cover (model d) diagram DR250 1983 (D) USA (E03)
FRAME COVER (MODEL D) DR250 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
471113820110V
ref: 1
47111-38202-13L
COVER,FRAME,RIGHT
€ 33.00
2
681303822076U
ref: 2
TAPE,FRAME COVER,RIGHT
€ 0.00
3
472113821110V
ref: 3
47211-38211
COVER,FRAME,LEFT
€ 30.00
4
681403822076U
ref: 4
TAPE,FRAME COVER,LEFT
€ 0.00
5
6813138220538
ref: 5
68131-38230-73F
EMBLEM
€ 4.50
6
0932003005
ref: 6
09320-03004
CUSHION
€ 2.00
7
0932008018
ref: 7
CUSHION
€ 4.00
8
4712238201
ref: 8
47122-38202
HEAT SHIELD,FRAME COVER
€ 34.00
