CAM CHAIN

DR250 1985 (F) USA (E03)

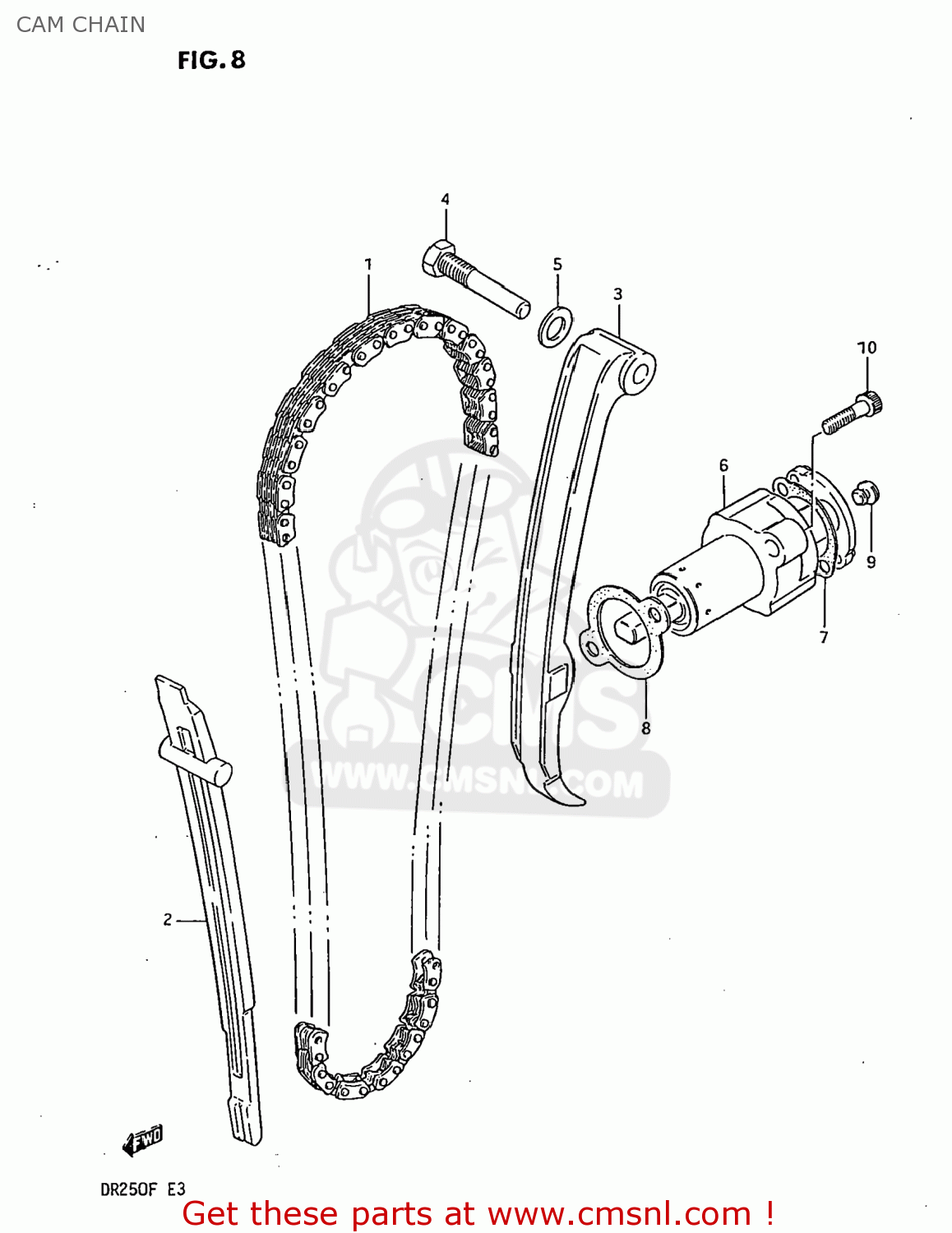

Cam chain diagram DR250 1985 (F) USA (E03)

prices are in EUR

ref

part #

description

quantity

1276038200
ref: 1
12760-13F00

CHAIN,CAMSHAFT DRIVE

€ 109.50

1277138200
ref: 2

GUIDE,CAM CHAIN

€ 34.00

1281138200
ref: 3

TENSIONER,CAM CHAIN

€ 31.50

1281232410
ref: 4

BOLT,CAM CHAIN TENSIONER

€ 3.50

0916808008
ref: 5
09168-08016

GASKET 8.2X14X1 (NAS)

€ 1.00

1283038210
ref: 6
12830-38201

ADJUSTER ASSEMBLY,TENSIONER

€ 91.00

1283838200
ref: 7
12838-38200-H17

GASKET,ADJUSTER CAP (MCA)

€ 3.00

1283738200
ref: 8
12837-24A10

GASKET,TENSIONER ADJUSTER (MCA)

€ 3.50

1283938200
ref: 9

PLUG,ADJUSTER

€ 2.00

0711006255
ref: 10
07130-0625B

BOLT

€ 3.00

all assemblies
