FRONT MASTER CYLINDER

DR250 1985 (F) USA (E03)

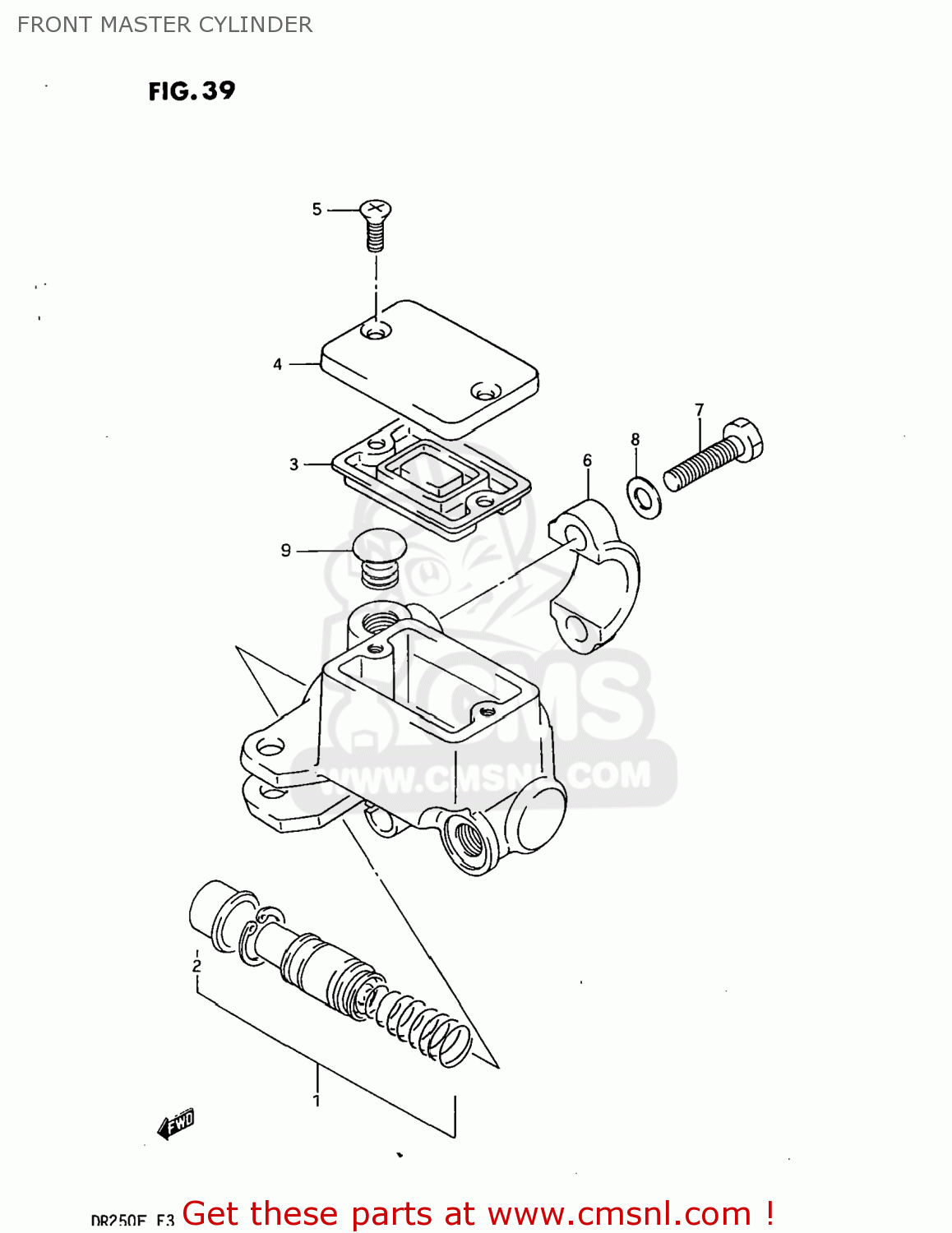

Front master cylinder diagram DR250 1985 (F) USA (E03)

prices are in EUR

ref

part #

description

quantity

5960013A20
ref:
59600-13A60

CYLINDER ASSEMBLY,FRONT MASTER

€ 191.50

5960013820
ref: 1

PISTON/CUP SET

€ 40.50

5966644300
ref: 2

BOOT

€ 6.00

5966704700
ref: 3

DIAPHRAGM

€ 8.00

5966904710
ref: 4
69669-24A01

CAP

€ 12.00

6968949300
ref: 5

SCREW

€ 1.50

5967136500
ref: 6

HOLDER

€ 10.00

0110706255
ref: 7
01500-0625A

BOLT

€ 2.50

0832221064
ref: 8
08322-0106B

WASHER

€ 2.00

0925009001
ref: 9

CAP(OD:14)

€ 1.00

all assemblies
