CRANKCASE
DR250 1985 (F) USA (E03)

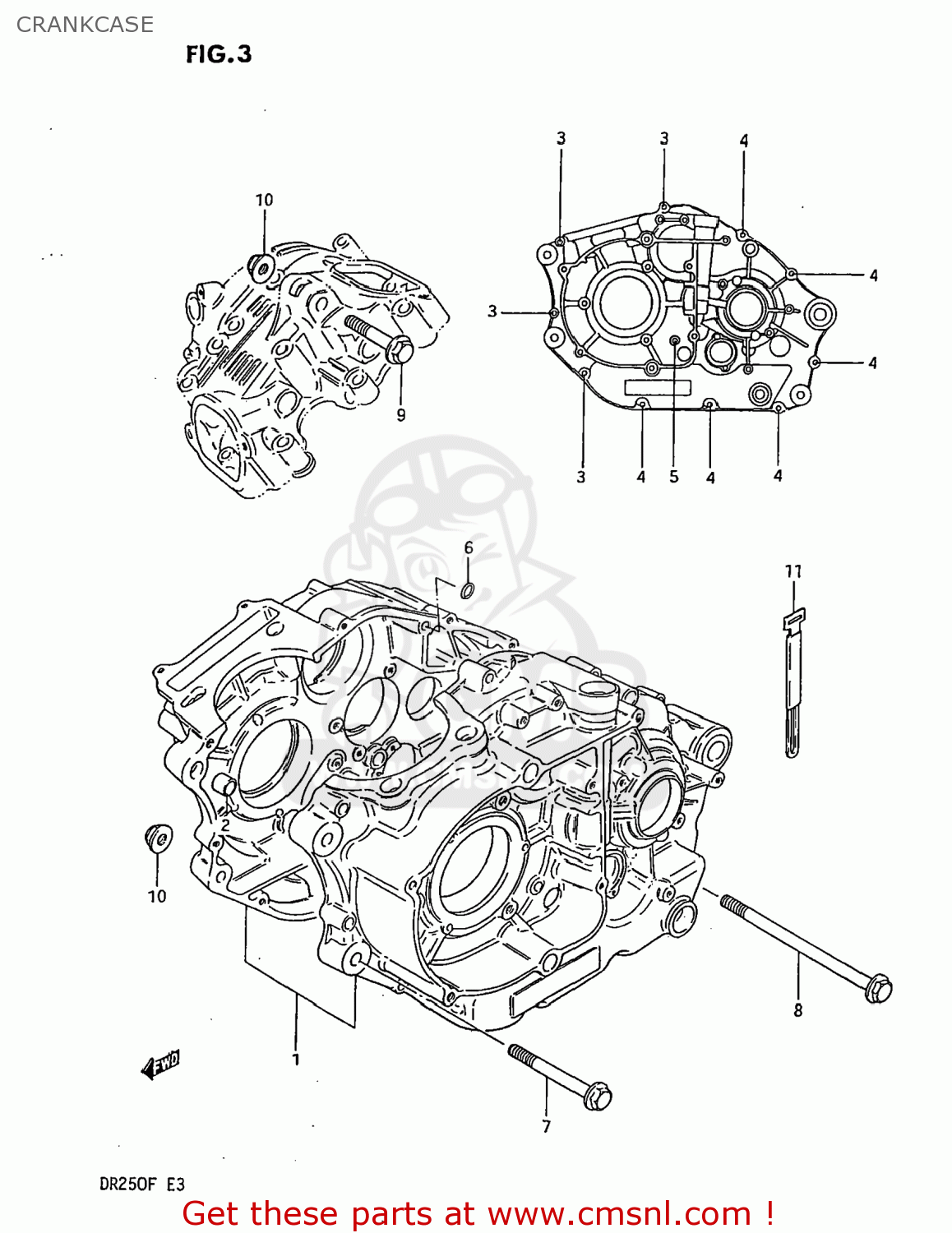

Crankcase diagram DR250 1985 (F) USA (E03)
CRANKCASE DR250 1985 (F) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1130038850
ref: 1
CRANKCASE ASSEMBLY
€ 660.50
2
0920613001
ref: 2
04211-13189
PIN
€ 2.50
3
0154706354
ref: 3
01547-0635B
BOLT 6X35
€ 3.00
4
0154706454
ref: 4
01547-0645B
BOLT
€ 3.00
5
0154706555
ref: 5
01547-0655B
BOLT (6X55)
€ 3.00
6
0928009004
ref: 6
09280-09005
O-RING
€ 4.00
7
0910308075
ref: 7
09103-08037
BOLT 8X67
€ 6.50
8
0910308080
ref: 8
09103-08139
BOLT
€ 5.50
9
0910308082
ref: 9
09103-08395
BOLT 8X50
€ 7.00
10
0831931085
ref: 10
08319-3108A
NUT
€ 2.50
