REAR SWINGING ARM
DR250 1985 (F) USA (E03)

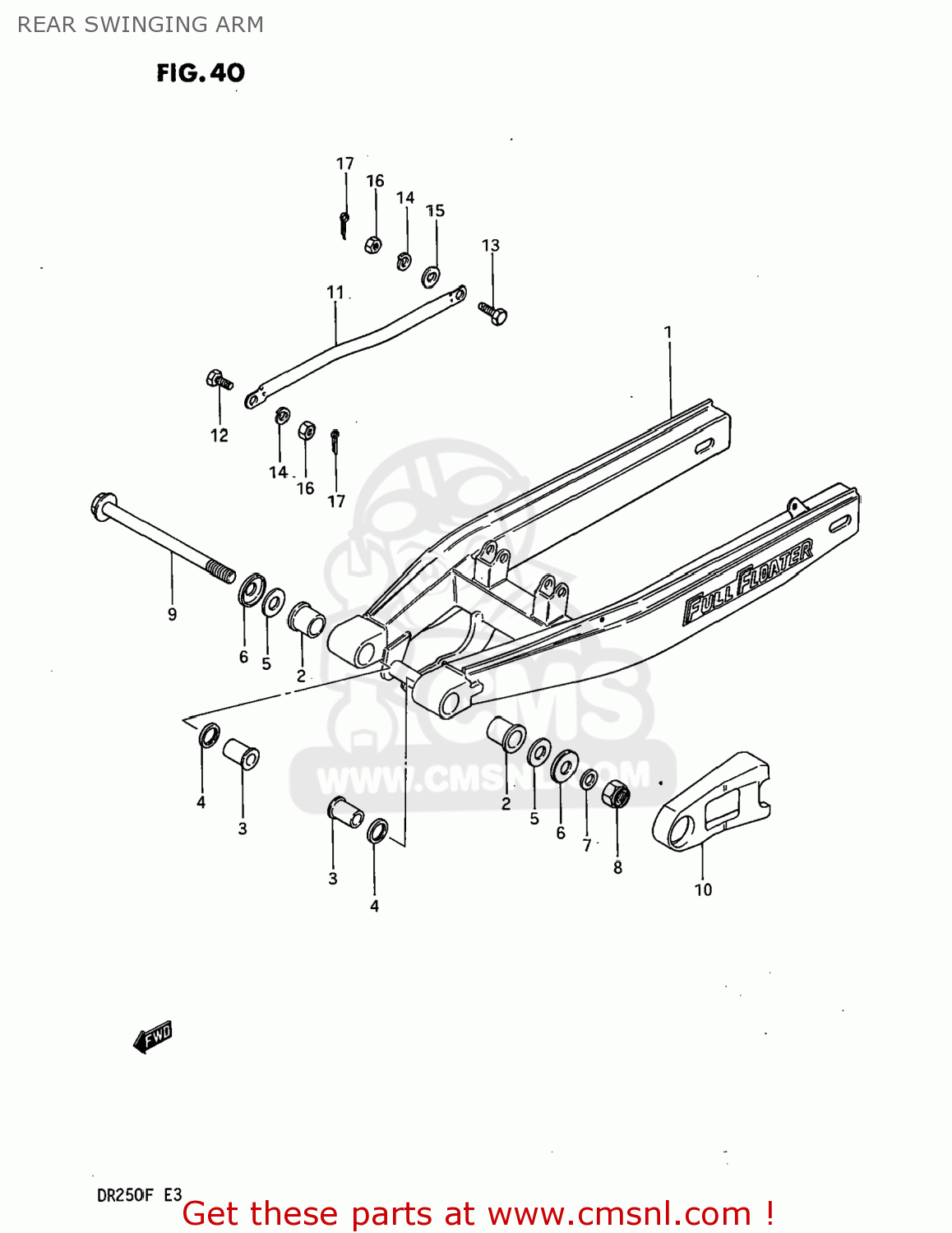

Rear swinging arm diagram DR250 1985 (F) USA (E03)
REAR SWINGING ARM DR250 1985 (F) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6100038237
ref: 1
SWING ARM ASSEMBLY,REAR
€ 222.50
2
6126138200
ref: 2
BUSHING,RR SWGARM PIVOT
€ 13.50
3
6125138200
ref: 3
SPACER,RR SWGARM PIVOT OUTER
€ 16.50
4
0928620001
ref: 4
SEAL,OIL(20X27X5)
€ 2.50
5
0821115341
ref: 5
WASHER
€ 2.00
6
6126238200
ref: 6
61262-22A00
COVER,REAR SWING ARM DUST
€ 7.50
7
0832211148
ref: 7
08322-01147
WASHER
€ 2.00
8
0831921148
ref: 8
08319-2114A
NUT 14MM
€ 3.00
9
6121138200
ref: 9
64711-26B00
SHAFT,REAR SWING ARM
€ 33.00
10
6127338211
ref: 10
BUFFER,CHAIN TOUCH DEFLECTOR
€ 17.00
11
643100531108C
ref: 11
LINK,REAR TORQUE
€ 11.50
12
0911108050
ref: 12
BOLT
€ 2.50
13
0911108013
ref: 13
BOLT(8X26.5)
€ 3.00
14
0832121088
ref: 14
08321-01087
LOCK WASHER
€ 2.00
15
0832211088
ref: 15
08322-01087
WASHER
€ 2.00
16
0914008008
ref: 16
NUT
€ 1.50
17
0411120208
ref: 17
04111-2020A
PIN 20X20
€ 1.50
