CYLINDER
DR250 1985 (F) USA (E03)

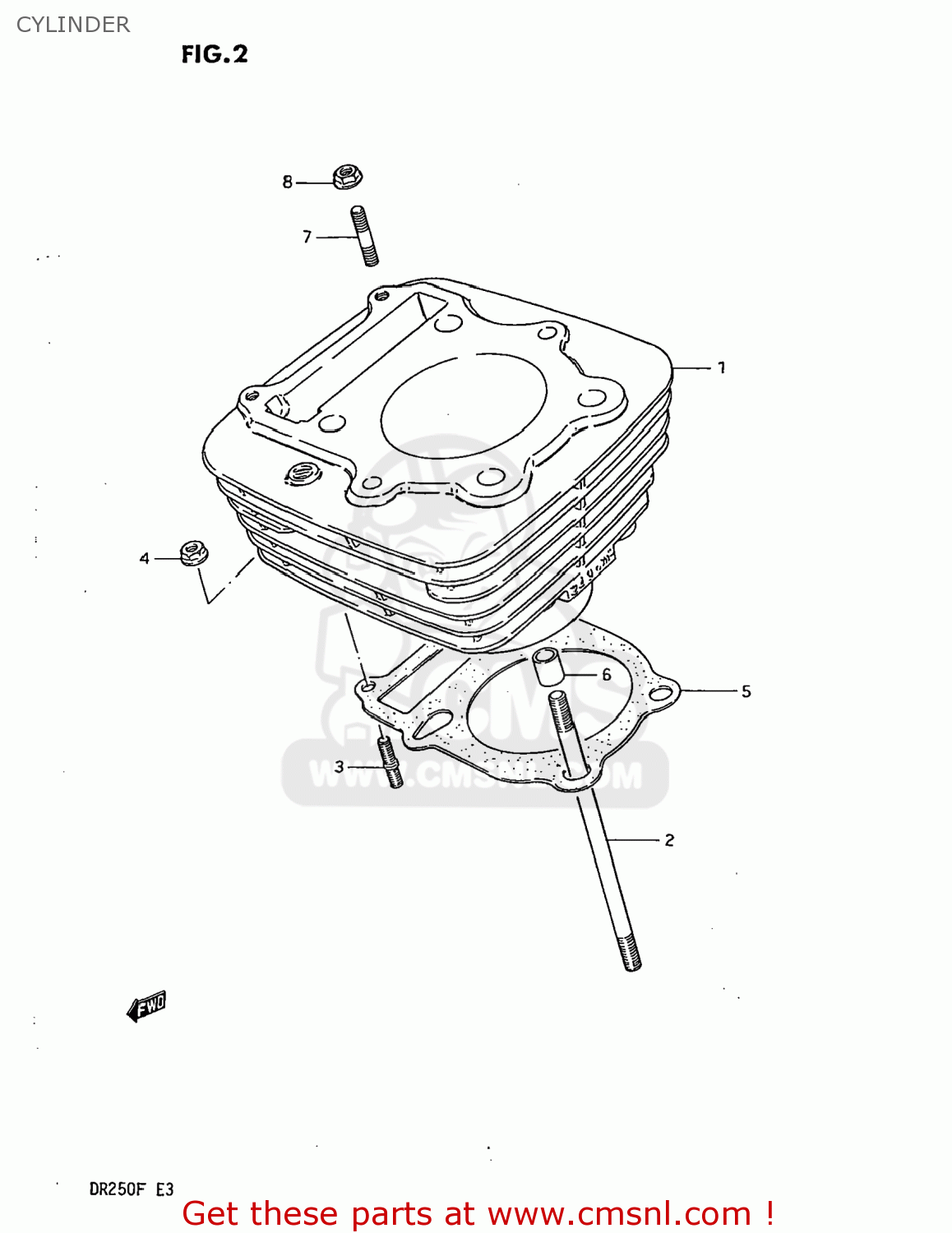

Cylinder diagram DR250 1985 (F) USA (E03)
CYLINDER DR250 1985 (F) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1121038211
ref: 1
11210-38204-0F0
CYLINDER
€ 1,003.50
2
0910810030
ref: 2
BOLT,STUD
€ 7.50
3
0142106255
ref: 3
01421-0625A
STUD 6X25
€ 2.00
4
0831616064
ref: 4
08316-1006B
NUT 6MM
€ 2.50
5
1124138202
ref: 5
11241-38301
GASKET,CYLINDER (MCA)
€ 9.50
6
0920613001
ref: 6
04211-13189
PIN
€ 2.50
7
0142106305
ref: 7
01421-0630B
BOLT (6X30)
€ 2.00
8
0831616064
ref: 8
08316-1006B
NUT 6MM
€ 2.50
