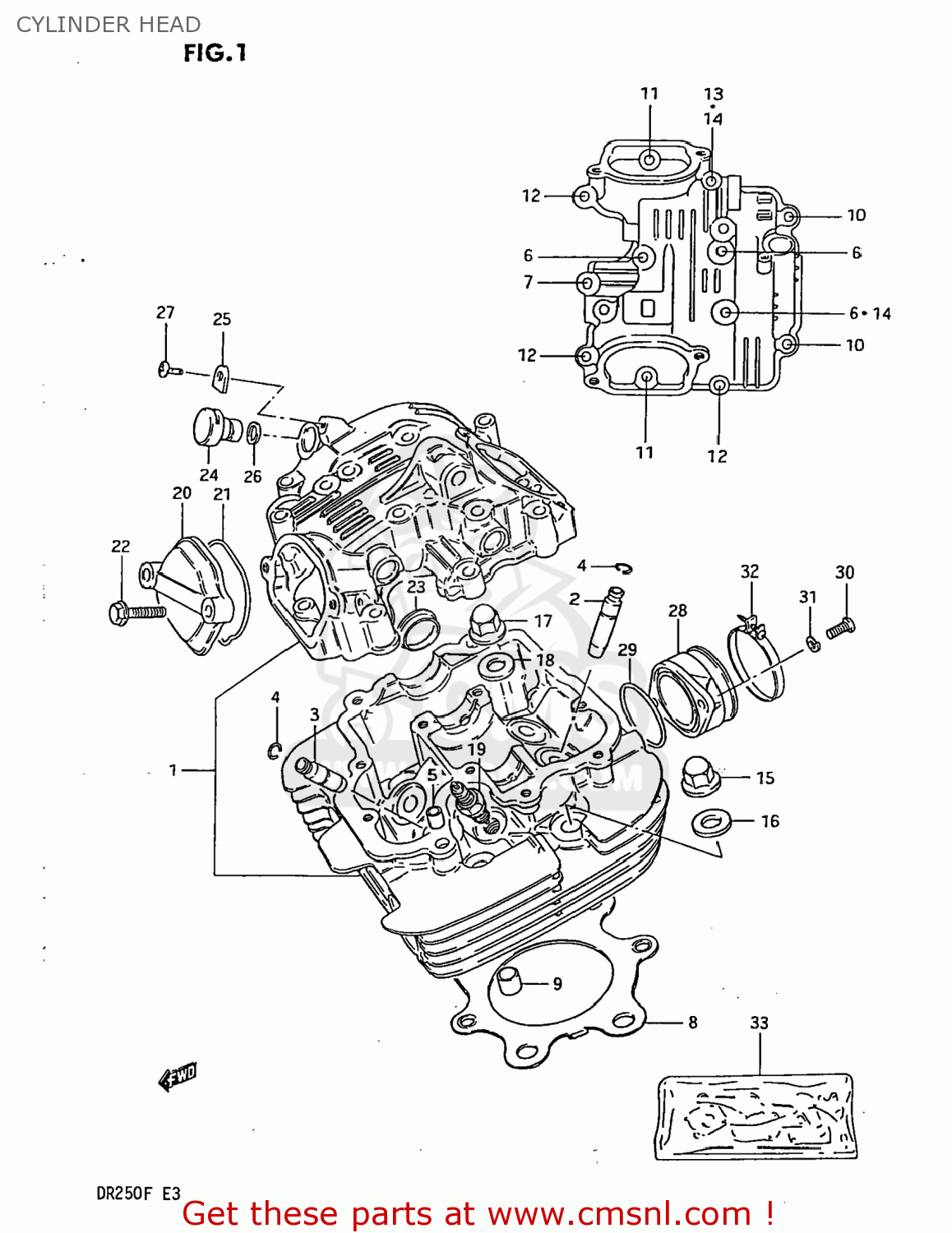

CYLINDER HEAD

ref

part #

description

quantity

1

1110038231
ref: 1

HEAD,CYLINDER

€ 591.50

2

1111538270
ref: 2

GUIDE,INTAKE VALVE

€ 25.50

3

1111505270
ref: 3

GUIDE,VALVE

€ 18.50

4

0938110004
ref: 4

RING,SNAP

€ 1.50

5

0920608001
ref: 5

PIN(6.2X8X11)

€ 2.00

6

0151706605
ref: 6
01550-0660A

BOLT ,6X60

€ 2.50

7

0151706305
ref: 7
01550-0630A

BOLT 6X30

€ 2.50

8

1114138200
ref: 8
11141-25D11

GASKET,CYLINDER HEAD (NAS)

€ 37.50

9

0920613001
ref: 9
04211-13189

PIN

€ 2.50

10

0910306053
ref: 10
09103-06167

BOLT

€ 4.50

11

0151706305
ref: 11
01550-0630A

BOLT 6X30

€ 2.50

12

0151706455
ref: 12
01550-0645A

BOLT (6X45)

€ 2.50

13

0151706605
ref: 13
01550-0660A

BOLT ,6X60

€ 2.50

14

0916806015
ref: 14
09168-06023

WASHER

€ 2.00

15

0915910033
ref: 15
09159-10026

NUT

€ 6.00

16

0916010060
ref: 16
09160-10039

WASHER (10.5X22X2.3)

€ 2.50

17

0915910026
ref: 17

NUT

€ 6.00

18

0916810017
ref: 18

GASKET(10.5X22X2) (NAS)

€ 3.50

19-1

0948200144
ref: 19-1

SPARK PLUG D8EA

€ 3.50

19-2

0948200145
ref: 19-2
09482-00223

SPARK PLUG X24ES-U

€ 3.50

20

1117538230
ref: 20
11175-38202

CAP,INSPECTION

€ 23.50

21

0928055003
ref: 21

O RING(D:2.4,ID:23)

€ 4.50

22

0151706254
ref: 22
01550-0625A

BOLT

€ 2.50

23

0924130004
ref: 23

PLUG(OD:30)

€ 6.50

24

2644245000
ref: 24

PLUG,TACH GEAR SLEEVE HOLE

€ 15.50

25

2644933000
ref: 25

PLATE,TACH DRIVE GEAR SLEEVE

€ 3.50

26

2645145000A
ref: 26

SEAL,TACHOMETER DRIVEN

€ 4.50

27

0912805101
ref: 27

SCREW(5X12)

€ 1.50

28

1311038200
ref: 28

PIPE,INTAKE

€ 38.50

29

0928040003
ref: 29
09280-40010

O-RING (D:2.4 ID:39.7)

€ 3.50

30

0211206168
ref: 30
02112-06167

SCREW

€ 2.50

31

0832121068
ref: 31
08321-01067

LOCK WASHER

€ 2.50

32

0940252306
ref: 32

CLAMP

€ 6.00

33

1140038813
ref: 33
11400-38819

GASKET SET (MCA)

€ 102.00

all assemblies
