STAND - REAR BRAKE
DR250 1985 (F) USA (E03)

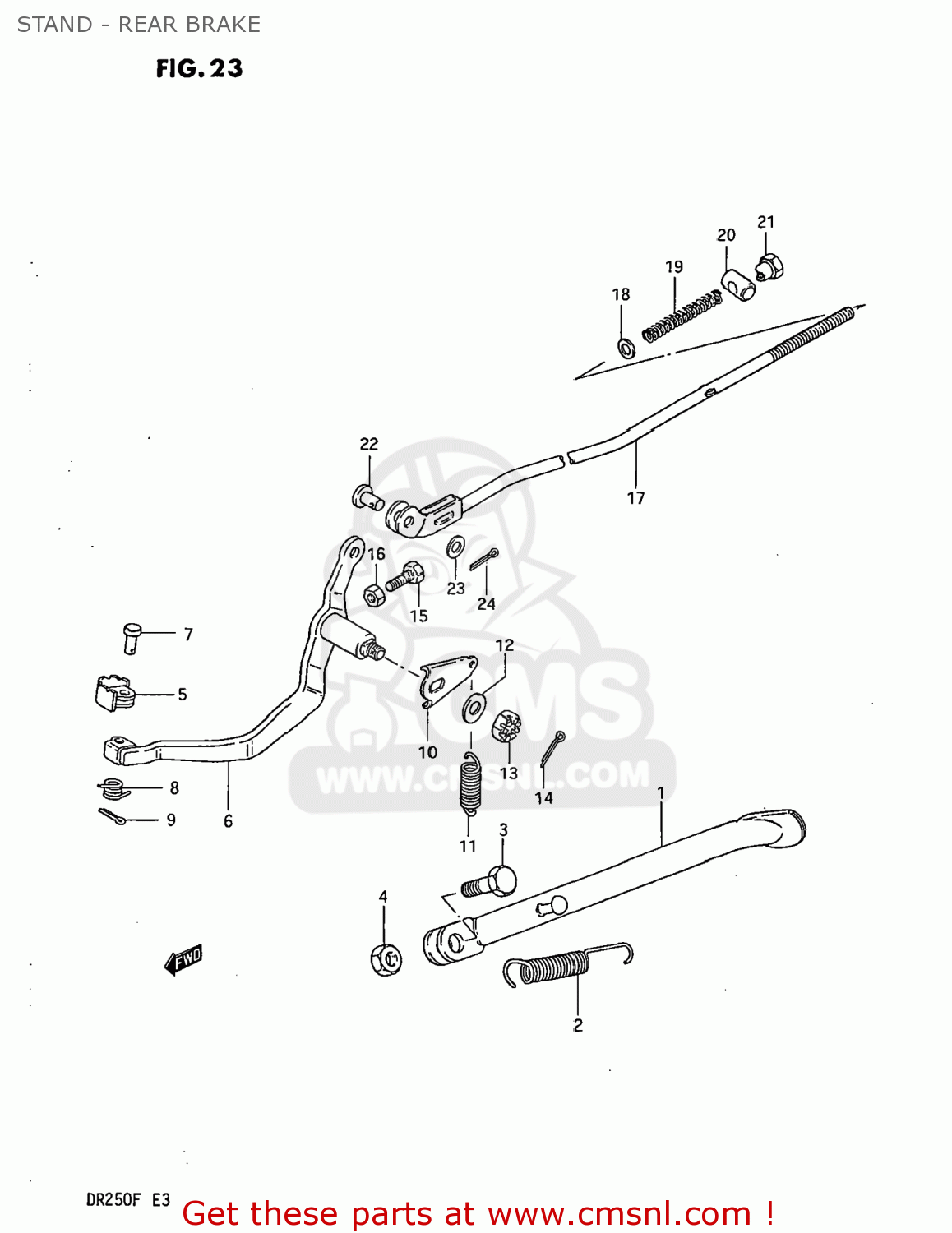

Stand - rear brake diagram DR250 1985 (F) USA (E03)
STAND - REAR BRAKE DR250 1985 (F) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
423103822019F
ref: 1
42310-14400-019
STAND,SIDE
€ 79.00
2
0944317007
ref: 2
SPRING
€ 4.50
3
0910010067
ref: 3
BOLT(10X30)
€ 3.50
4
0831022108
ref: 4
08310-00107
NUT
€ 2.50
5
4311014130
ref: 5
PEDAL,BRAKE
€ 6.00
6
4312038210
ref: 6
ARM,BRAKE PEDAL ROD
€ 40.50
7
0920006038
ref: 7
PIN
€ 2.00
8
0944411004
ref: 8
09444-11005
SPRING
€ 3.00
9
0411120158
ref: 9
04111-2015A
PIN
€ 1.50
10
4312838200
ref: 10
ARM,BRAKE RETURN SPRING
€ 3.50
11
0944314020
ref: 11
09443-14015
SPRING
€ 3.00
12
0821108202
ref: 12
WASHER
€ 1.50
13
0831441088
ref: 13
08314-4008B
NUT 8MM
€ 2.50
14
0411120208
ref: 14
04111-2020A
PIN 20X20
€ 1.50
15
0910006009
ref: 15
BOLT(6X23)
€ 1.50
16
0831011068
ref: 16
08310-00067
NUT
€ 2.50
17
4330038220
ref: 17
43300-38X50
ROD ASSEMBLY,REAR BRAKE
€ 9.00
18
0832221068
ref: 18
08322-01067
WASHER
€ 2.00
19
0944009004
ref: 19
SPRING
€ 2.00
20
0920911002
ref: 20
PIN(11X18)
€ 2.00
21
0915006009
ref: 21
09150-06010
NUT (6MM)
€ 3.50
22
0920006039
ref: 22
PIN
€ 2.50
23
0832221068
ref: 23
08322-01067
WASHER
€ 2.00
24
0411120208
ref: 24
04111-2020A
PIN 20X20
€ 1.50
