FOOTREST
DR250 1985 (F) USA (E03)

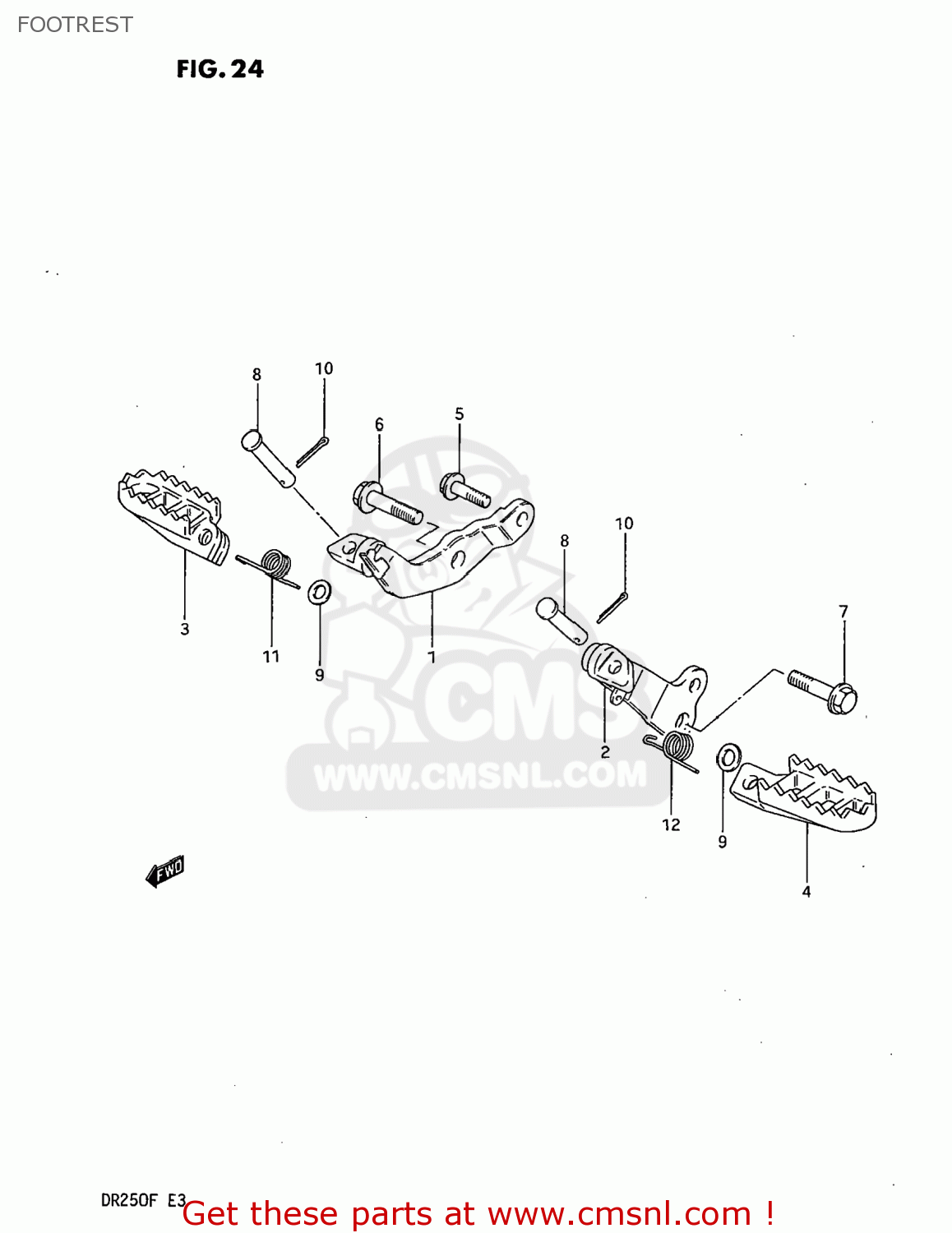

Footrest diagram DR250 1985 (F) USA (E03)
FOOTREST DR250 1985 (F) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
435103820019F
ref: 1
43510-38200-019
BAR,FRONT FOOTREST
€ 25.00
2
435203820019F
ref: 2
43520-38200-019
BAR,FRONT FOOTREST,LEFT
€ 41.50
3
435513720219F
ref: 3
43551-37202-019
FOOTREST
€ 31.00
4
435614040119F
ref: 4
43561-40401-019
FOOTREST
€ 24.50
5
0151710205
ref: 5
01550-1020A
BOLT,LOWER
€ 3.00
6
0152712305
ref: 6
BOLT, RH
€ 3.50
7
0152712255
ref: 7
01550-1225A
BOLT
€ 3.00
8
0920008035
ref: 8
09200-08064
PIN
€ 6.50
9
0832221088
ref: 9
08322-01087
WASHER
€ 2.00
10
0411120208
ref: 10
04111-2020A
PIN 20X20
€ 1.50
11
0944814022
ref: 11
SPRING
€ 2.00
12
0944814018
ref: 12
09448-14018-XC0
SPRING
€ 4.00
