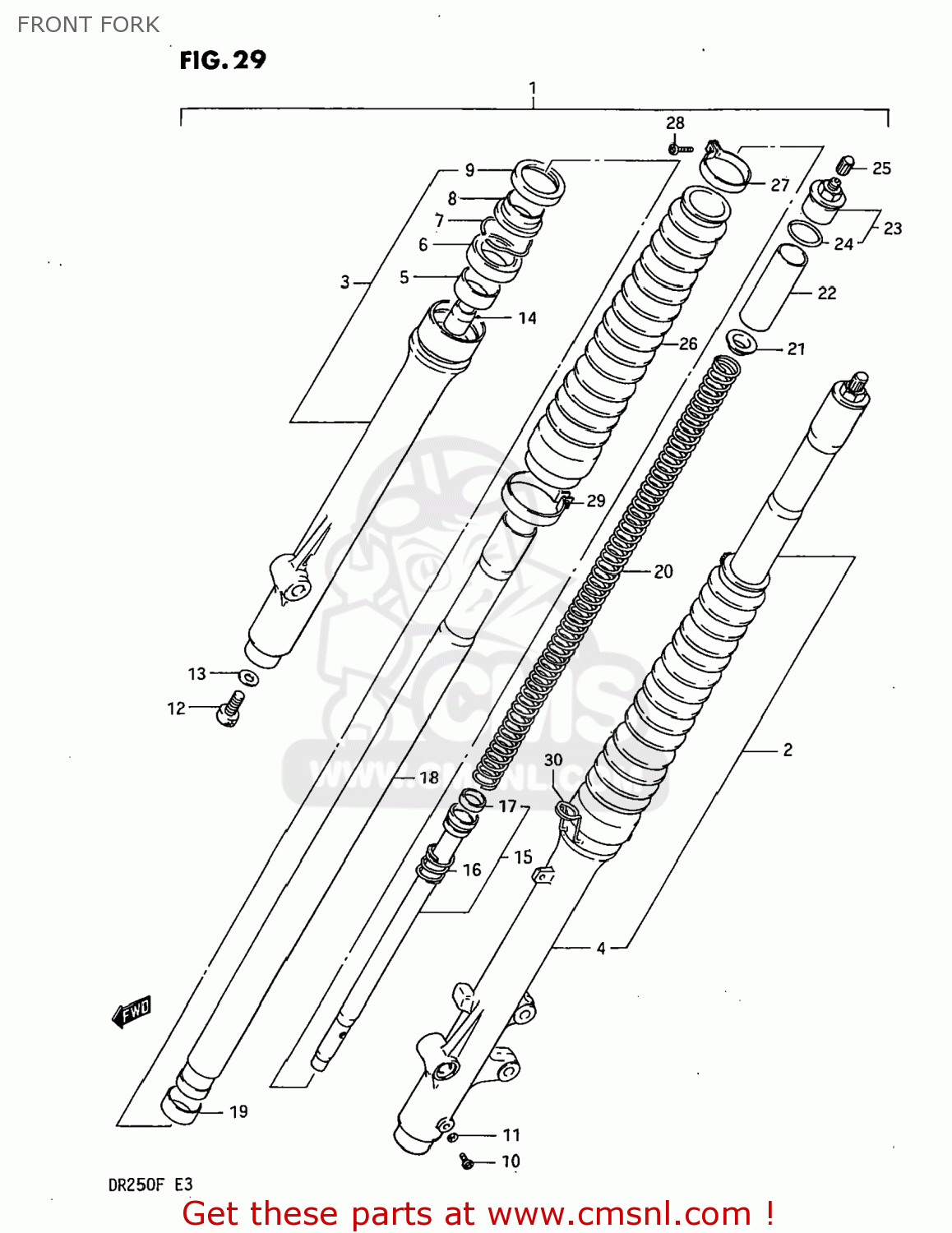

FRONT FORK

ref

part #

description

quantity

1

5110338290
ref: 1

DAMPER ASSEMBLY,RIGHT

€ 280.50

2

5110438290
ref: 2

DAMPER ASSEMBLY,LEFT

€ 298.00

3

5113038290163
ref: 3

TUBE,FORK,OUTER,RIGHT

€ 116.50

4

5114038290163
ref: 4

TUBE,FORK,LEFT,OUTER

€ 114.00

5

5116737446
ref: 5

METAL,FRONT FORK SLIDE

€ 0.00

6

5115341211
ref: 6
51153-16730

OIL SEAL,FRONT FORK

€ 28.50

7

5115630400
ref: 7

5115630400

8

5117340500
ref: 8

SEAL,DUST

€ 9.00

9

5114940500
ref: 9

CASE,DUST SEAL

€ 7.50

10

0211204087
ref: 10

SCREW

€ 1.50

11

5118303010
ref: 11

GASKET,DRAIN,PLUG (NAS)

€ 3.00

12

5114716510
ref: 12

BOLT,FORK CYLINDER(10X25)

€ 3.50

13

5114841310
ref: 13

GASKET (NAS)

€ 2.50

14

5119541210
ref: 14
51195-49071

PIECE,OIL LOCK

€ 12.00

15

5114638200
ref: 15

CYLINDER,FRONT FORK

€ 33.00

16

5117737446
ref: 16

SPRING

€ 6.50

17

5119637446
ref: 17

RING,FRONT FORK PISTON

€ 7.00

18

5111038265
ref: 18

TUBE,FORK,INNER

€ 133.50

19

5112137410
ref: 19

PISTON

€ 14.00

20

5117138200
ref: 20

SPRING,FRONT FORK

€ 18.00

21

5117238010
ref: 21

GUIDE,FRONT FORK SPRING C

€ 9.50

22

5117638215
ref: 22

COLLAR,SPRING

€ 0.00

23

5135138265
ref: 23

CAP,FR FORK INNER TUBE

€ 0.00

24

5111716310
ref: 24

O RING

€ 5.00

25

5129420400
ref: 25

CAP

€ 3.50

26

515713826519F
ref: 26
51571-38265-38K

BOOT,FRONT FORK COVER

€ 38.00

27

5157541410
ref: 27

BAND,BOOT

€ 8.00

28

0211204167
ref: 28
02112-0416A

SCREW

€ 1.00

29

5157341410
ref: 29

BAND,FRONT FORK COVER

€ 10.00

30

5157337200
ref: 30

BAND,FRONT FORK COVER

€ 0.00

all assemblies
