MAGNETO
DR250 1985 (F) USA (E03)

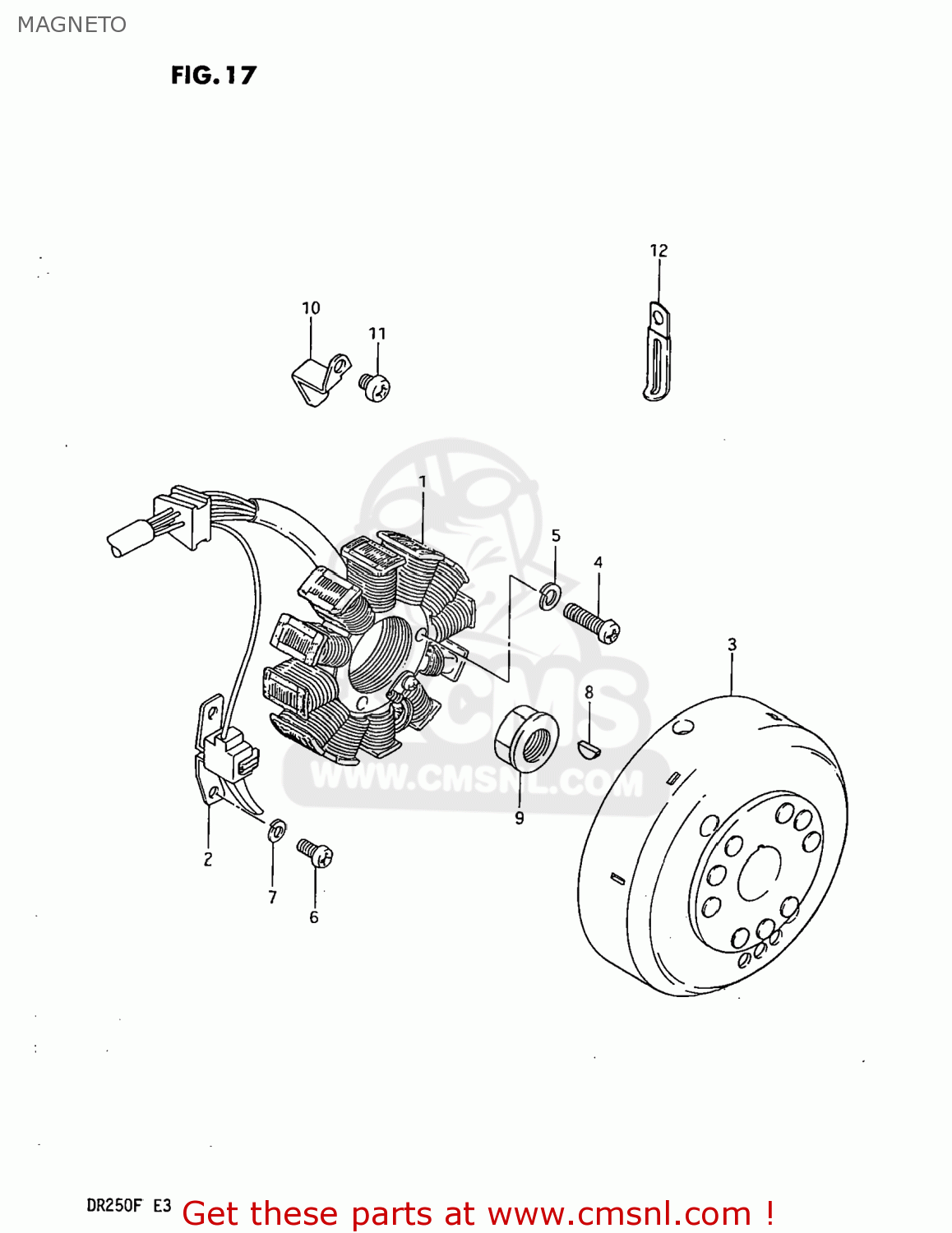

Magneto diagram DR250 1985 (F) USA (E03)
MAGNETO DR250 1985 (F) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3210138230
ref: 1
STARTER ASSY
€ 0.00
2
3215038210
ref: 2
COIL,PICK UP
€ 62.50
3
3210238210
ref: 3
ROTOR,FLYWHEEL
€ 247.00
4
0211206258
ref: 4
02112-06257
SCREW
€ 2.00
5
0832121068
ref: 5
08321-01067
LOCK WASHER
€ 2.50
6
0211205108
ref: 6
02112-05107
SCREW
€ 2.00
7
0832121058
ref: 7
08321-0105A
LOCK WASHER
€ 2.00
8
0834131049
ref: 8
09420-04008
KEY 4MM
€ 3.50
9
3179249200
ref: 9
NUT,GENERATOR ROTOR
€ 10.00
10
3237138200
ref: 10
CLAMP,MAGNETO LEAD WIRE
€ 0.00
11
0211206088
ref: 11
02112-06087
SCREW
€ 2.00
12
0940406401
ref: 12
09404-06432
CLAMP L:35
€ 2.50
