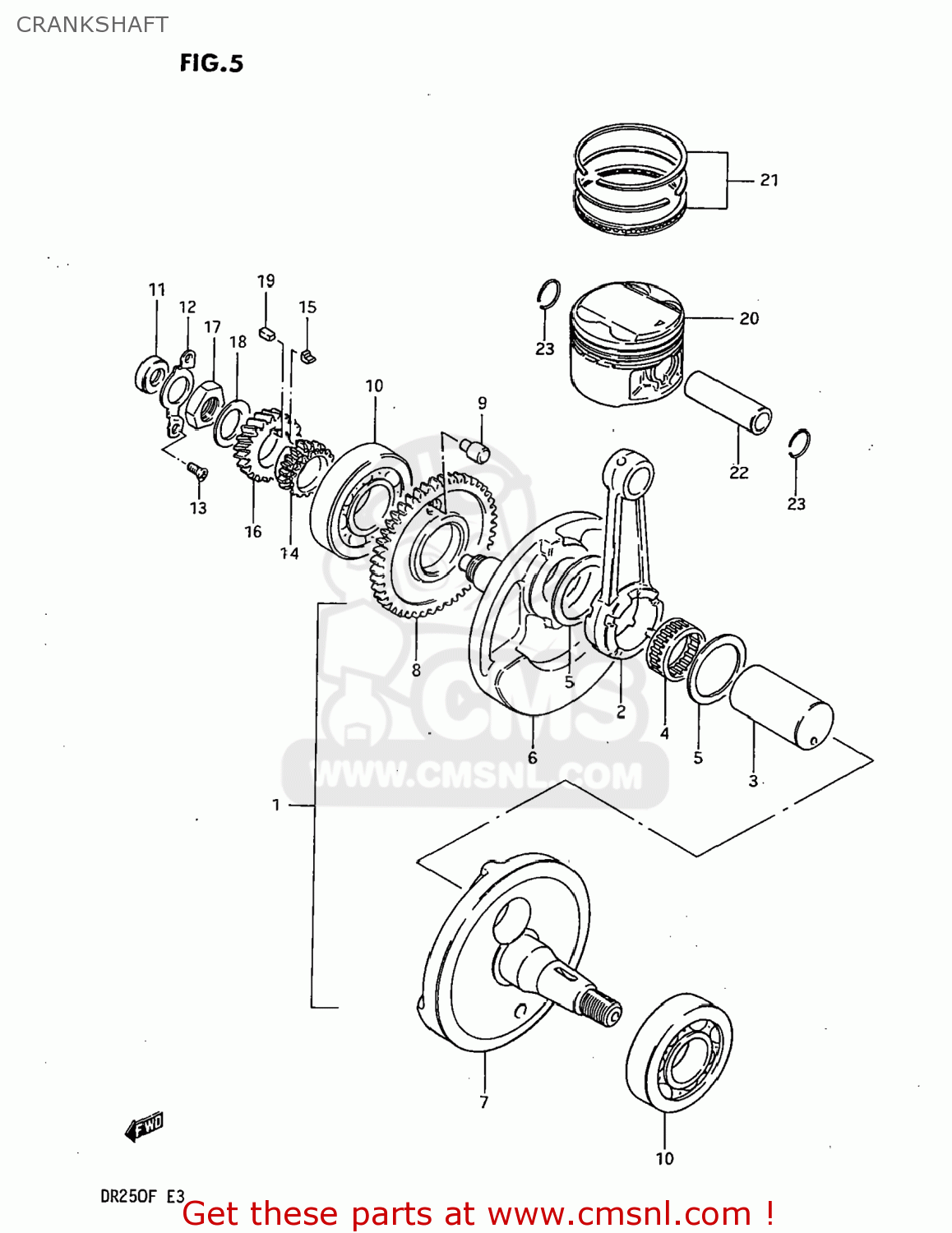

CRANKSHAFT

ref

part #

description

quantity

1

1220038201
ref: 1

CRANKSHAFT ASSEMBLY

€ 561.00

2

1216138201
ref: 2

ROD,CONNECTING

€ 129.50

3

1221138202
ref: 3
12211-38211

PIN,CRANK

€ 38.00

4

0926331007
ref: 4
09263-31004

BEARING

€ 53.00

5

0916031002
ref: 5

WASHER(31X48.5X1)

€ 7.00

6

1222138200
ref: 6

CRANKSHAFT,R

€ 196.00

7

1226138200
ref: 7

CRANKSHAFT,LEFT

€ 148.00

8

1266138201
ref: 8
12661-38202

GEAR,CRANK BALANCER DRIVE

€ 128.00

9

0920912006
ref: 9

PIN

€ 6.50

10

0926230070
ref: 10
09262-30077

BEARING

€ 47.50

11

0928214001
ref: 11

SEAL,OIL(14X26X6)

€ 38.00

12

1254838200
ref: 12

RETAINER,CRANKSHAFT BEARING,R

€ 4.50

13

0212205108
ref: 13
02122-05107

SCREW

€ 1.00

14

1273138200
ref: 14

SPROCKET,CAM CHAIN DRIVE(NT:21

€ 36.00

15

1274932400
ref: 15

KEY,SPROCKET

€ 13.50

16

2111138200
ref: 16

GEAR,PRIMARY DRIVE NO.21

€ 62.00

17

0914020008
ref: 17
09140-20013

NUT (20MM)

€ 4.00

18

0916420003
ref: 18

WASHER

€ 2.50

19

0942107002
ref: 19

KEY

€ 4.00

20-1

1211138201
ref: 20-1
12111-38201-0F0

PISTON (72.00MM)

€ 76.00

20-2

1211138201050
ref: 20-2
12100-38200-050

PISTON

€ 125.00

20-3

1211138201100
ref: 20-3
12100-38200-100

PISTON

€ 101.50

21-1

1214049221
ref: 21-1
12140-49270

RING SET,PISTON

€ 67.00

21-2

1214049221050
ref: 21-2
12140-49270-050

RING SET,PISTON (OS:0.5)

€ 59.00

21-3

1214049221100
ref: 21-3

RING SET,PISTON (OS:1.0)

€ 38.50

22

1215115501
ref: 22

PIN,PISTON

€ 15.00

23

0938118002
ref: 23

CIRCLIP

€ 1.50
