FRONT BRAKE HOSE (MODEL F/G/H)

DR250S 1986 (G) (E01 E04 E15 E18 E21 E22 E24 E39)

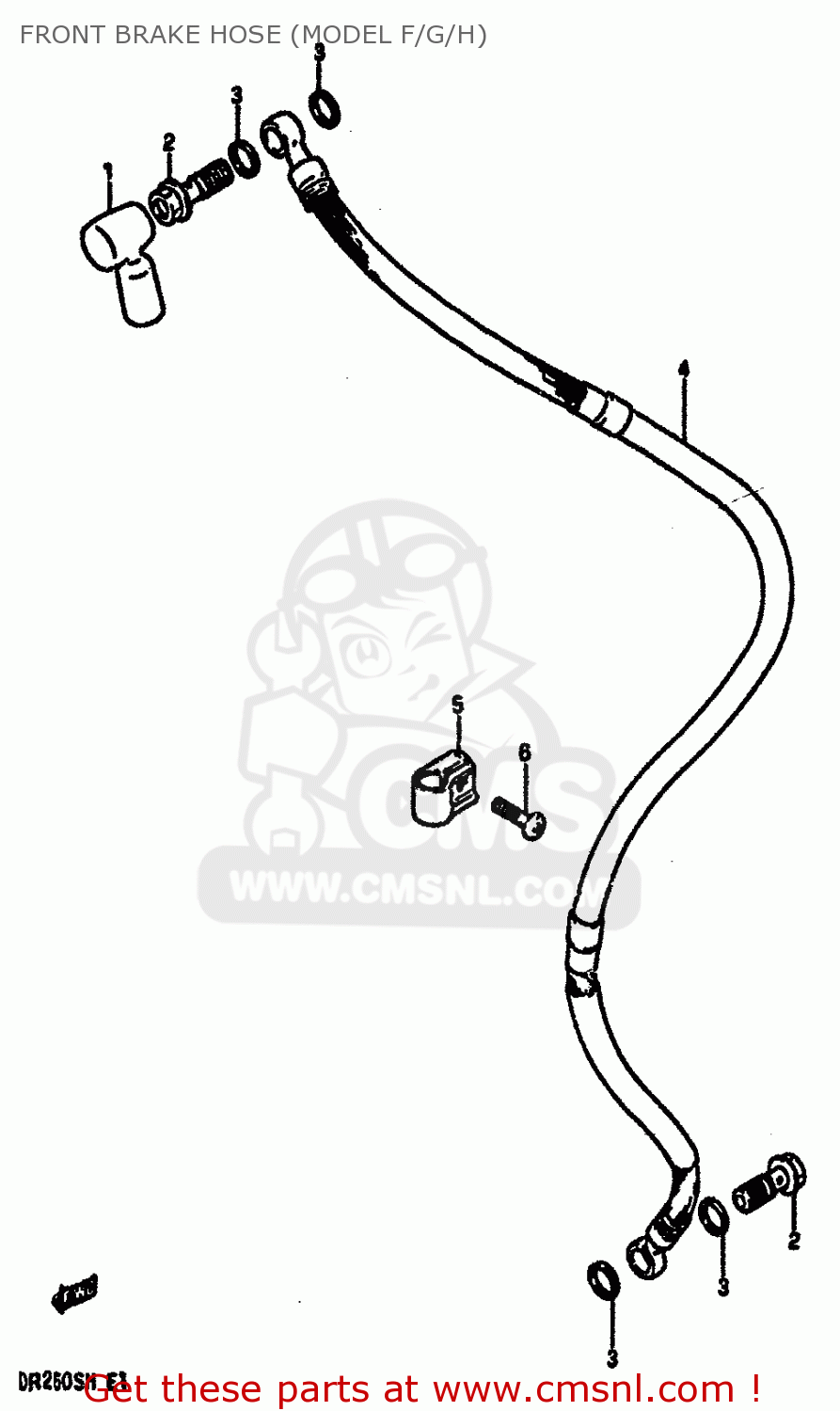

Front brake hose (model f/g/h) diagram DR250S 1986 (G) (E01 E04 E15 E18 E21 E22 E24 E39)

FRONT BRAKE HOSE (MODEL F/G/H) DR250S 1986 (G) (E01 E04 E15 E18 E21 E22 E24 E39)

FRONT BRAKE HOSE (MODEL F/G/H) DR250S 1986 (G) (E01 E04 E15 E18 E21 E22 E24 E39)

prices are in EUR

ref

part #

description

quantity

1

5971104700
ref: 1

BOOT,MASTER CYLINDER

€ 14.50

2

0936010017
ref: 2

BOLT UNION

€ 6.50

3

0916110009
ref: 3

WASHER(10X15X1.5)

€ 2.00

4

5948038201
ref: 4

HOSE BRAKE

€ 18.00

5

5862107A10
ref: 5

CLAMP,BRAKE HOSE

€ 3.50

6

0211206167
ref: 6

SCREW

€ 2.50
