REAR SWINGING ARM (E1,E24)

DR250S 1986 (G) (E01 E04 E15 E18 E21 E22 E24 E39)

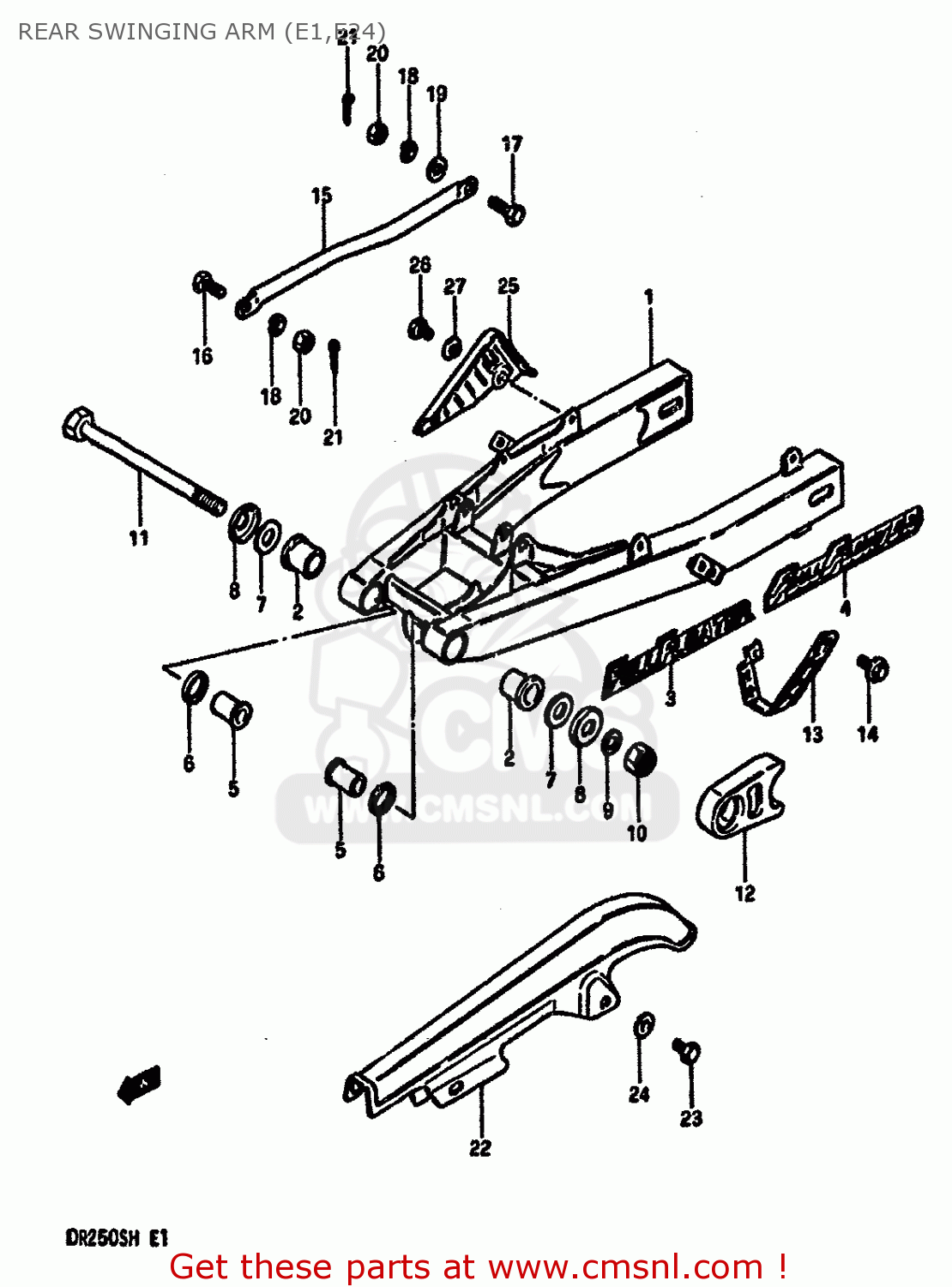

Rear swinging arm (e1,e24) diagram DR250S 1986 (G) (E01 E04 E15 E18 E21 E22 E24 E39)

REAR SWINGING ARM (E1,E24) DR250S 1986 (G) (E01 E04 E15 E18 E21 E22 E24 E39)
REAR SWINGING ARM (E1,E24) DR250S 1986 (G) (E01 E04 E15 E18 E21 E22 E24 E39)
REAR SWINGING ARM (E1,E24) DR250S 1986 (G) (E01 E04 E15 E18 E21 E22 E24 E39)
prices are in EUR
ref
part #
description
quantity
1-1
610003827508C
ref: 1-1
MODEL E/F
SWINGING ARM,REAR (GOLD)
€ 0.00
1-2
610003890013L
ref: 1-2
MODEL G/H
SWINGING ARM,REAR (SILVER)
610003890013L
€ 471.50
2
6126138200
ref: 2
BUSHING,RR SWGARM PIVOT
6126138200
€ 13.50
3
683810520097J
ref: 3
MODEL E/F
EMBLEM,SWING ARM
683810520097J
€ 6.00
4
6838134A1097J
ref: 4
MODEL G/H
68381-34A10-97J
€ 0.00
5
6125138200
ref: 5
SPACER,RR SWGARM PIVOT OUTER
6125138200
€ 16.50
6
0928620001
ref: 6
SEAL,OIL(20X27X5)
0928620001
€ 2.50
7
0821115341
ref: 7
WASHER
0821115341
€ 2.00
8
6126238200
ref: 8
COVER,REAR SWING ARM DUST
€ 7.50
9
0832211148
ref: 9
WASHER
0832211148
€ 2.00
10
0831921148
ref: 10
NUT 14MM
0831921148
€ 3.00
11
6121138200
ref: 11
SHAFT,REAR SWING ARM
€ 33.00
12
6127338200
ref: 12
BUFFER,CHAIN TOUCH DEFLECTOR
6127338200
€ 9.00
13
6134130501
ref: 13
GUIDE,DRIVE CHAIN
6134130501
€ 13.00
14
0151708125
ref: 14
BOLT
0151708125
€ 3.50
15-1
643113100108C
ref: 15-1
MODEL E/F
LINK,REAR TORQUE
€ 15.00
15-2
643113100113L
ref: 15-2
MODEL G/H
TORQUE LINK,REAR BRAKE
€ 28.00
16
0911108012
ref: 16
BOLT(8X22.5)
0911108012
€ 3.00
17
0911108013
ref: 17
BOLT(8X26.5)
0911108013
€ 3.00
18
0832121088
ref: 18
LOCK WASHER
0832121088
€ 2.00
19
0832211088
ref: 19
WASHER
0832211088
€ 2.00
20
0914008008
ref: 20
NUT
0914008008
€ 1.50
21
0411120208
ref: 21
PIN 20X20
0411120208
€ 1.50
22
6131138203
ref: 22
CASE,CHAIN
6131138203
€ 35.00
23
0910006092
ref: 23
BOLT 6X8
€ 2.50
24
0916906026
ref: 24
WASHER
0916906026
€ 2.00
25
6139138200
ref: 25
GUARD,PILLION FOOT
€ 0.00
26
0910006092
ref: 26
BOLT 6X8
€ 2.50
27
0916906026
ref: 27
WASHER
0916906026
€ 2.00
