TURN SIGNAL LAMP (E1,E4,E6,E15,E21,E24,E25,E41)

DR250S 1986 (G) (E01 E04 E15 E18 E21 E22 E24 E39)

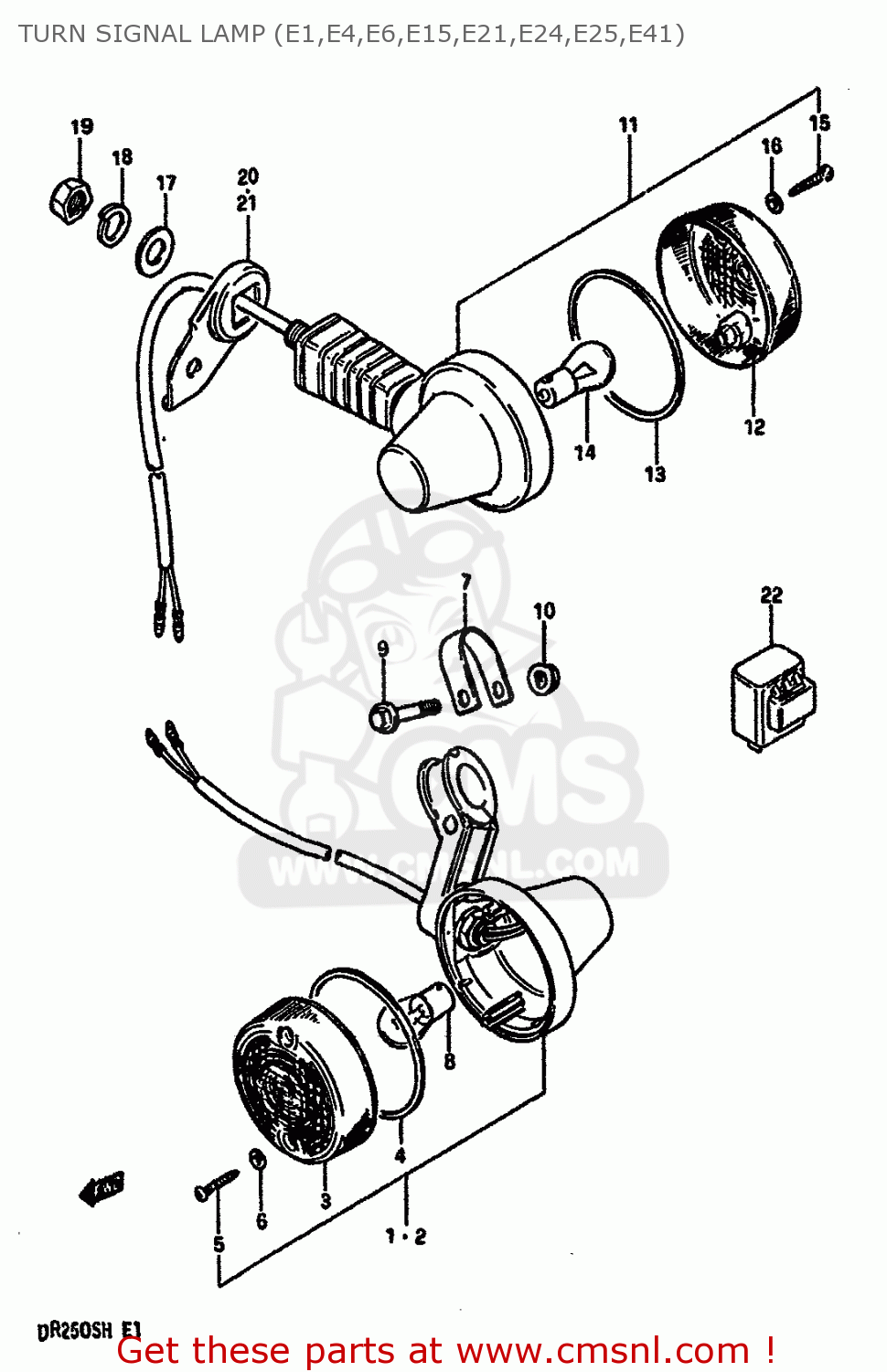

Turn signal lamp (e1,e4,e6,e15,e21,e24,e25,e41) diagram DR250S 1986 (G) (E01 E04 E15 E18 E21 E22 E24 E39)

TURN SIGNAL LAMP (E1,E4,E6,E15,E21,E24,E25,E41) DR250S 1986 (G) (E01 E04 E15 E18 E21 E22 E24 E39)
TURN SIGNAL LAMP (E1,E4,E6,E15,E21,E24,E25,E41) DR250S 1986 (G) (E01 E04 E15 E18 E21 E22 E24 E39)
TURN SIGNAL LAMP (E1,E4,E6,E15,E21,E24,E25,E41) DR250S 1986 (G) (E01 E04 E15 E18 E21 E22 E24 E39)
prices are in EUR
ref
part #
description
quantity
1
3560138210999
ref: 1
LAMP ASSEMBLY,FRONT TURN SIGNAL
€ 32.50
2
3560238210999
ref: 2
LAMP ASSEMBLY,FRONT TURN SIGNAL
3560238210999
€ 50.00
3
3561248530
ref: 3
LENS
3561248530
€ 7.50
4
3561328620
ref: 4
GASKET (NAS)
3561328620
€ 7.00
5
0321104258
ref: 5
SCREW TAPP.
0321104258
€ 2.00
6
3562743010
ref: 6
GASKET (NAS)
3562743010
€ 2.00
7
3561605210
ref: 7
PLATE
3561605210
€ 5.50
8-1
0947106011
ref: 8-1
E1,E6,E24,E41
BULB(6V17W,STANLEY,A4513A)
0947106011
€ 9.50
8-2
0947112056
ref: 8-2
E4,E15,E21,E25
BULB 12V 21W
0947112056
€ 5.00
9
0910305003
ref: 9
BOLT 5X42
0910305003
€ 2.50
10
0831616055
ref: 10
NUT ,5MM
€ 2.00
11-1
3560338201999
ref: 11-1
E1,E6,E24,E41
LAMP ASSEMBLY,REAR TURN SIGNAL
3560338201999
€ 60.50
11-2
3560338221
ref: 11-2
E4,E15,E21,E25
LAMP, REAR TURN SIGNAL
3560338221
€ 68.50
12-1
3561248530
ref: 12-1
E1,E6,E24,E41
LENS
3561248530
€ 7.50
12-2
3561248510
ref: 12-2
E4,E15,E21,E25
LENS
3561248510
€ 10.50
13
3561328620
ref: 13
GASKET (NAS)
3561328620
€ 7.00
14-1
0947106011
ref: 14-1
E1,E6,E24,E41
BULB(6V17W,STANLEY,A4513A)
0947106011
€ 9.50
14-2
0947112056
ref: 14-2
E4,E15,E21,E25
BULB 12V 21W
0947112056
€ 5.00
15
0321104258
ref: 15
SCREW TAPP.
0321104258
€ 2.00
16
3562743010
ref: 16
GASKET (NAS)
3562743010
€ 2.00
17
0916012048
ref: 17
WASHER (12.5X26X1.6)
0916012048
€ 2.00
18
0832121125
ref: 18
WASHER
€ 2.50
19
0831012125
ref: 19
NUT 12MM
€ 2.50
20
3562138201
ref: 20
BRACKET,REAR TURN SIGNAL LAMP
3562138201
€ 2.50
21
3564138201
ref: 21
BRACKET,RR TURNSIGNAL LAMP,L
3564138201
€ 3.00
22-1
3861005200
ref: 22-1
E1,E6,E24,E41
RELAY,TURN SIGNAL
3861005200
€ 46.50
22-2
3861031310
ref: 22-2
E4,E15,E21,E25
RELAY ASSEMBLY,TURN SIGNAL
€ 54.50
